Just thought I'd chuck a couple more pic's of the advancements as of today.




Any thoughts would be appreciated, mind you there isn't a lot showing up the pole at this point.
Ron

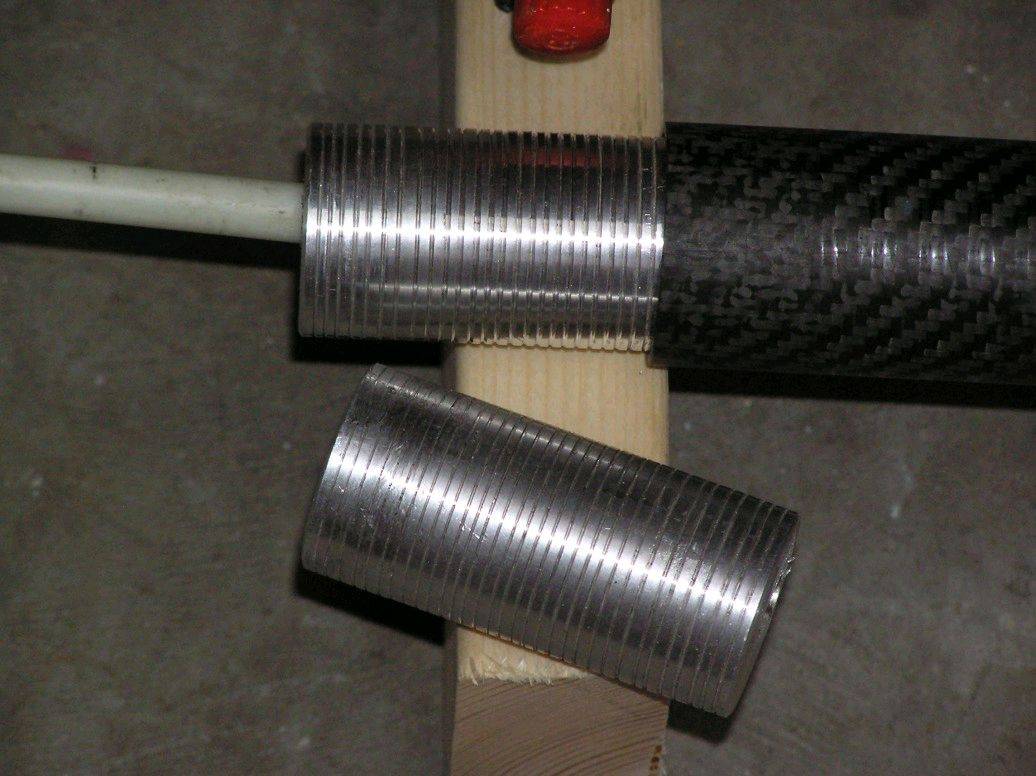

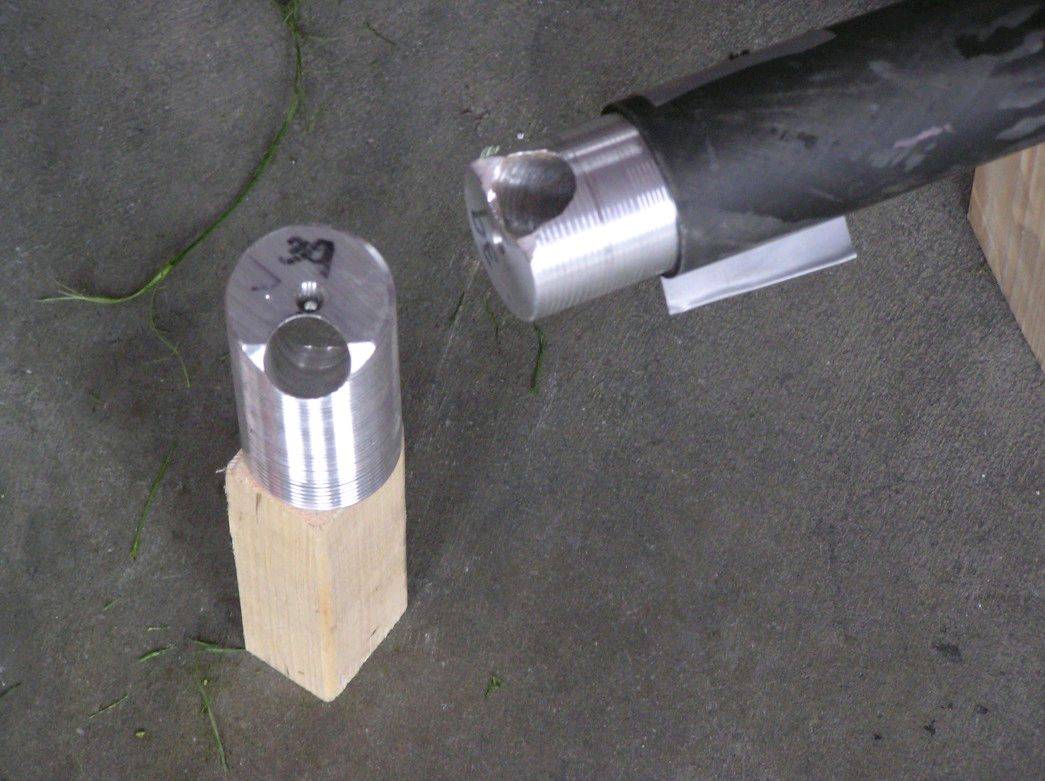

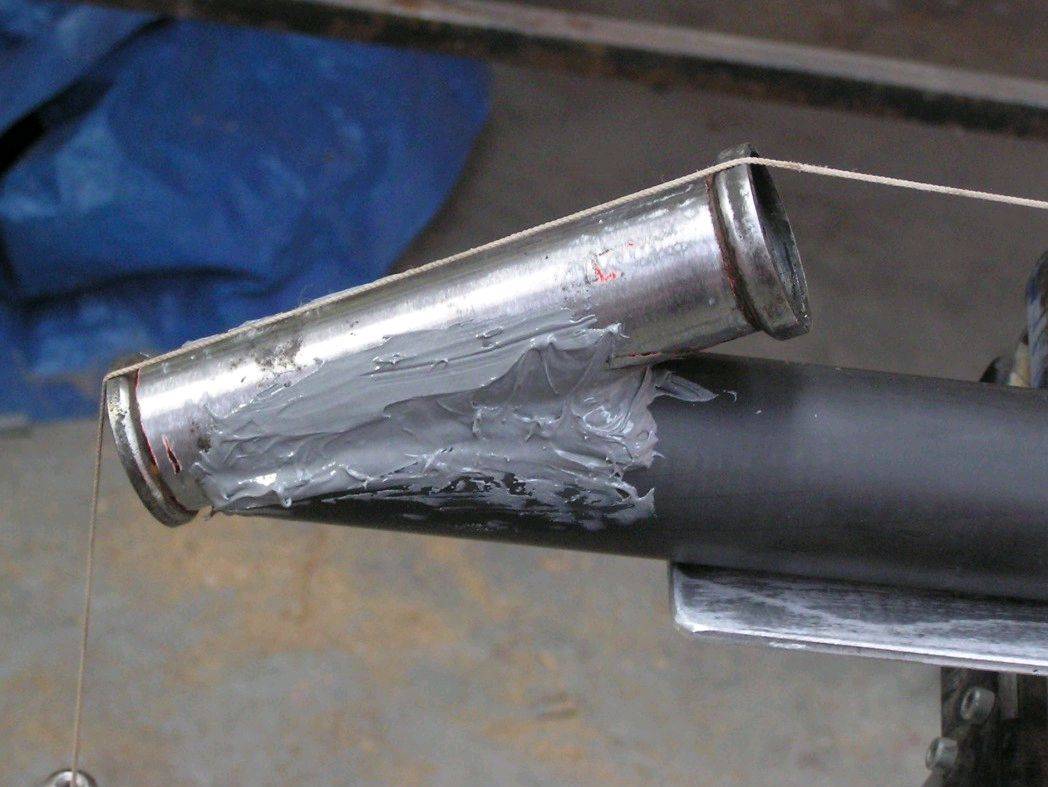

Hi Ron, are the axle tubes a 'glass derivative? You might want to soften the edges of your axle plugs somewhat, ie radius the inboard edge. There is a rather large "stress riser" with an abrupt cut off as they seem to be from the photos. Could give a bit of a cutting edge into the tubes.
Nicely done tho!

Thanks Guys,

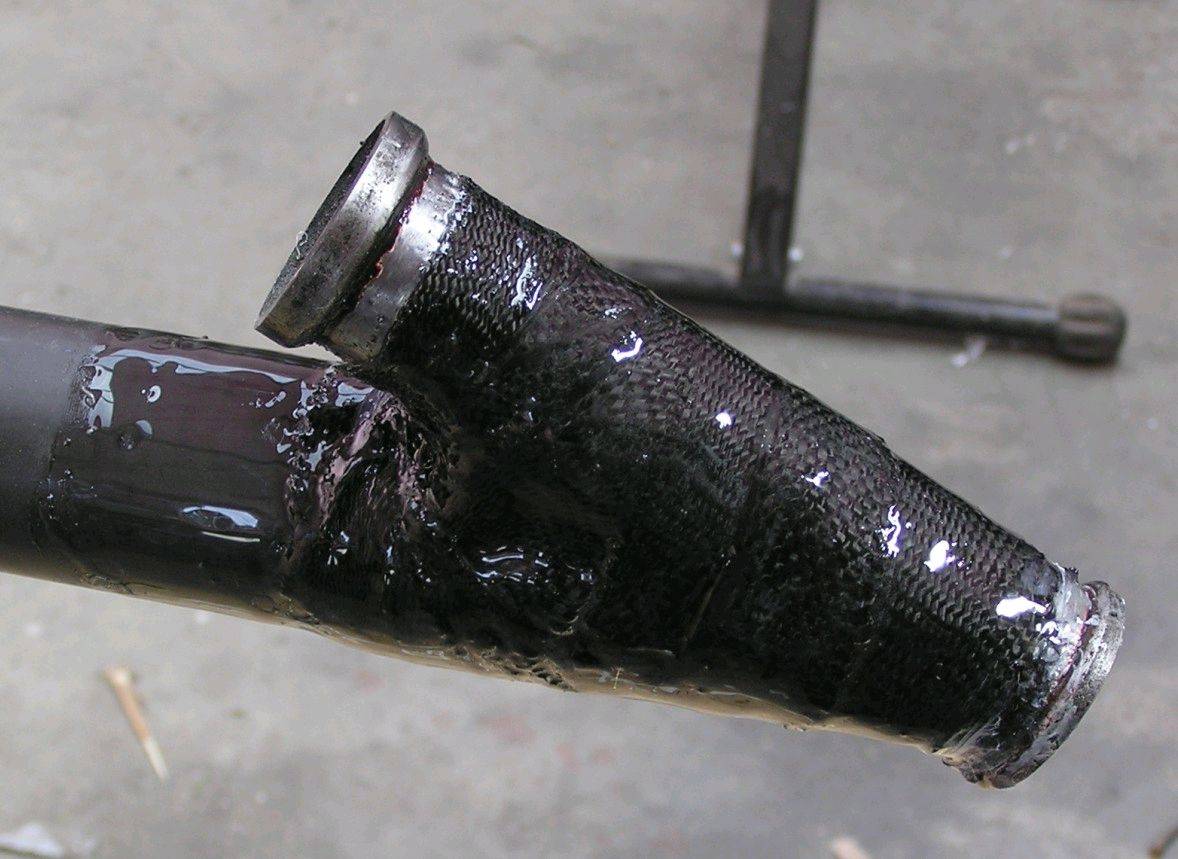

Yes! The Axles are Carbon Fiber Windsurfer Masts that managed to bust. Keep in mind that these Axles are Sleeved into the Spine "Y" housing with the section between sleeves, about 150mm between free floating.

Giving the Final Wheel Alignment some thought, a little Tow-In might be wise. Around 10/15mm over 5mtrs, may-be? Any thoughts out there??
Ron

Right. Here are some up dates on the Machines.
Firstly They are named prior to birth. The Pac' Mag' is now known as "Occum's Razor"
And the Mini is known as "Schrodinger's Cat" at the moment Occum's Razor is at a stand still awaiting a seating Capsule and some parts. However Schrodinger's Cat has advanced a little.

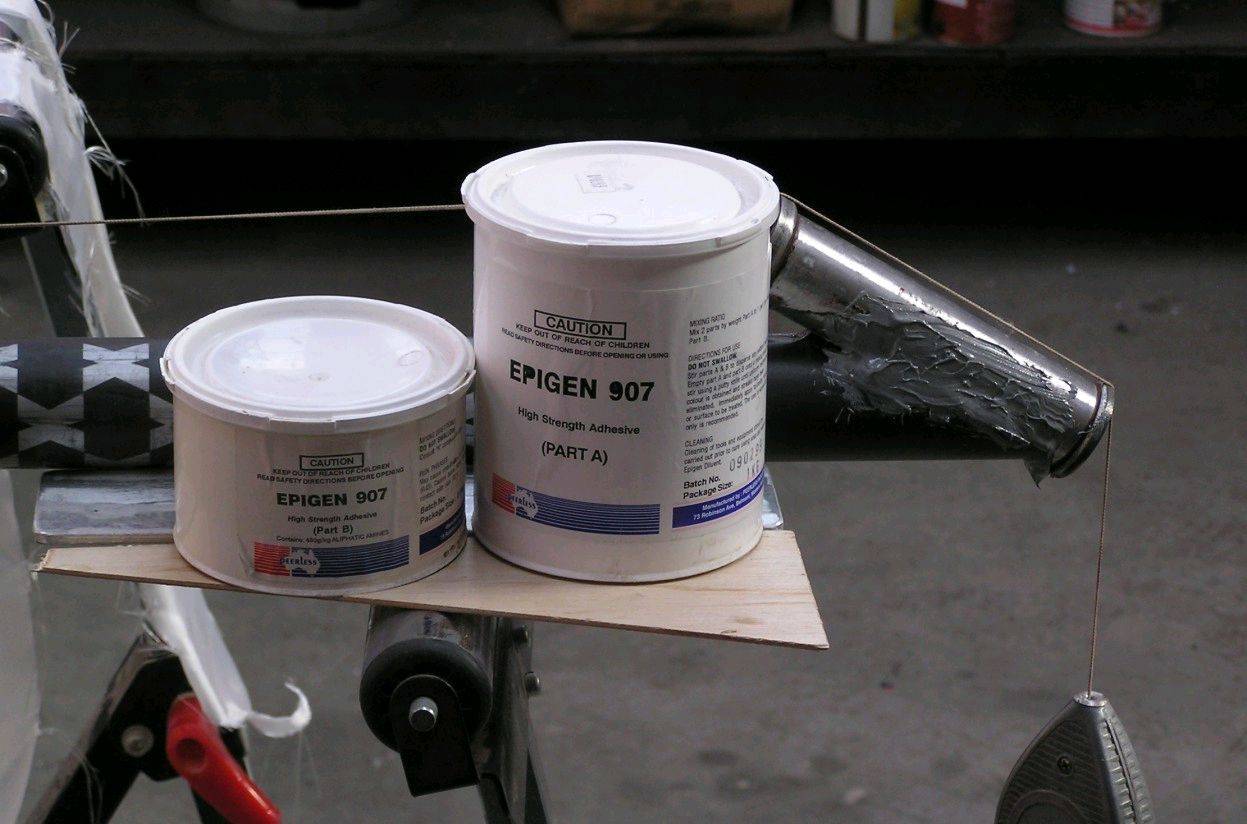

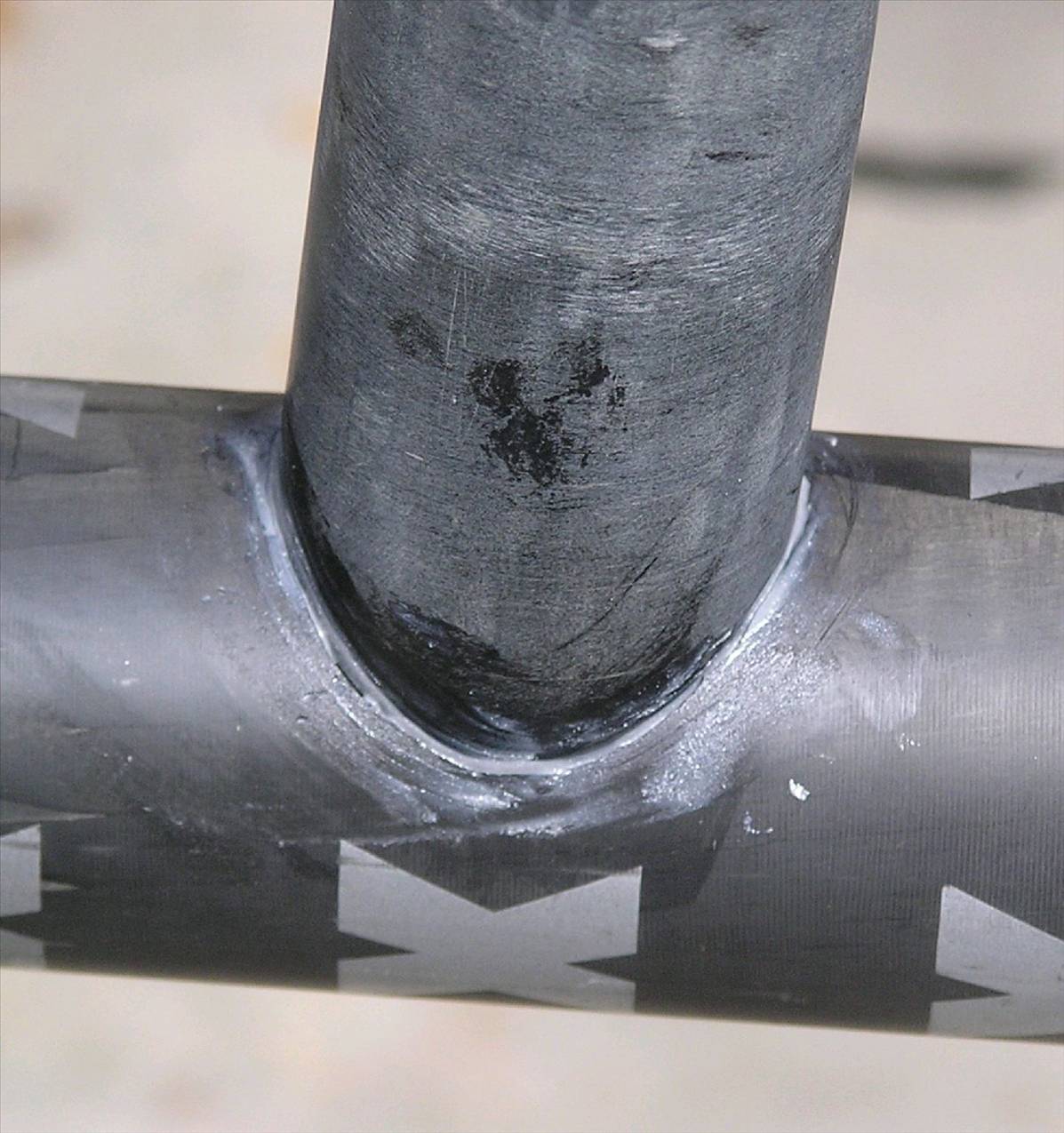

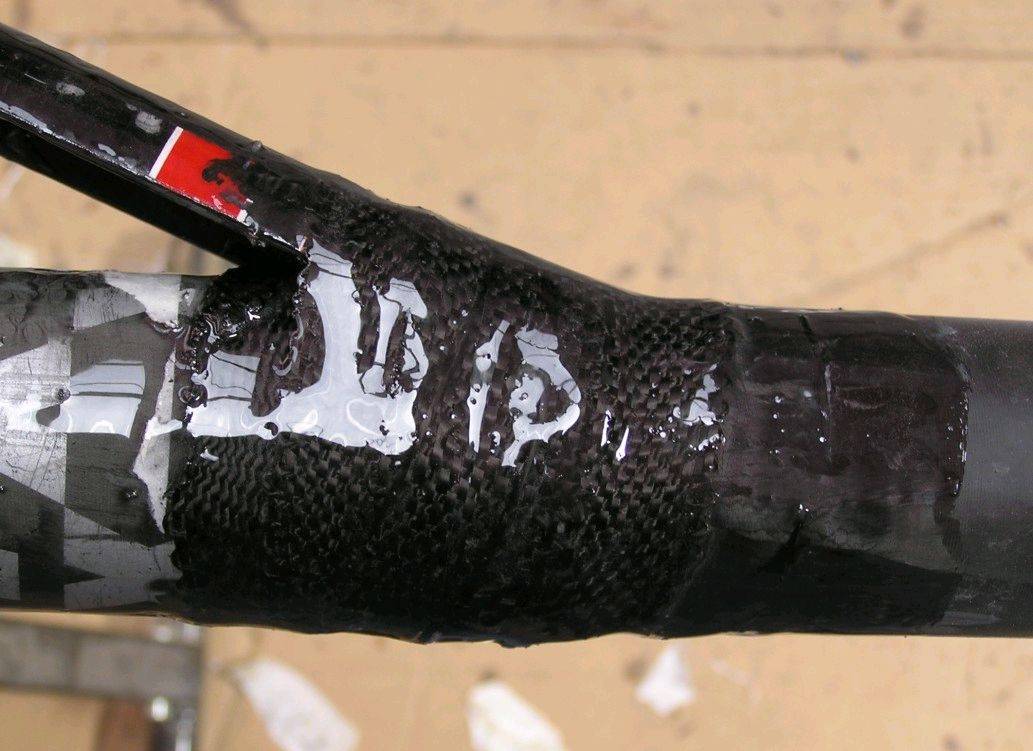

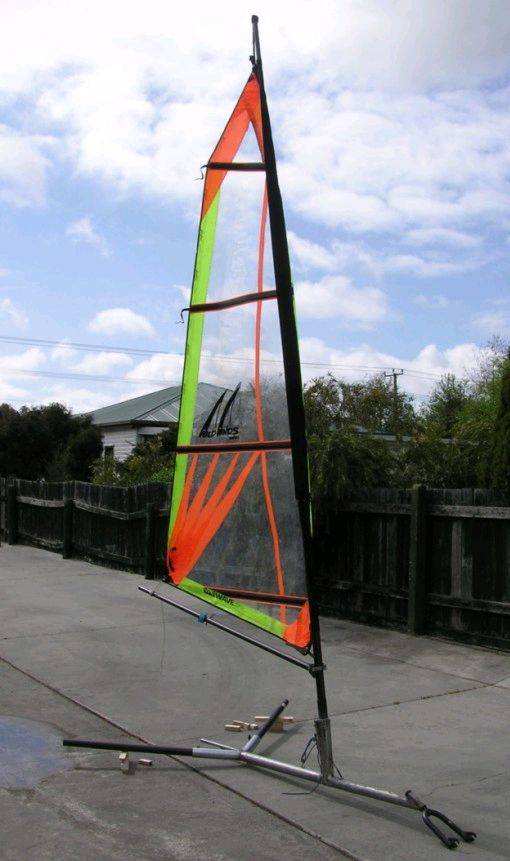

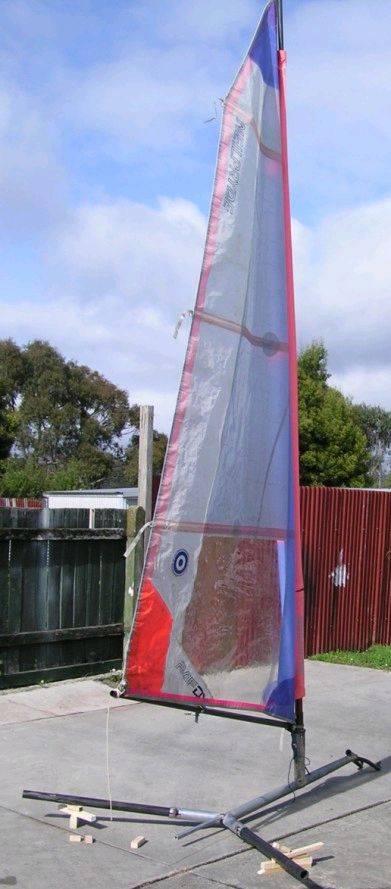

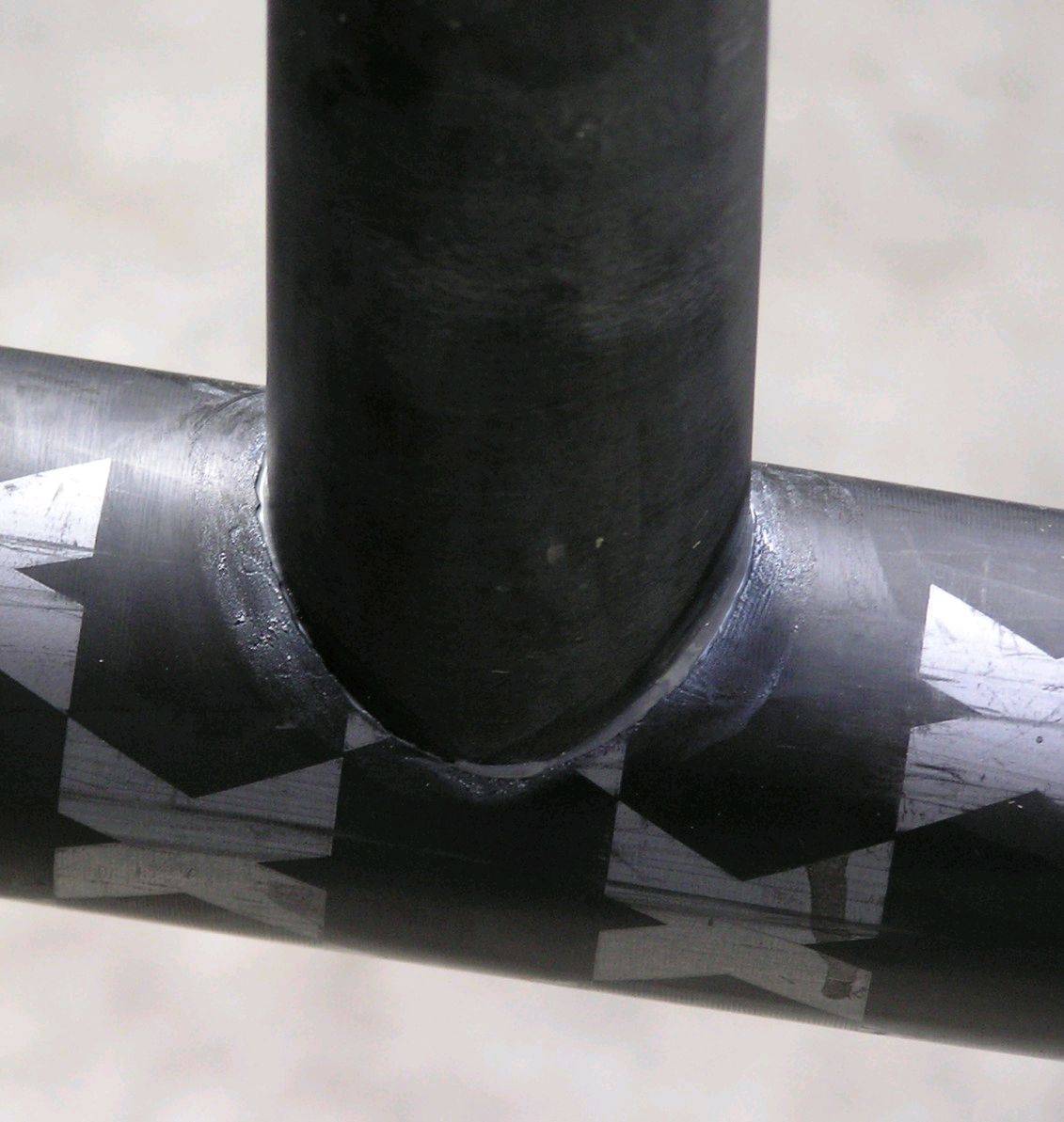

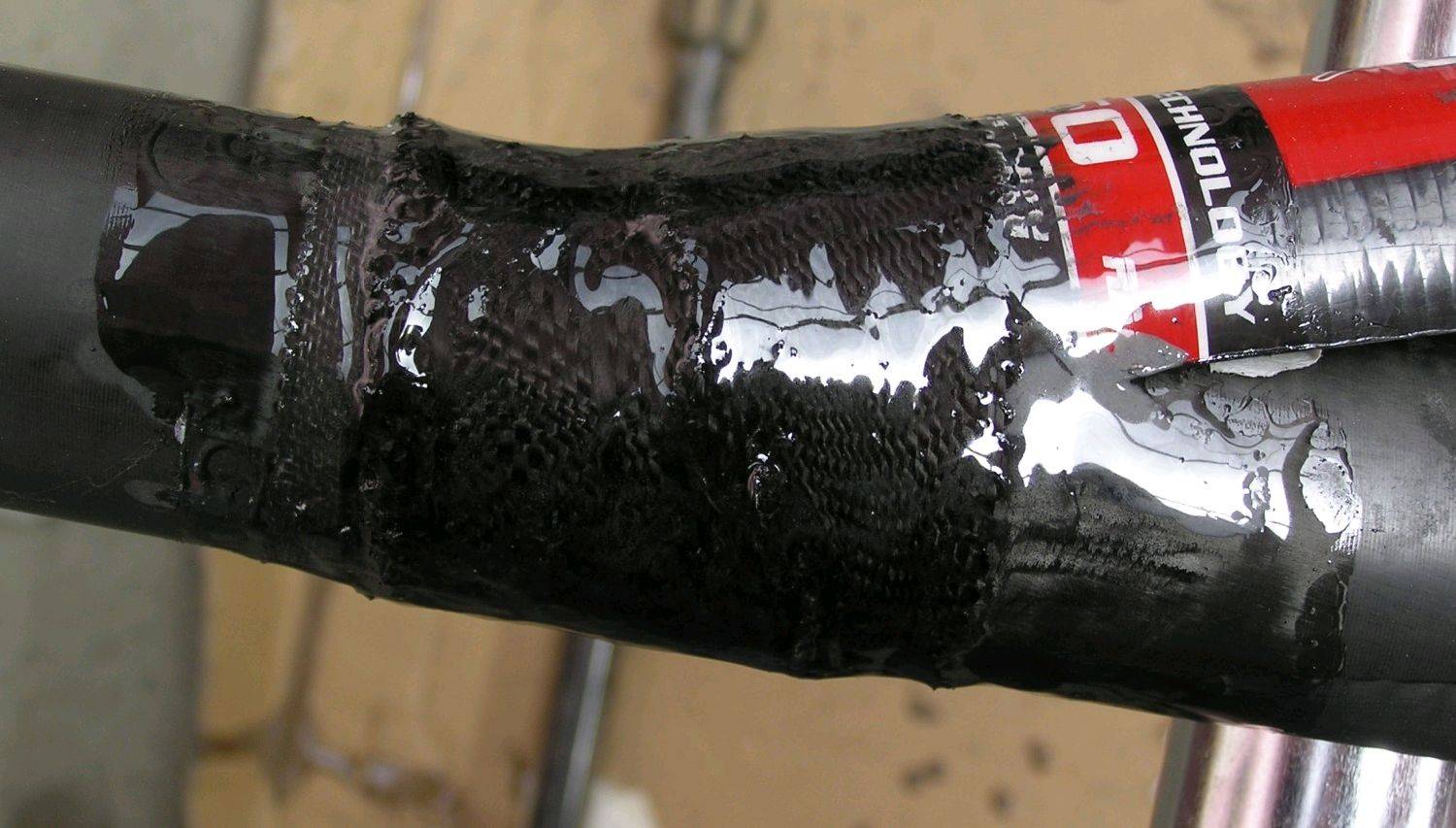

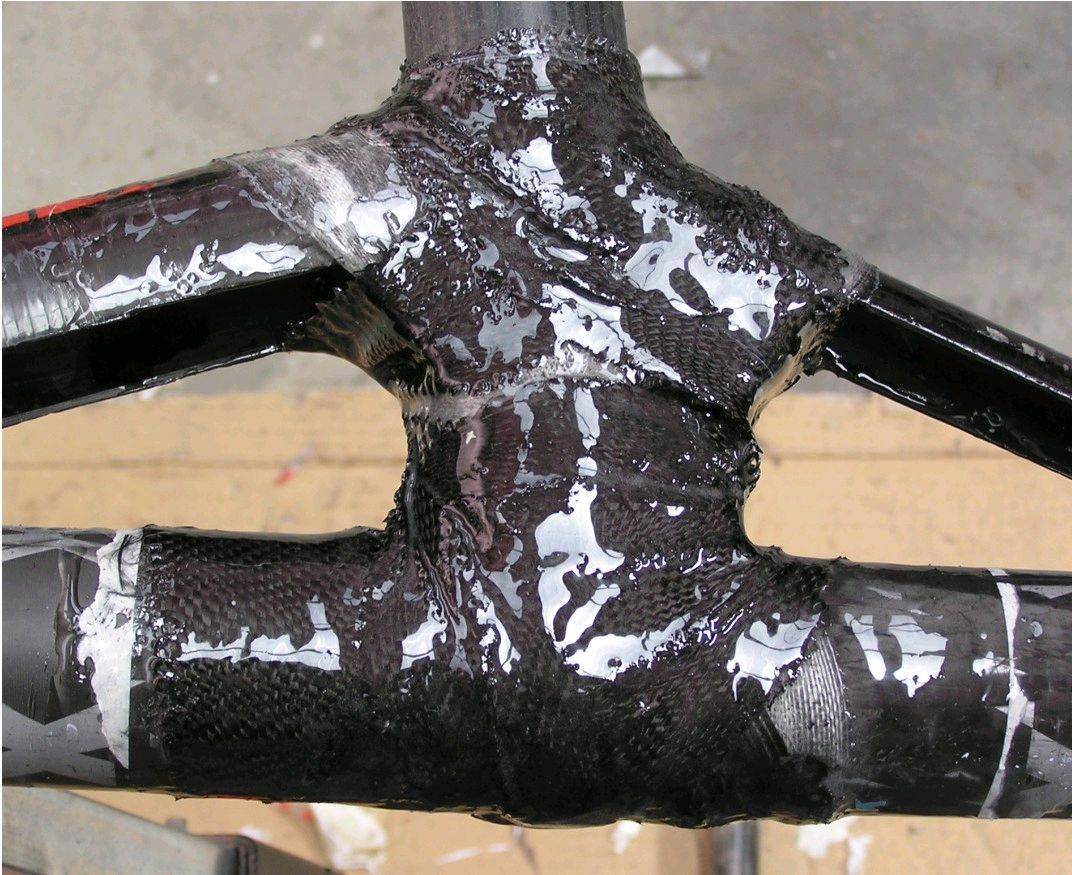

I hope the glassing will be strong enough to hold 4 mtrs of Sail The Mast Step doesn't look real pretty but looks aren't everything all joints are Carbon over S Glass, 10mtrs all up, and lots of Epoxy. Anyway Straight Up gut feelings are Ok. However once you have committed yourself on these pages it will be there to haunt you for life

Garn! Take a Punt and live with your bet[}:)][}:)]

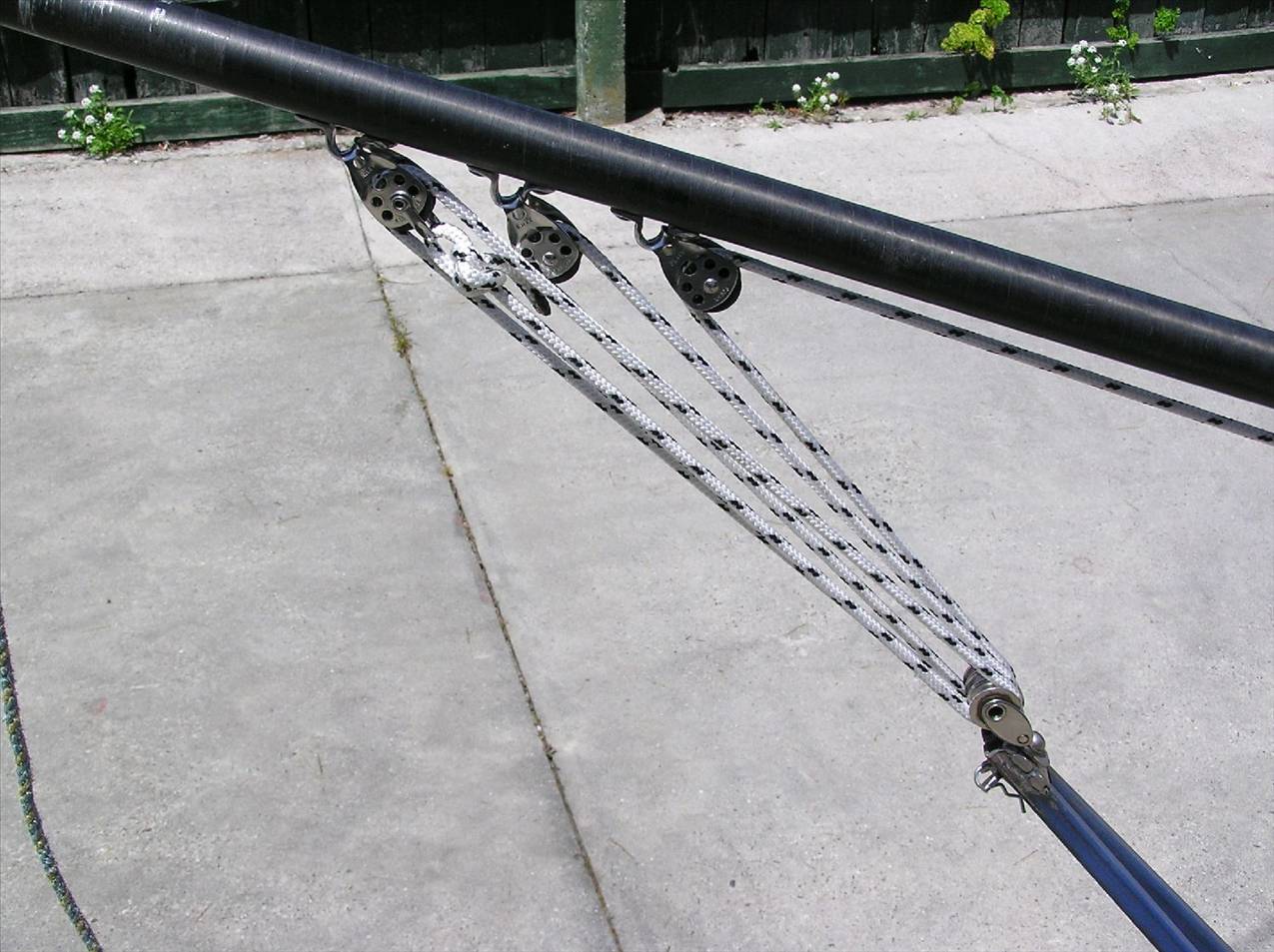

Further to this I now have the Booms completed with Pulley Blocks and Jam Cleats in place. So all the silence on this front doesn't mean I have been standing about with my thumb in you know where My intent with Schrodinger's Cat is to, as suggested by Landyacht, incorporate the main spine and Seating Capsule into the one unit. So far the Wheels way more than the Chassis but I guess that will change smartly with the capsule added.
Ron

So what are you?? My Spelling Police???
You gotta admit though----"They are a Boon"[}:)]
Ron

Hey Ron, great to see this project coming along and can't wait to see the carbon frames when they're finished. Keep up the good work!!

re the 6.00x6 alloy rims , try contacting Eddies Tooling Services. Adelaide 08 83471941. thats where all our previous one came from

i will check with my source , as he read it from the phonebook, something is amiss

Ooooooooh! Damn! Bugger! My first Land Yacht Accident. Occum's Razor slipped from the Stands and fell in my foot. Bugger it is one of those Exquisite Pains that make you try to drag your injured part away even if you know it won't work. The foot isn't busted ( I think) but sure is painful.
Ron

Thank you Gizmo,
You blood is worth Bottling. Even if only for Cockroach Poison.

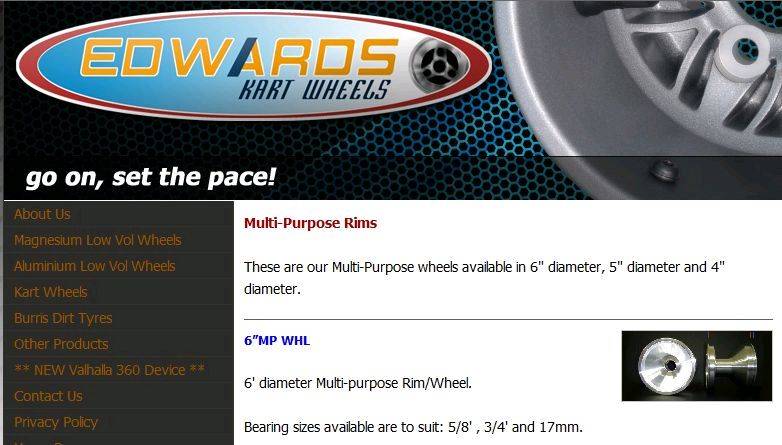

Those certainly are a very nice rim and I have emailed for a Price List.
Regards,
Ron

Bloody Landyacht!!!
Why do I bother[}:)] I do to all the trouble of tracking down this stuff and you have been there before me. BUGGER!

Here is the contents of a reply from AZUSA Eng'g.

http://www.azusaeng.com/wheels/wheelix.html

Good Afternoon Ron,

Thank you for your interest in Azusa Products for your Land Yacht use. Personally I love land yachts and envy those who have a place and means to have one. I am a peace & quiet person so it is right for me. Last ride was over 30 years ago.

Here is a bit of wheel info for you and you can decide what exactly you want to get pricing and shipping on.I am attaching catalog pages for your information and reference.

To fit within your size requirements the 8" wheels are to me the best choice. As you can see on page 6 there are 2 design choices with several bearing choices. Either the
Tri Star or the Spinner would work well for you. Both would accommodate the same tires see pages 12-13.

There are 2 you may like - both are round profile and OD is 16.5 - one is #7012 which is a rib tire Load Rating for 4ply which is what we carry is 670 lbs per tire.

The other one is a Smooth as they call it and has a very hard compound that wears well even though it is a 2 ply with Load Rating of 435 lbs.

As for the 10" wheel - it has always been an eye catcher and popular but we now have them stamped and plated overseas so the plating quality is poor and not even really a chrome appearance. We encourage all customers to purchase the Plain Black and have powder coated to match the project for a much nicer finish. The tires for these are ONLY available in Sawtooth and Universal Tread - much like a motorcycle. The diameter is 17.5"

Please study the spec page and photo pages and let me know what part numbers you would like pricing and shipping on. I also need your town and city/country code plus phone number for paperwork.

Joy @ Azusa



At this point I will go with the 8" Spinners they look very nice the Astro's however would fit the bill as well though they look a little Industrial.
Tires? It is a pity they don't come in a more suitable size but Beggars Can't be Choosers
Ron

I am also thinking Marine grade Anodizing

Have you looked at Sysmic rims?

I know there are places to put add's! Does anyone go there???

WANTED-------------------------WANTED-----------------------
East Coast people please. NSW, Qld Vic' and SA



WANTED-------------------------WANTED-----------------------

Required 1 x Mast Top section From a 5mtr+ Mast in reasonable condition and a stiff as possible. Anyway Talk to me Folks,
Ron

Well I got you there Gizmo[}:)] "Do Not Assume!
As you make an Ass out of You and ME[}:)]
Now who said I need the Mast Top for a MastHmmm

Anyway I was lucky enough to get enough parts in my initial Broken Bits buy to assemble 3 suitable Masts for my build Ooooh! Lucky Me. No I want this mast to either Extend or reinforce and existing Boom as my other alternative is to make one out of the 2 that I have, 1 does not make 2 land yachts.

Still WANTED-------------------------WANTED-----------------------

Required 1 x Mast Top section From a 5mtr+ Mast in reasonable condition and a stiff as possible. Anyway Talk to me Folks,
Ron
WANTED-------------------------WANTED-----------------------

Even a substantial length of a mast top will be good about 2 mtrs of the tip section is best for internal sleeve.
Also just as a point; Now this may have been done before but I made a Base section for my shorter Mast by using a Longer Broken base and internal sleeveing a top section into it with an overlap of about 300mm this was Aroldited in place and a neat band of 90mph Tape (Chicken Feed/Crazy Clint's) to stop Carbon Splinters.


Another thing I have been thinking of and will start off this morning is a Special fixed File of Useful Contacts which all of you guys can or should use to save Re-boiling your Cabbage Not too many of you will have heard that expression before
Ron

It is remarkable the pressure that is used to Sheet and Haul the Sail down on a LY. The Mast Top that I got was quite a bit stiffer than the one I was using for Occum's Razor/OR, which I thought would do the trick as a Boom, Hah! I finished up using both sections of mast to get a stiff enough Boom. That is one Boom stuffed up the other booms boom. After having fitted the 2 mast sections together and refitting the Hardware it now appears stiff enought to serve well as a Boom.

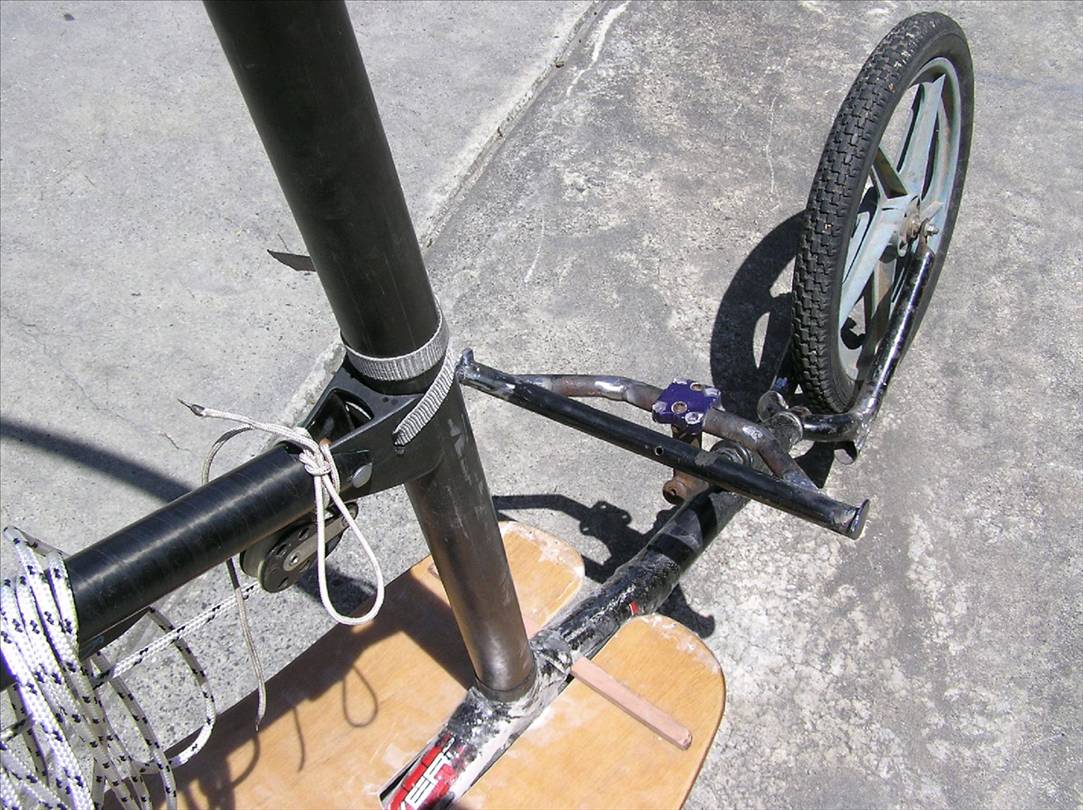

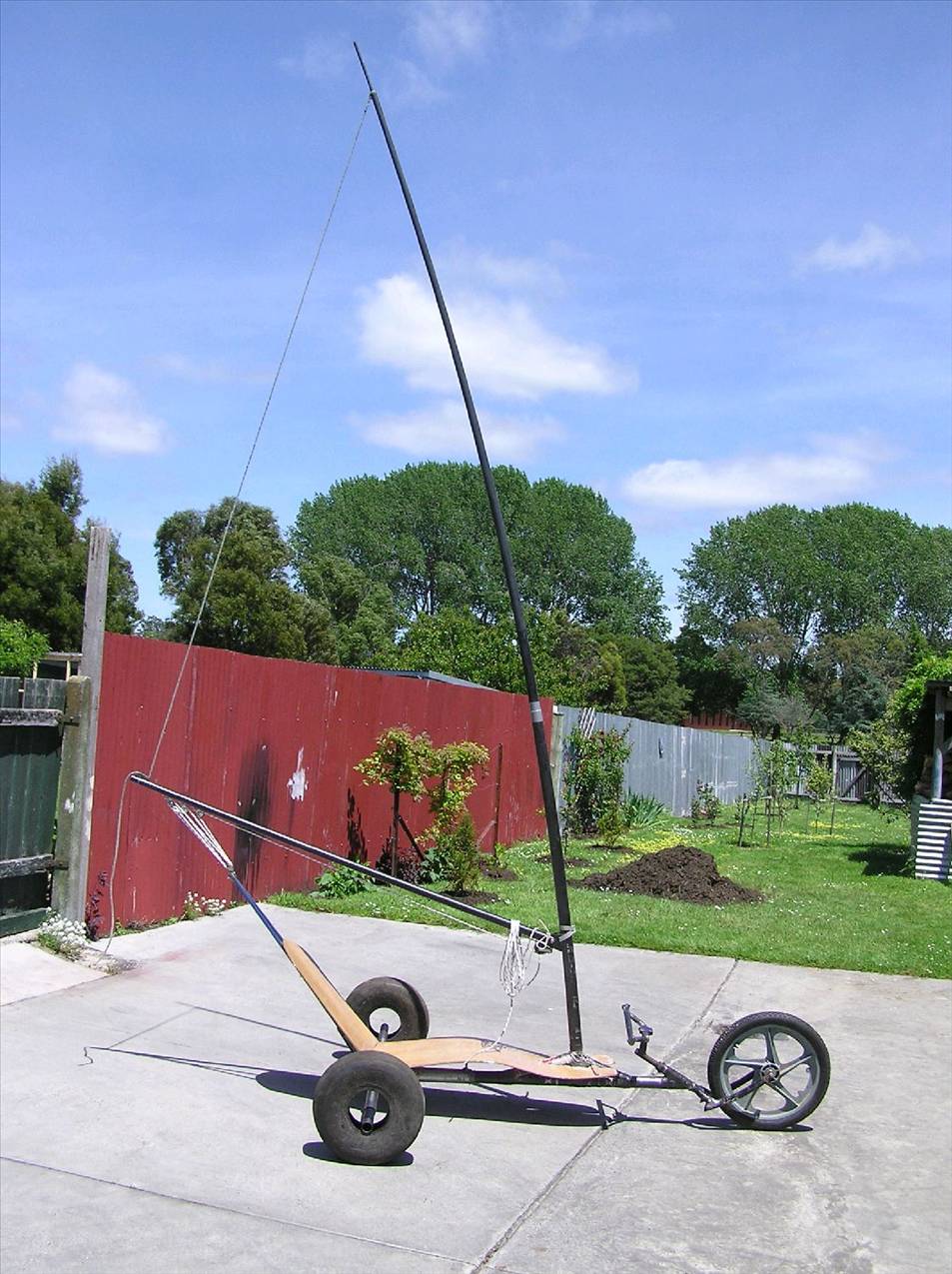

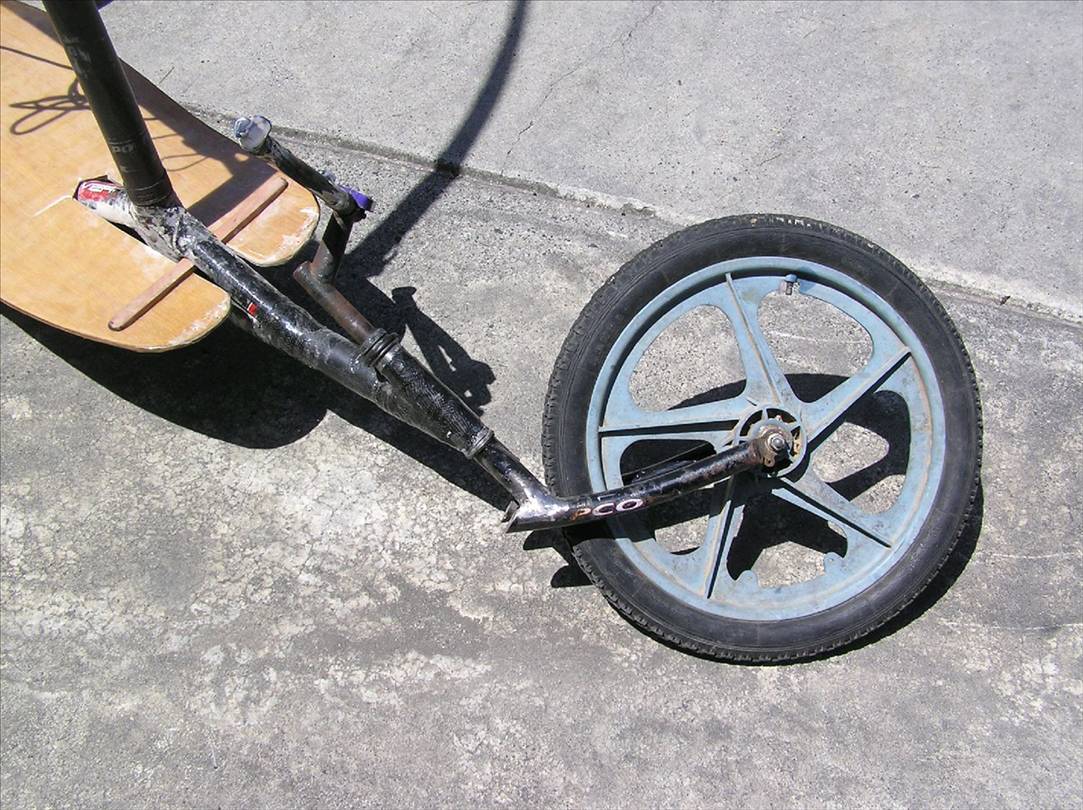

Schrodinger's Cat/SC now has a front wheel and steering set up and also the Sheet setup for the boom control.




In the next image I want to show the mast curve and the New Rimless Wheels I have fitted to SC.

[}:)][}:)]

Ron
