21 Aug 2010 9:38pm

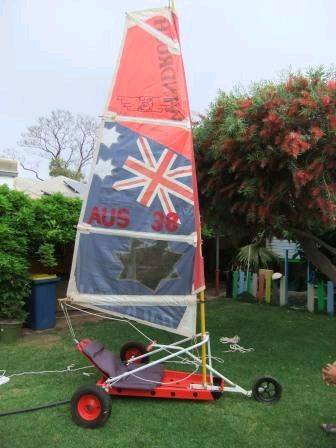

Class -LL Mini
Length -1640mm
Width -1510m
Mast Ht -4600mm
Approx sail area -4.4sq m
Location -Brisbane
Built by Ian

iand

QLD

243 posts

iand

QLD, 243 posts

22 Aug 2010 4:35pm

Centre landyacht Dan's LL Mini

vjs

32 posts

vjs

32 posts

18 Oct 2010 6:09pm

vjs

32 posts

vjs

32 posts

18 Oct 2010 6:10pm

landyacht

5921 posts

landyacht

WA, 5921 posts

28 Oct 2010 8:46pm

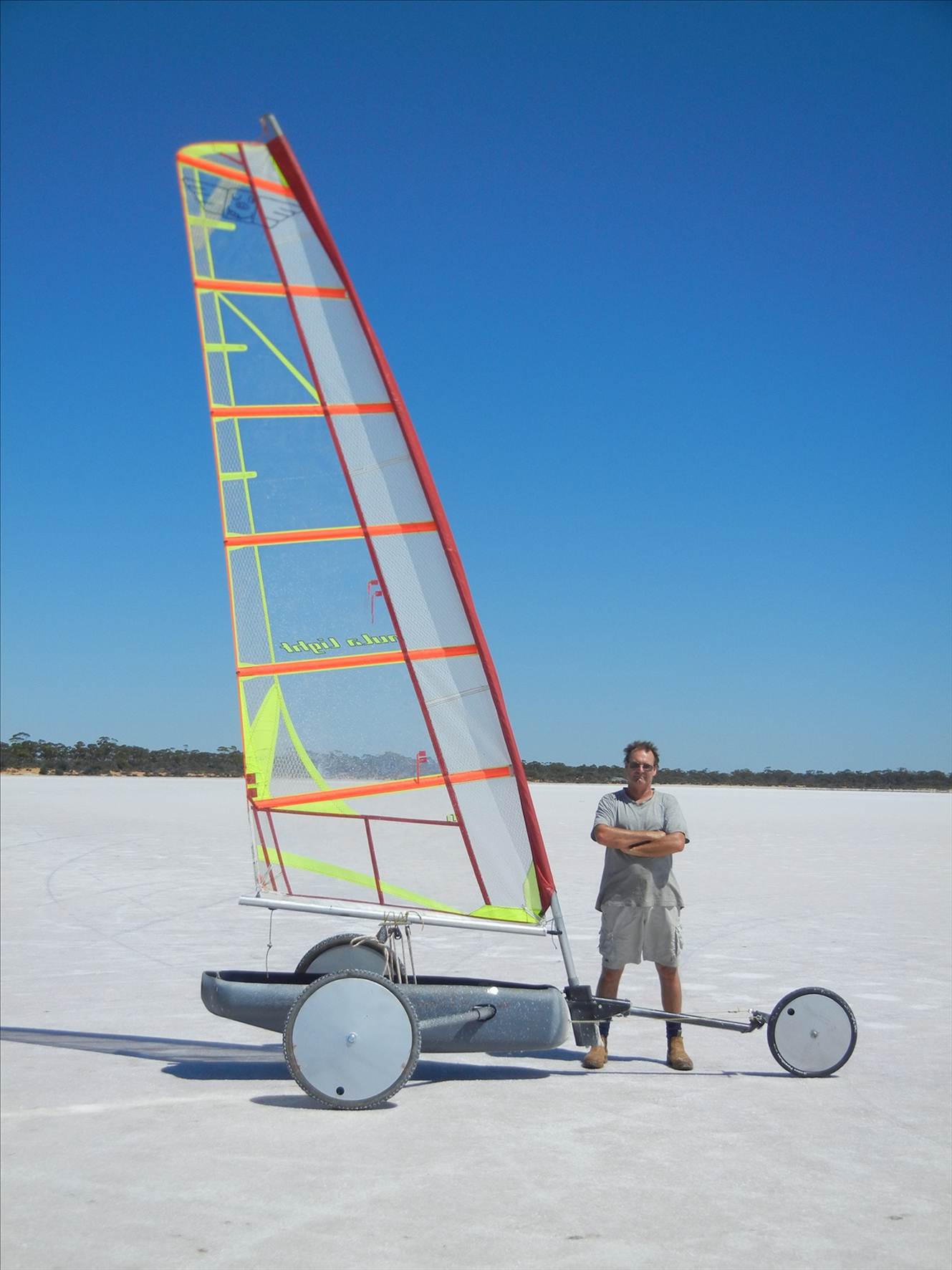

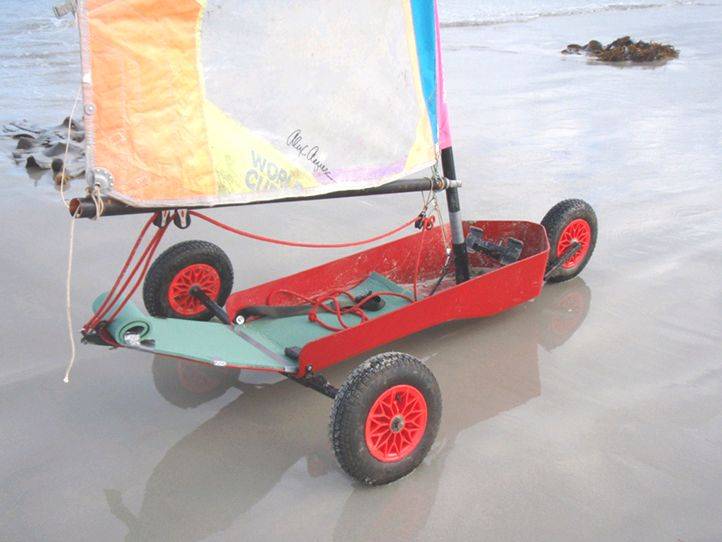

Here bare some pictures of a folding type Lake Lefroy Mini which we built 8 of back in 2005. . the homage to a blokart is rather obvious. when we built them , people wanted a fold up yachtwith handsteering, etc ,etc. when we built the next generation we used foot steering that we developed on this yacht.
this one is called Ladybird, and still sails well, It has been well looked after, and recently sold for its original building price

4m sail and a bit heavy at 38kg.
It also has a sidecar that bolts on the right hand side

deansh250

32 posts

deansh250

32 posts

27 Nov 2010 3:29am

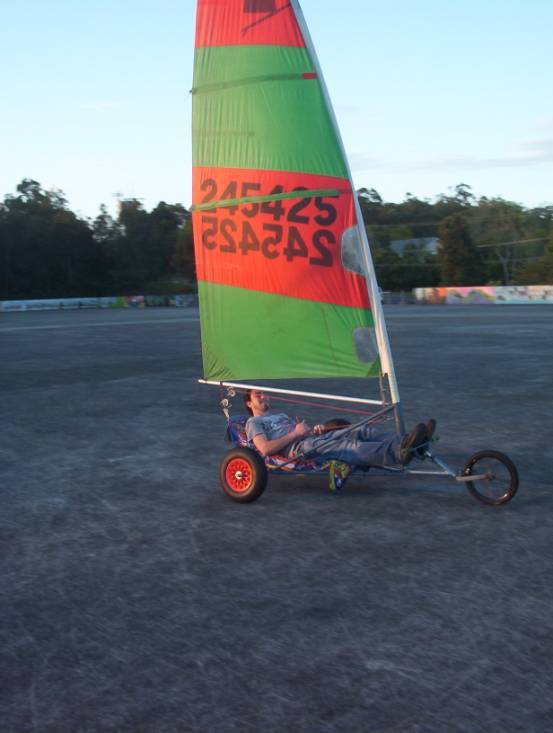

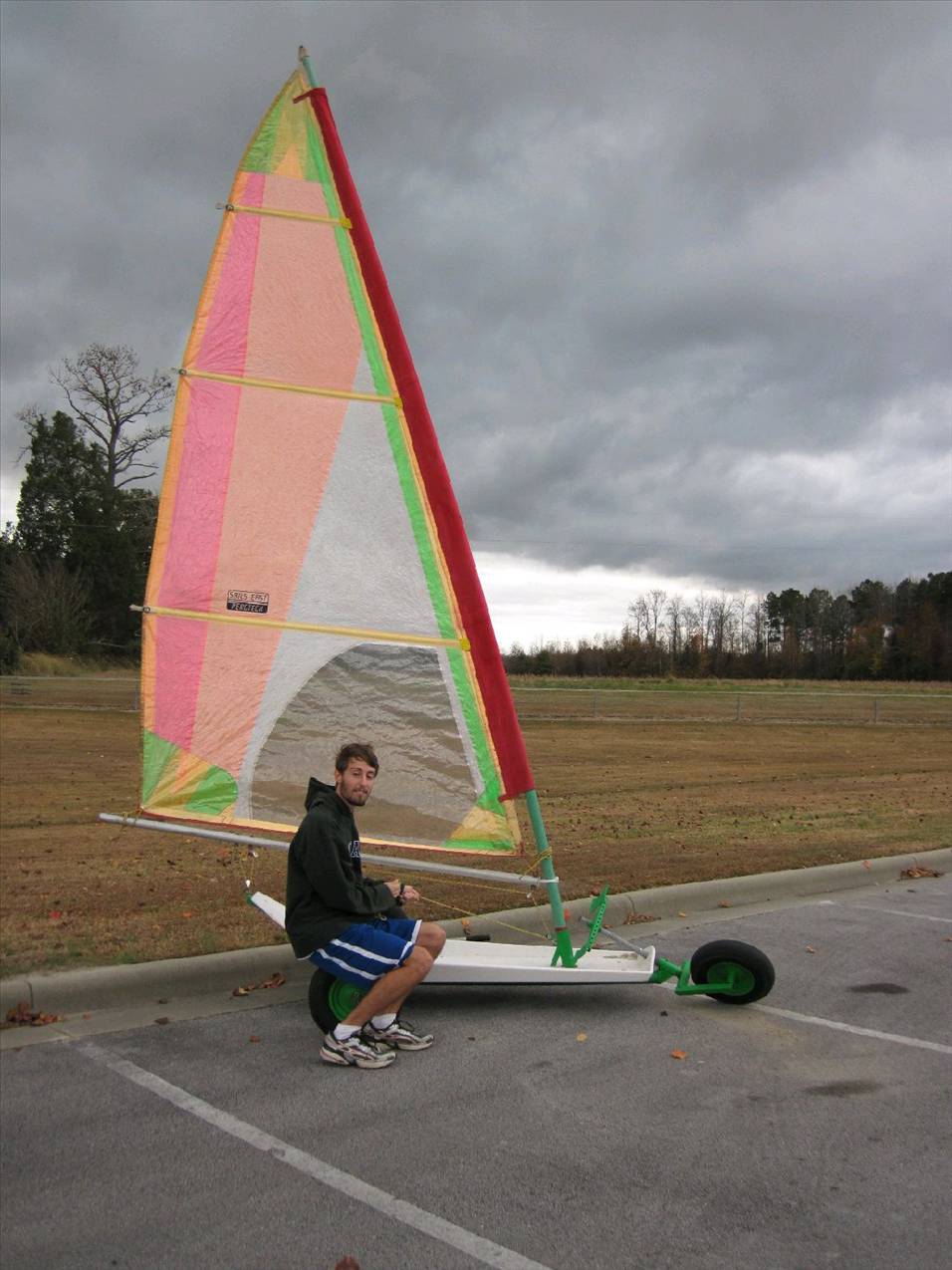

Pictures of my son with my LLmini. This shows the third generation sail and seat. The sail is now a little too flat and the seat too heavy. The brake is mainly for laughs. It has been a lot of fun both building and sailing. Just wish I lived near a dry lake where I could really see what it would do.

lachlan3556

VIC

1066 posts

lachlan3556

VIC, 1066 posts

30 Dec 2010 1:17pm

My Second Mini (No Name yet)

Build Thread: www.seabreeze.com.au/forums/Land-Yacht-Sailing/Construction/My-Next-LeFroy-Mini/

Specs

Class - Mini (slightly modified Lefroy design)
Length - 1640mm (As Per Plans)
Width - 1500 (APP)
Mast - 4650mm
Sail Area - Unknown
Location - Home in Bendigo (Vic), Pictures near Port Fairy (Vic)
Builder - Lachlan

Comments - Love the way this ones seat sits on top of the chassis, the seat feels much stronger than my last mini due to the extra support. Everything works great on the yacht. I don't think it looks half bad to either

Moral of the story: Build one for yourself!!!!!

Sorry if the pictures are low quality, it really does have nice paint

waratah

5 posts

waratah

5 posts

21 Jan 2011 5:06pm

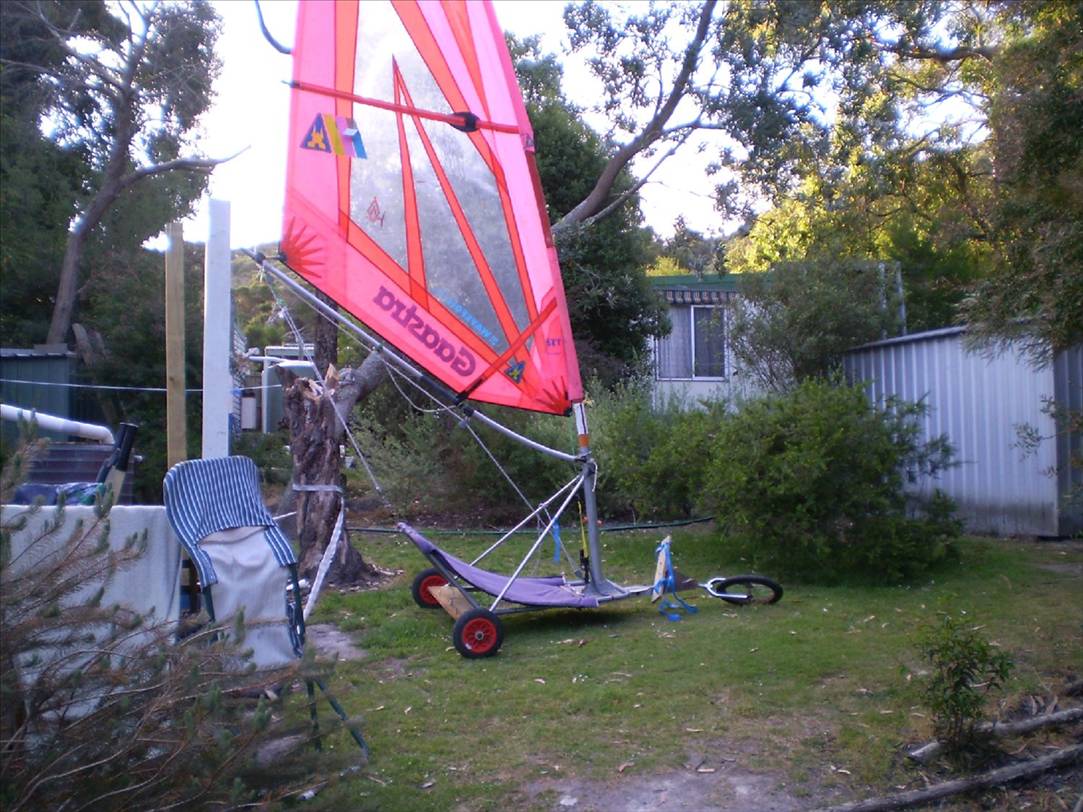

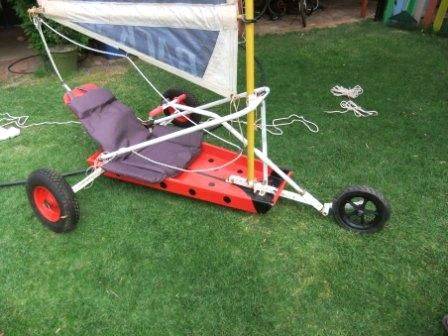

The Waratah Sandfly 200. Built for under $200 from junk around the yard,a$10 sailboard off Ebay and $2O for the sail courtesy of the Salvos shop at mornington,There are no welds in the construction all joits are held togther with Tech screws and fish plates.The design is a combination of other carts featured on this site

Nikrum

TAS

1972 posts

Nikrum

TAS, 1972 posts

22 Jan 2011 12:04am

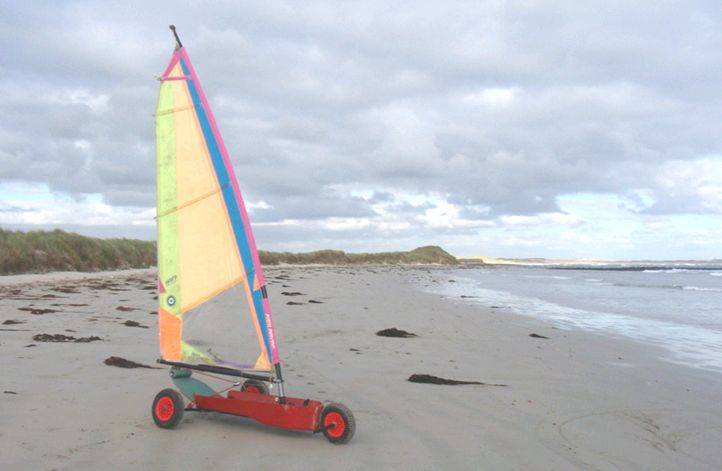

I think Occum's Razor deserves registration

On Pegg's Beach west of Wynyard.
Ron

Chook2

1249 posts

Chook2

WA, 1249 posts

5 Mar 2011 10:40pm

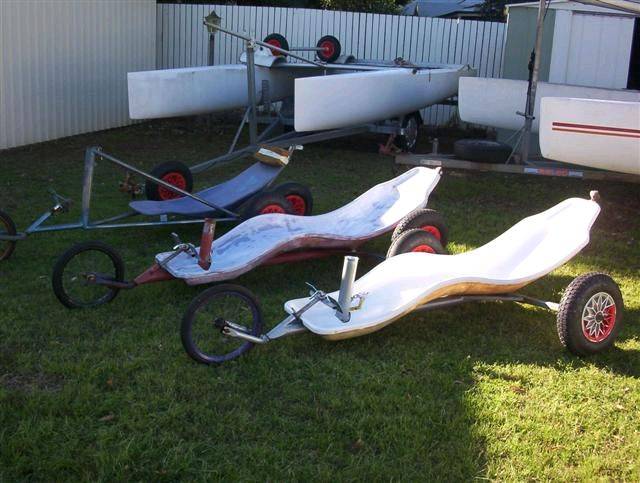

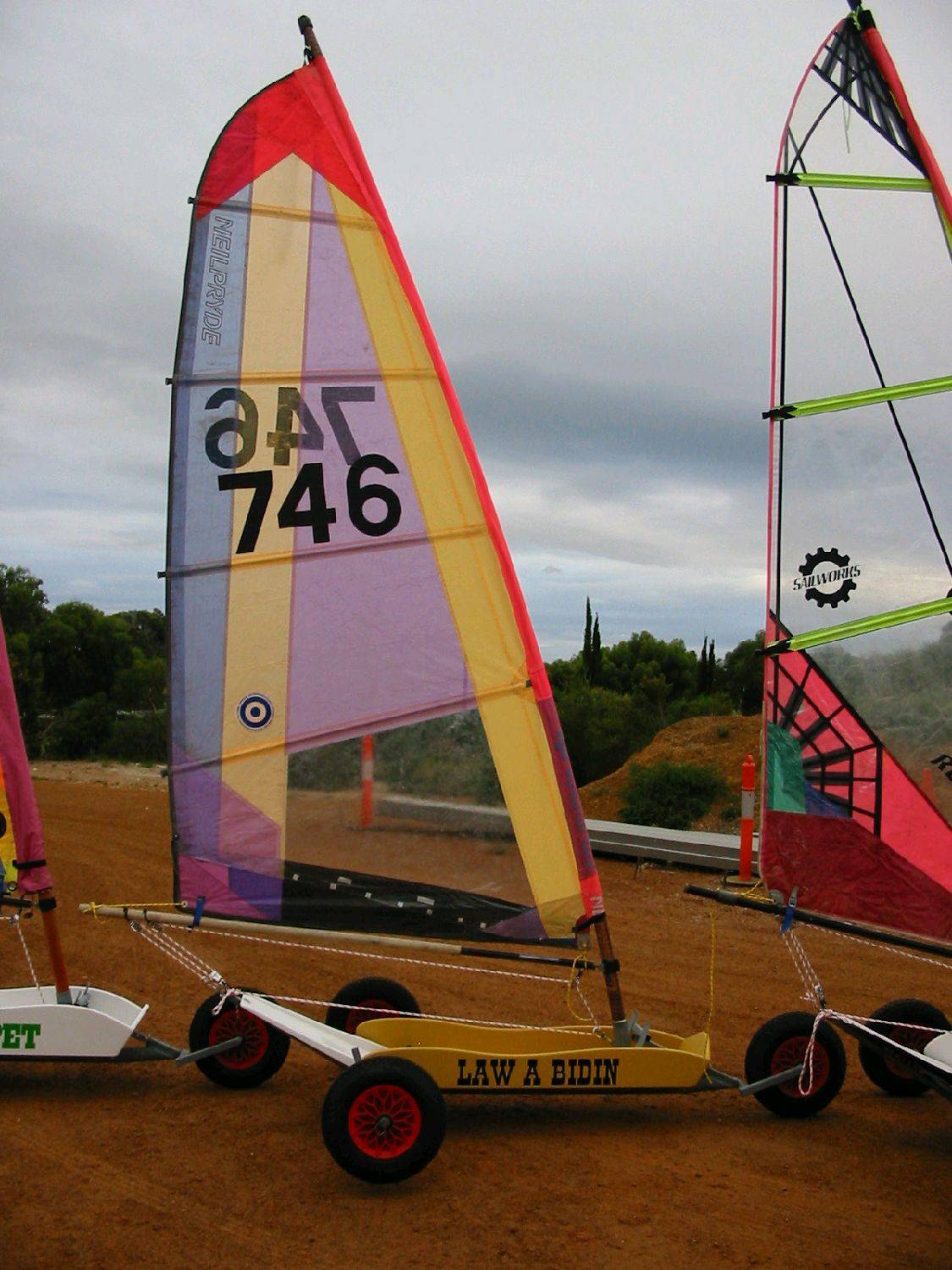

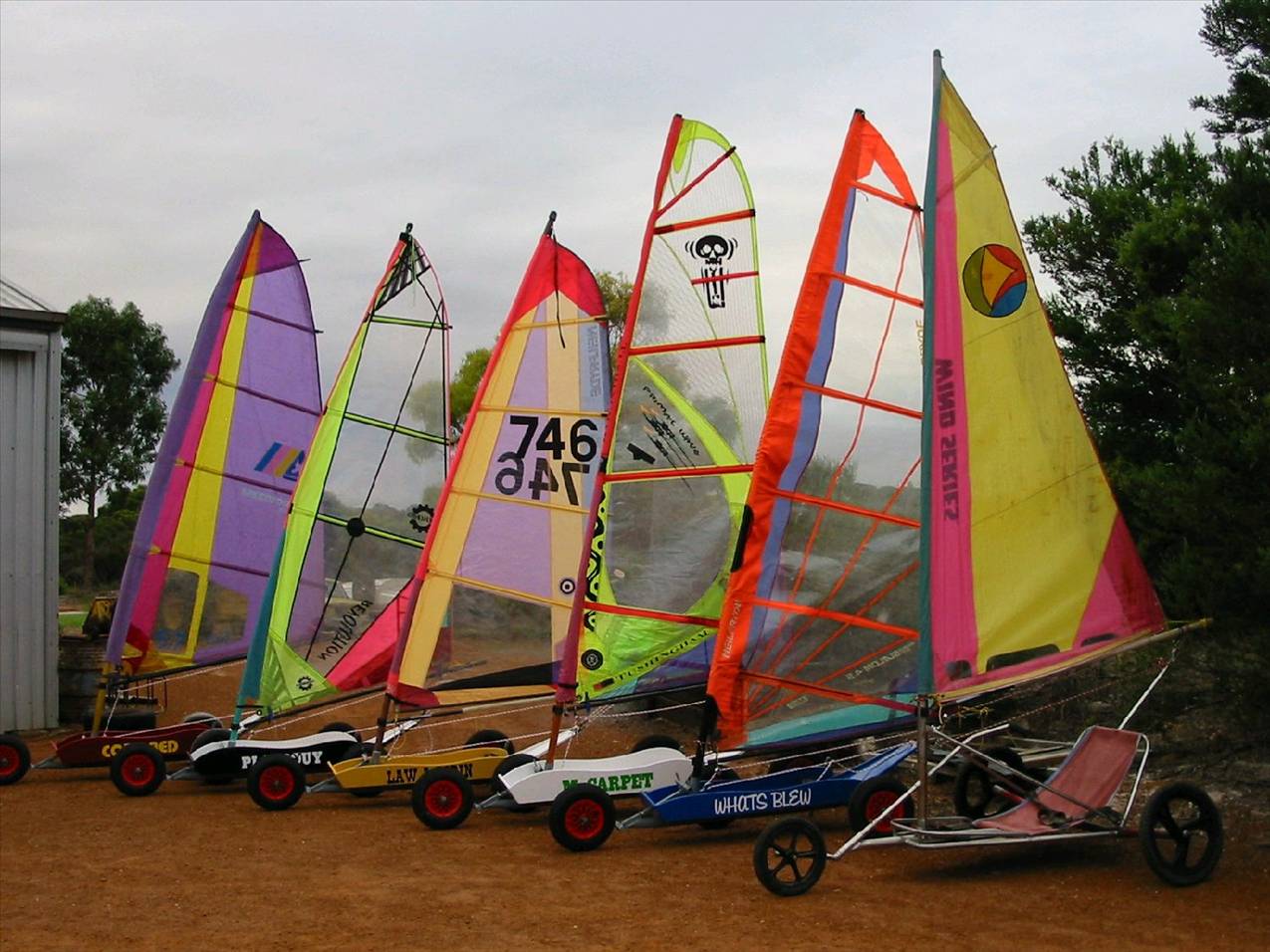

Well finally got them assembled. WHEW!!!!!

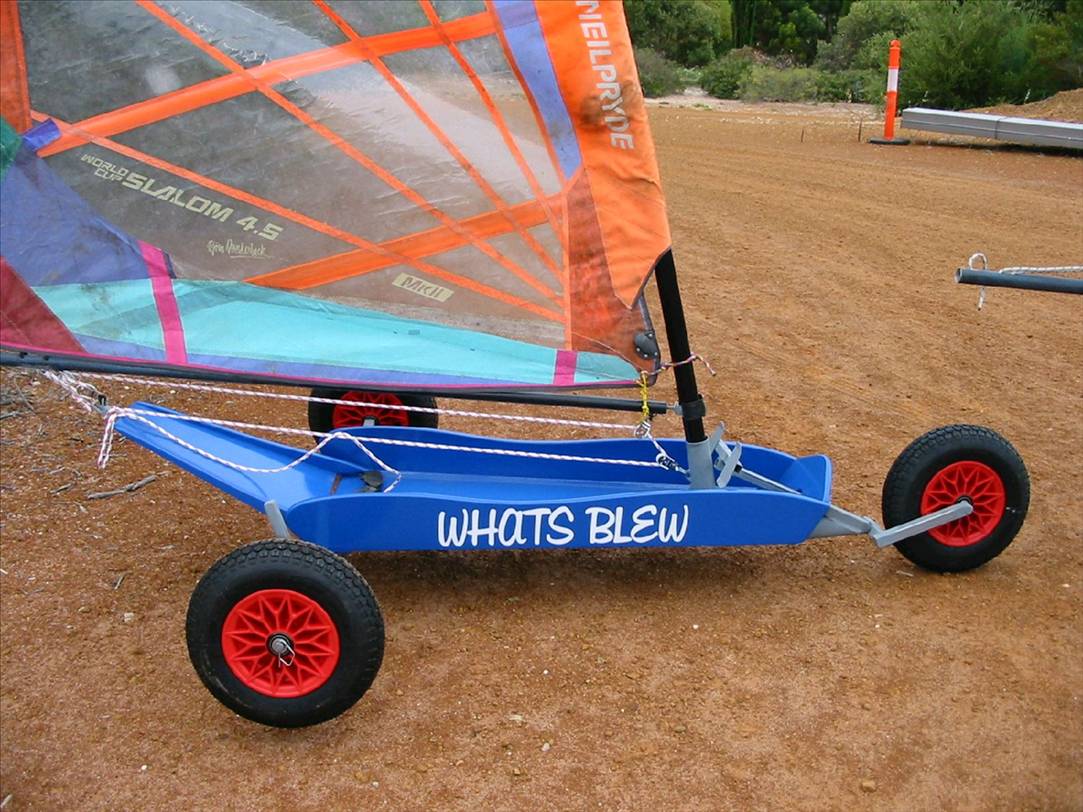

They are Lake Lefroy mini's, made to Paul Day's plans and I'm in Esperance Western Australia (South east coast of WA). I got them assembled this arvo and there was no wind, so just a photo shoot so far.
Just need a mast extension for "Whats Blew" and a bit of tiding up and seat padding on the rest. I included the stainless kart as well.

I rotated the brake lever mounting bracket on the rear axleto the back of the square tube. The brake lever then goes back under the axle when fully down and this lifts the wheel clear of the ground for parking as it locks forward over centre. (Well in light wind it will work anyway).

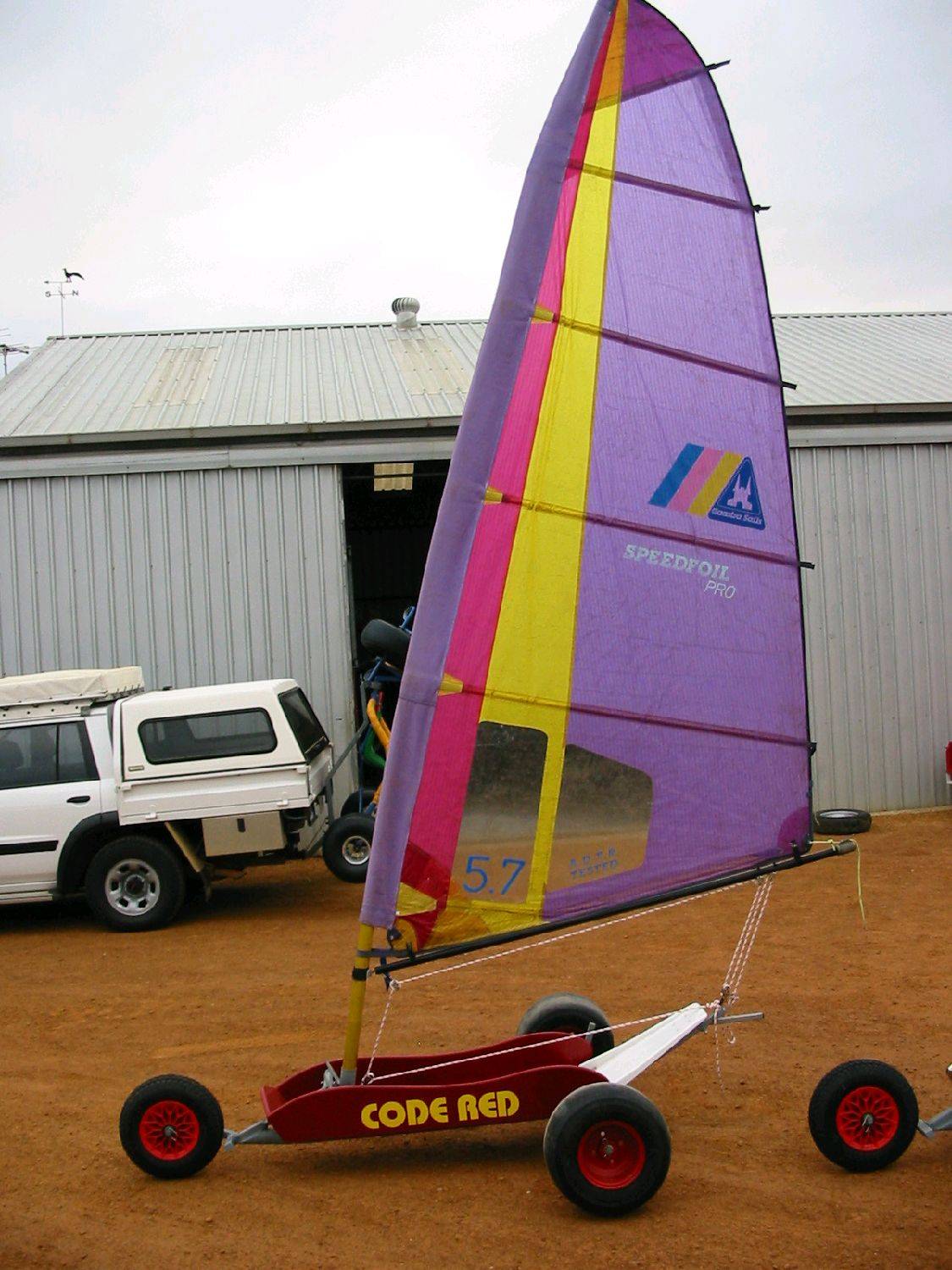

The extension on Code red needs a bit of a trim back. I got a bit excited when I weasured it as I wanted it to clear my helmet. But not when I'm standing up!!!!

It was good fun building them and I had a few beers tonight to wet their heads.

Cheers, Chook Henderson

dudevato

19 posts

dudevato

19 posts

28 Apr 2011 1:15am

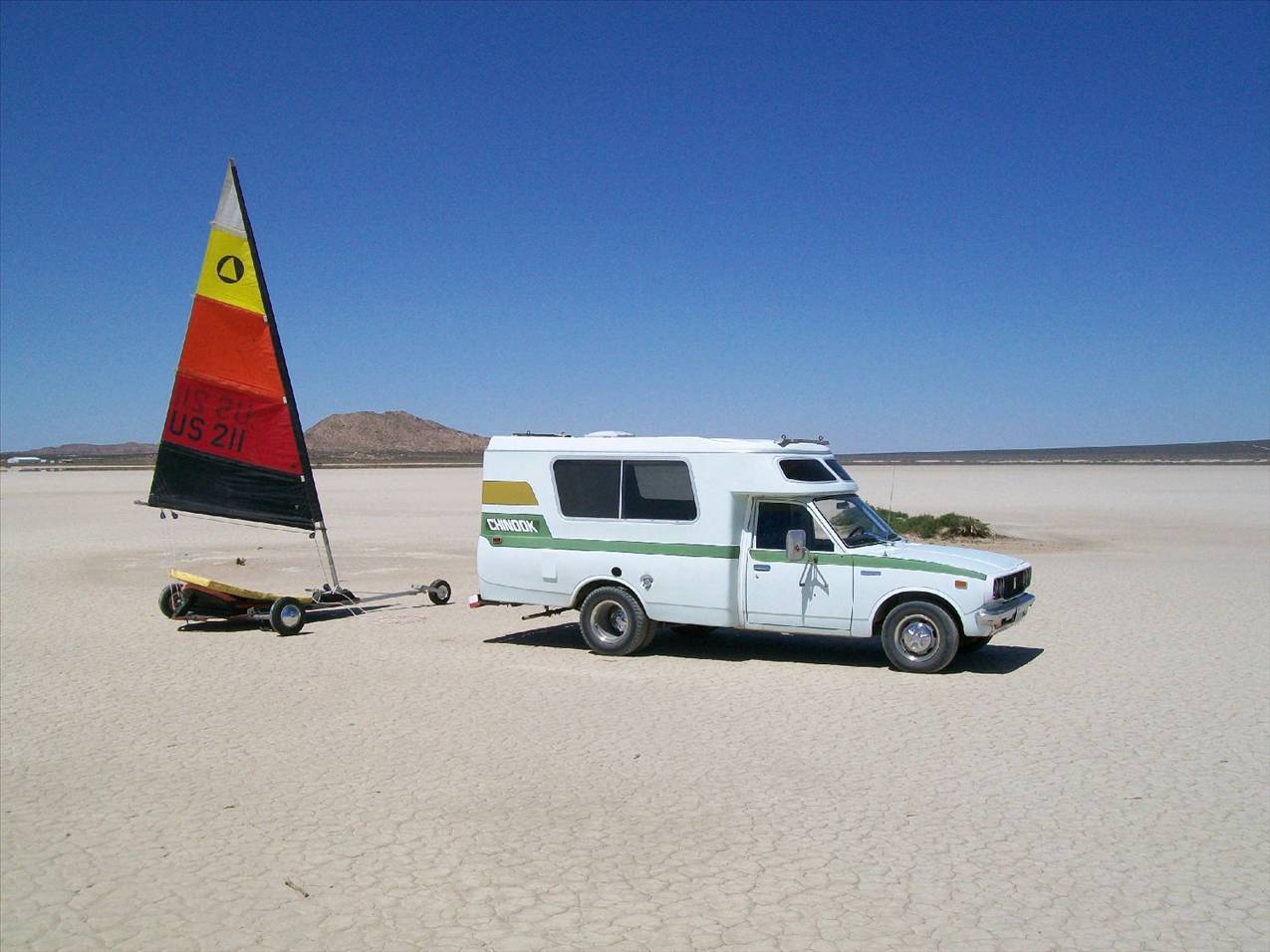

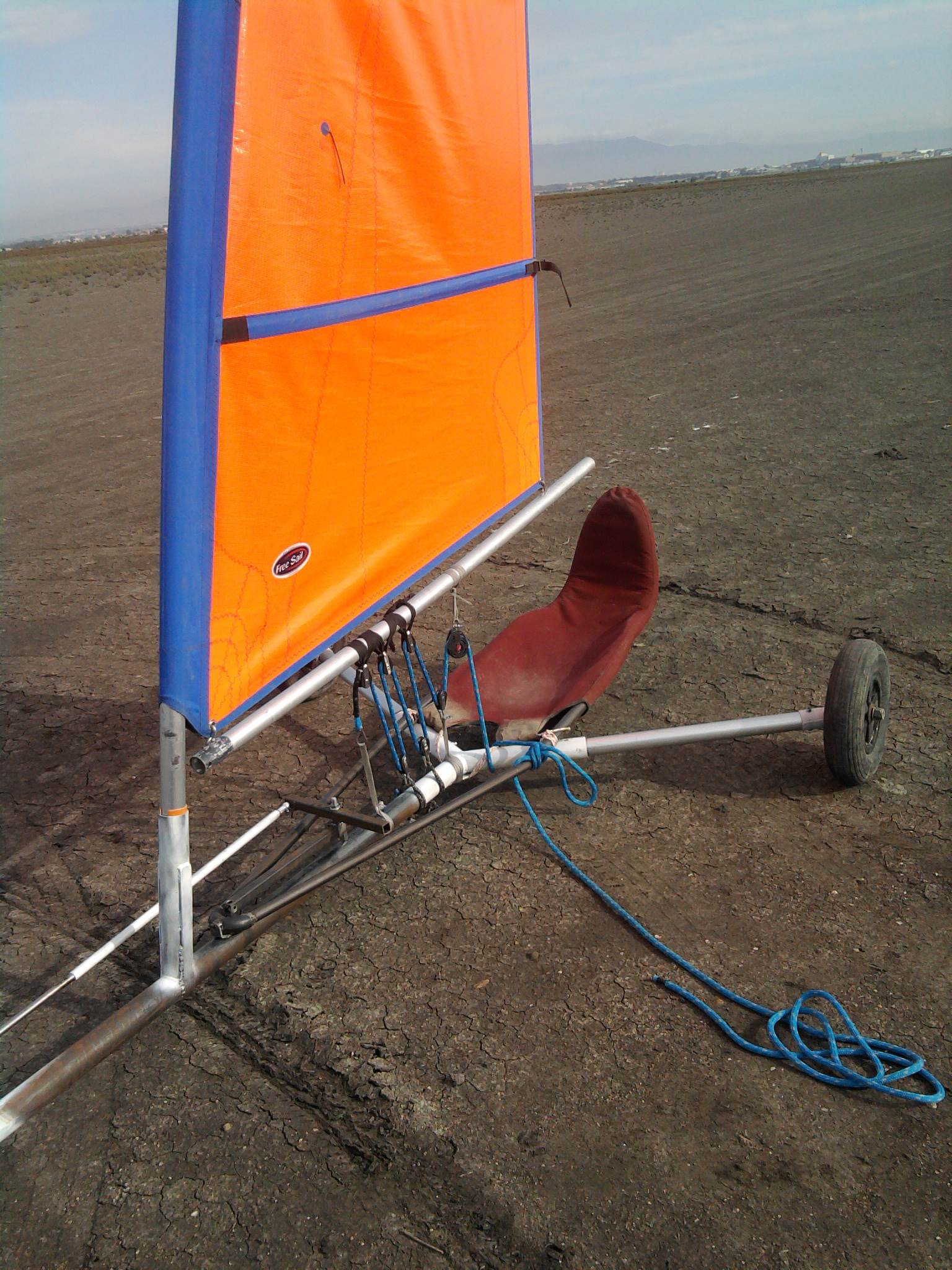

Hi, I'm in southern California and got this cart a couple of months ago for $475 USD. It's all aluminum and rolls along well and very smooth with its tall tires. The mast is 3 piece, the rear axles pull out and so does the front tube. I sail at El Mirage dry lake, about an hour from my home. It's a Great place with overnight camping on the lake, No Speed Limit, no nails in your firewood. Ultra Lights and small airplanes land out there, along with the para sail cars. The lake is like 1 3/4 by 4 miles. A few dirt bikes and quads use it, but mostly stay on the hills/trails around the lake. Had it going 41mph with a GPS onboard. I want to re-work the plywood seating area to make it a bit wider and I need a tie down spot for my ice chest. The seating cushions are just thrown on for now, till I get things re-worked

desertyank

1264 posts

desertyank

1264 posts

28 Apr 2011 10:57pm

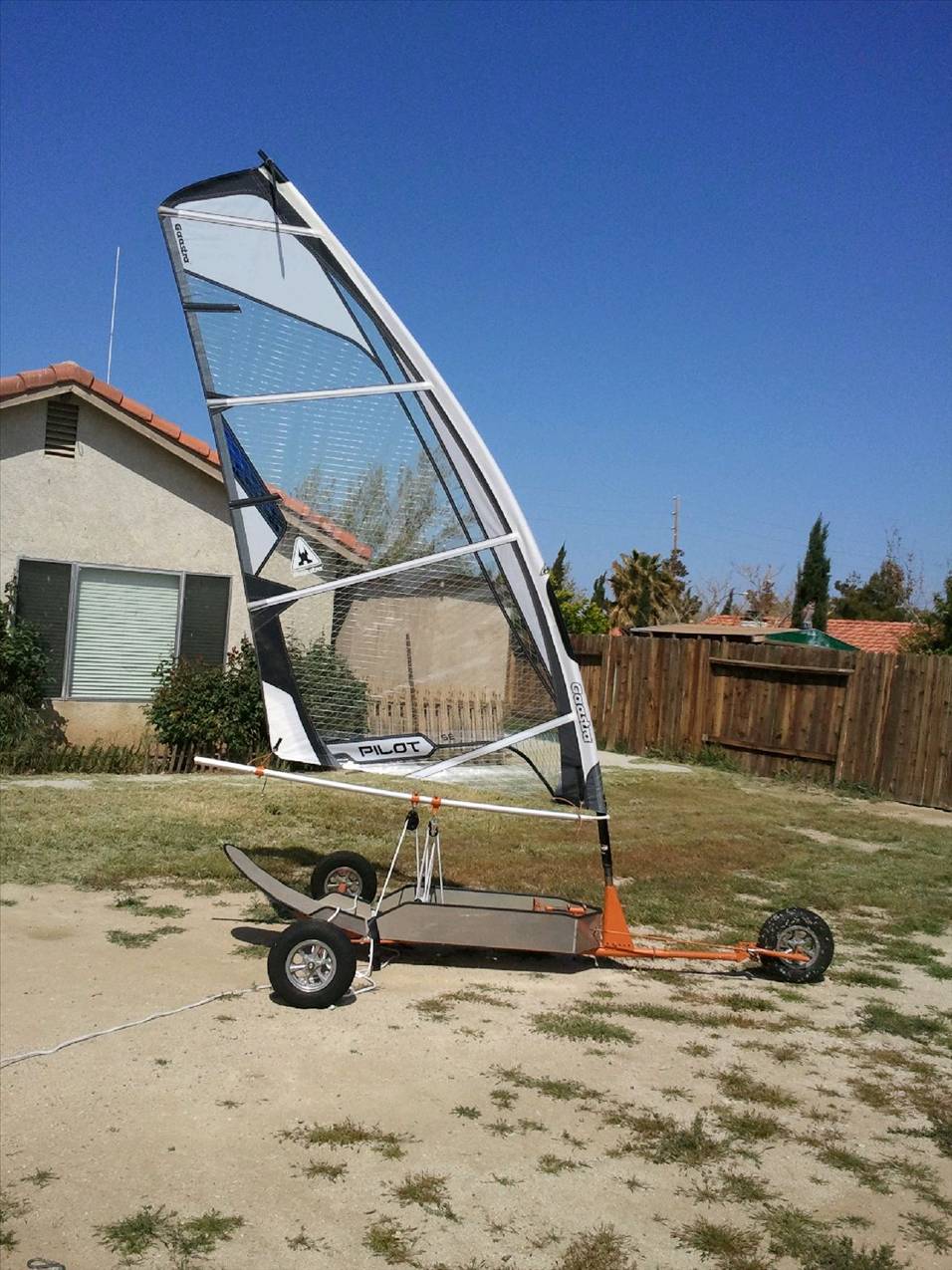

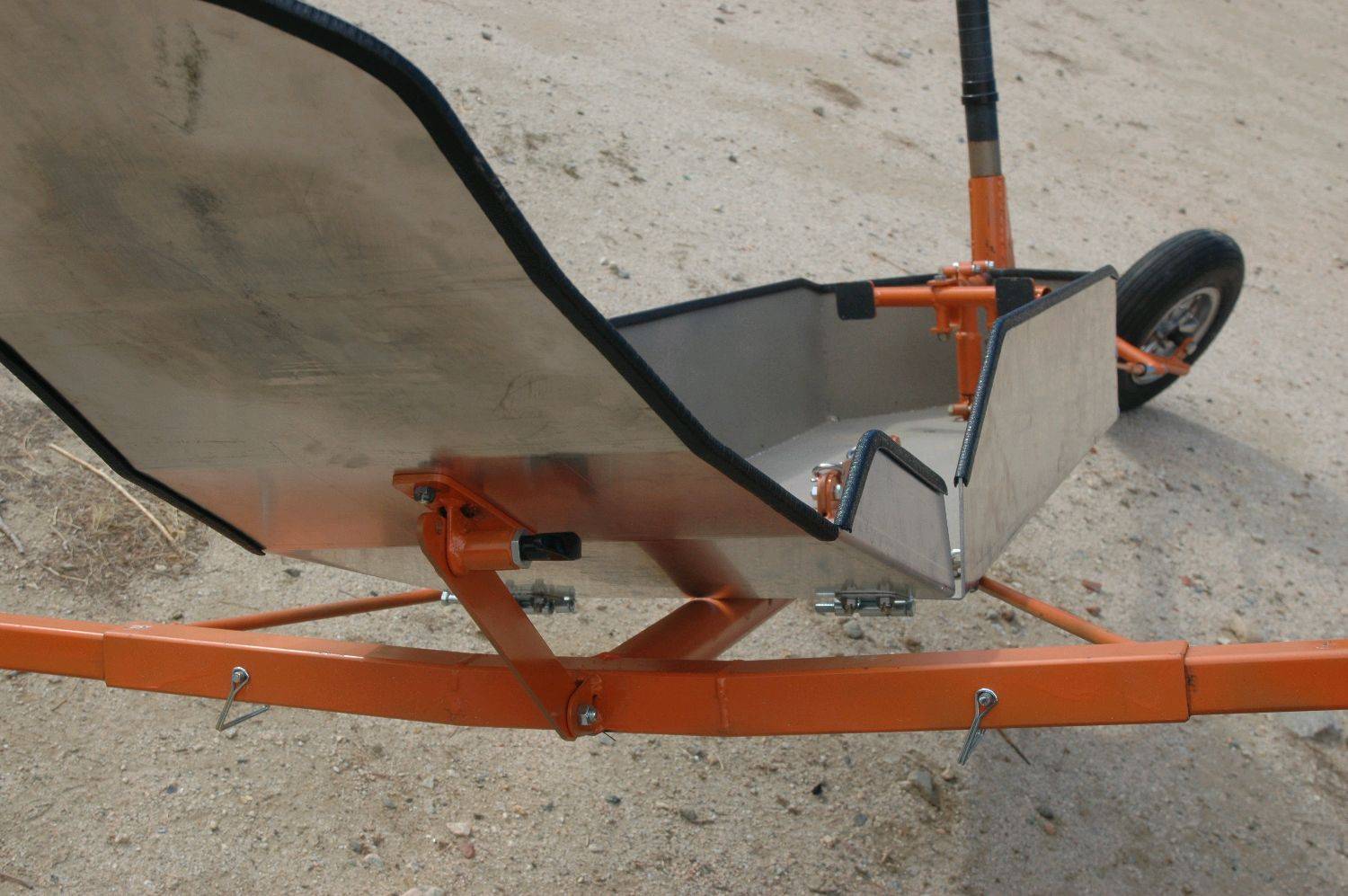

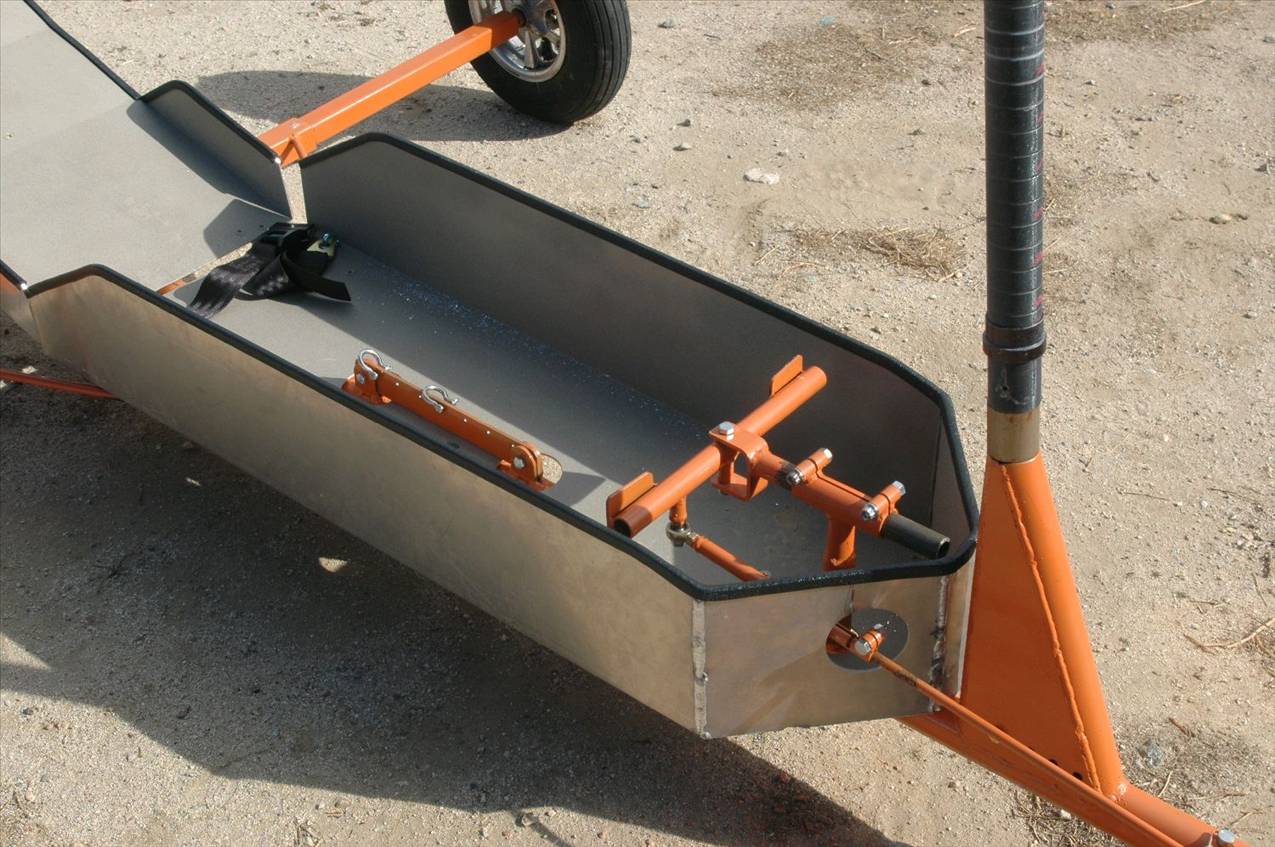

"Beer-5" Built in 2010, first sail was April 2011 due to a flooded El Mirage dry lake. Built to Cl5 size, but has a tapered carbon mast. Seat is aluminum, and the back is adjustable.

hills

1622 posts

hills

SA, 1622 posts

3 Nov 2011 8:42am

unlocked.

desertyank

1264 posts

desertyank

1264 posts

6 Nov 2011 2:59am

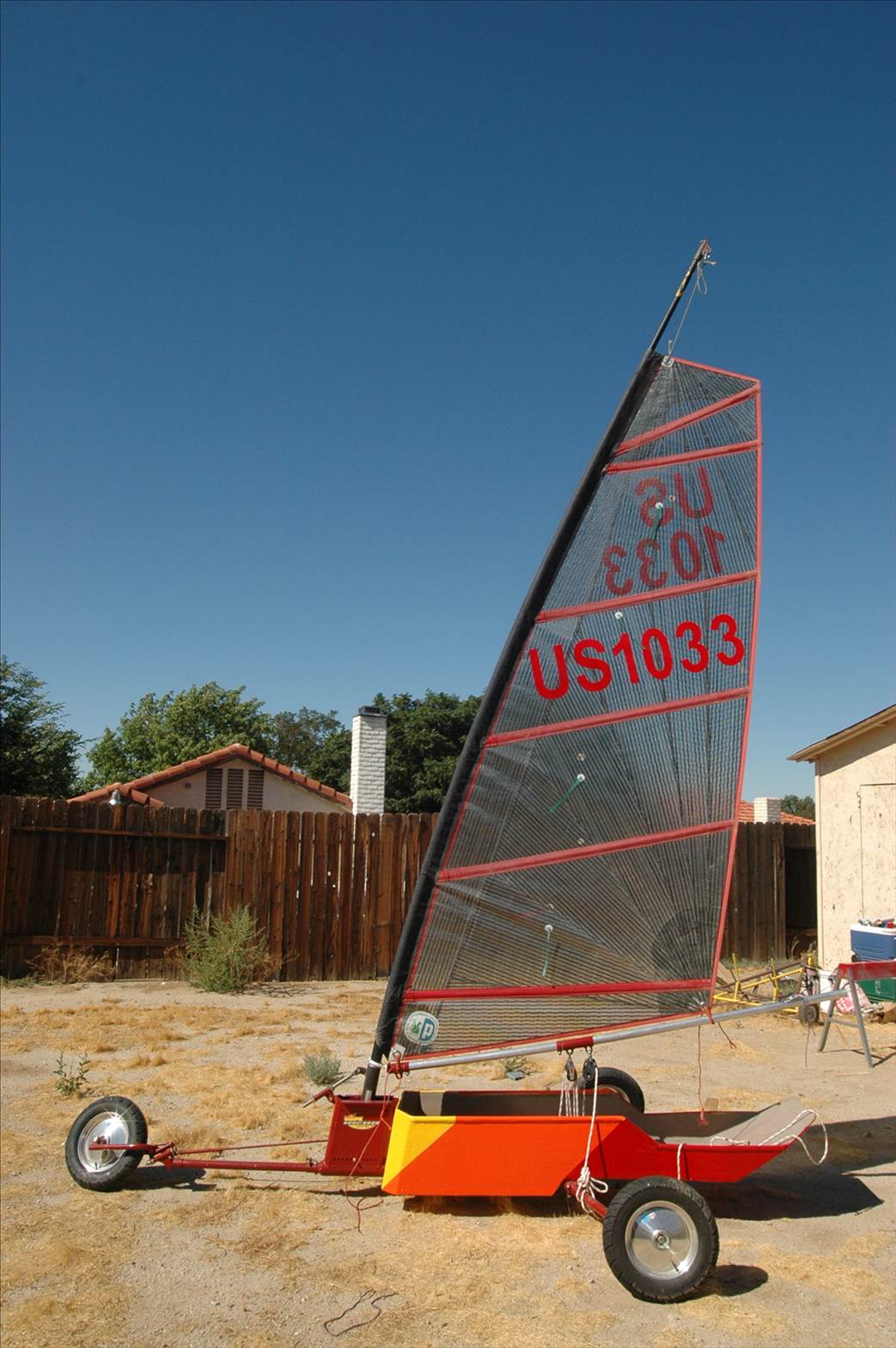

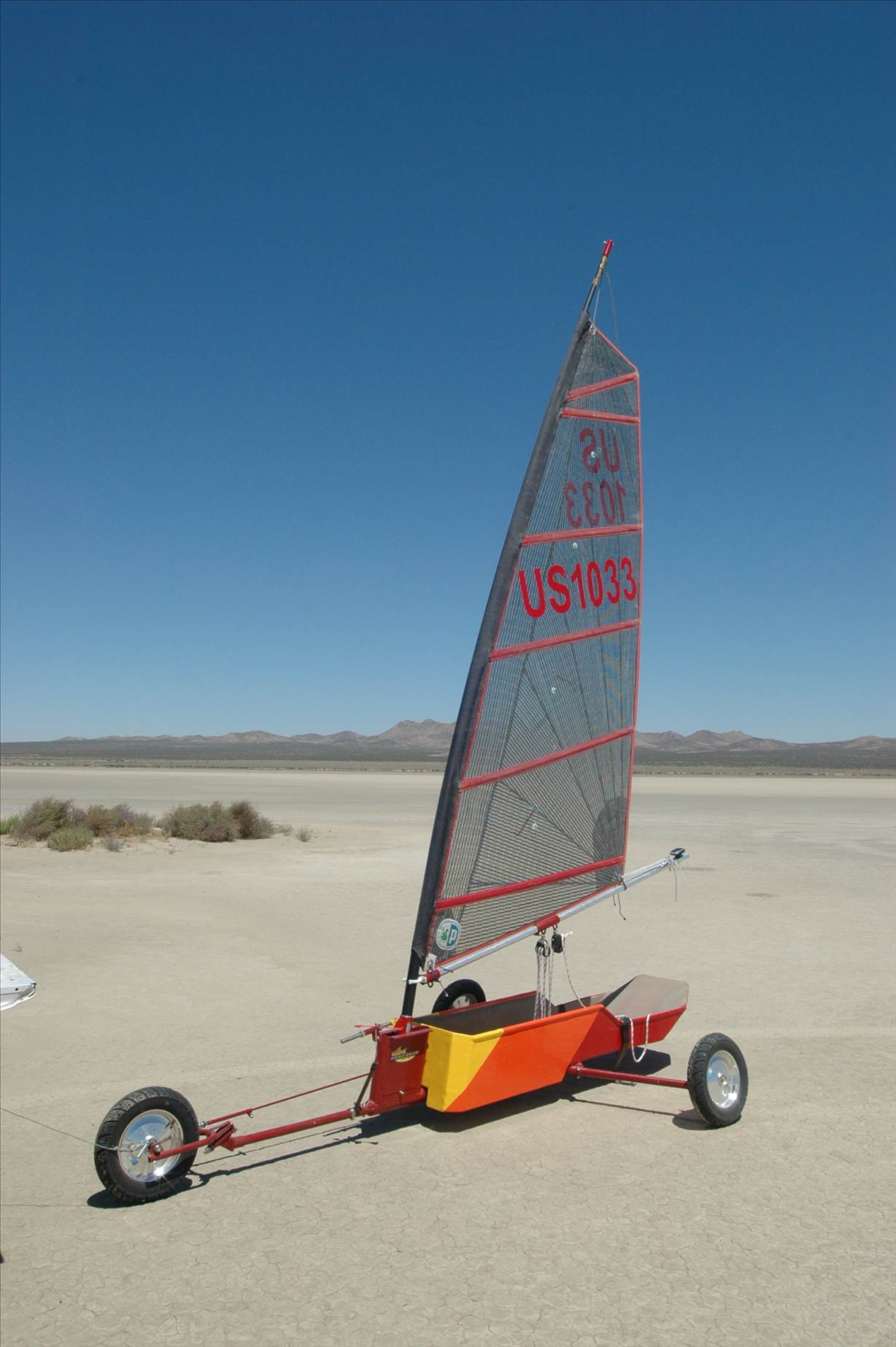

The 'Mojave Magic'. Class 5 size, adjustable mast base, swept axles, several sails in the quiver....

Local venue is El Mirage dry lake.

Nikrum

TAS

1972 posts

Nikrum

TAS, 1972 posts

6 Nov 2011 10:06am

Looks the Part 'yank but does it act the Part.. Still Pic's are one thing but How's-about some Action Footage

I will be spending a lot of time online in the next day or two and will need some entertaining.
Catch you the week after next, that should give you time to cobble something together.
Ron[}:)]

lachlan3556

VIC

1066 posts

lachlan3556

VIC, 1066 posts

12 Aug 2012 12:42pm

unlocked

aus230

1660 posts

aus230

WA, 1660 posts

12 Aug 2012 12:39pm

Thanks Lachlan
Thought that it may be a good idea to open the post again as there has been quite a few yachts built since it was last opened

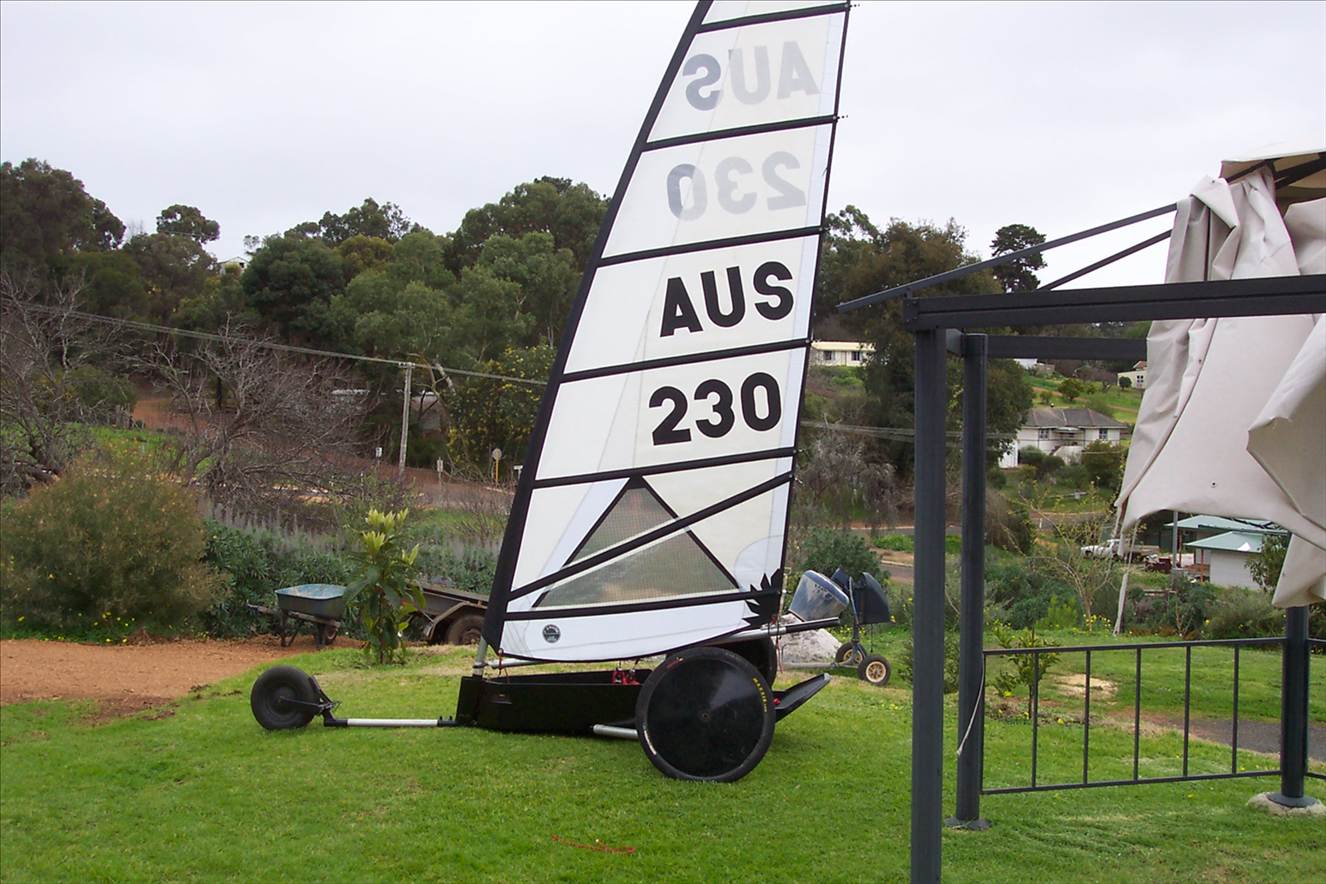

I built this class5 I built a couple of years ago, It now lives in Kalgoorlie

aus230

1660 posts

aus230

WA, 1660 posts

12 Aug 2012 12:59pm

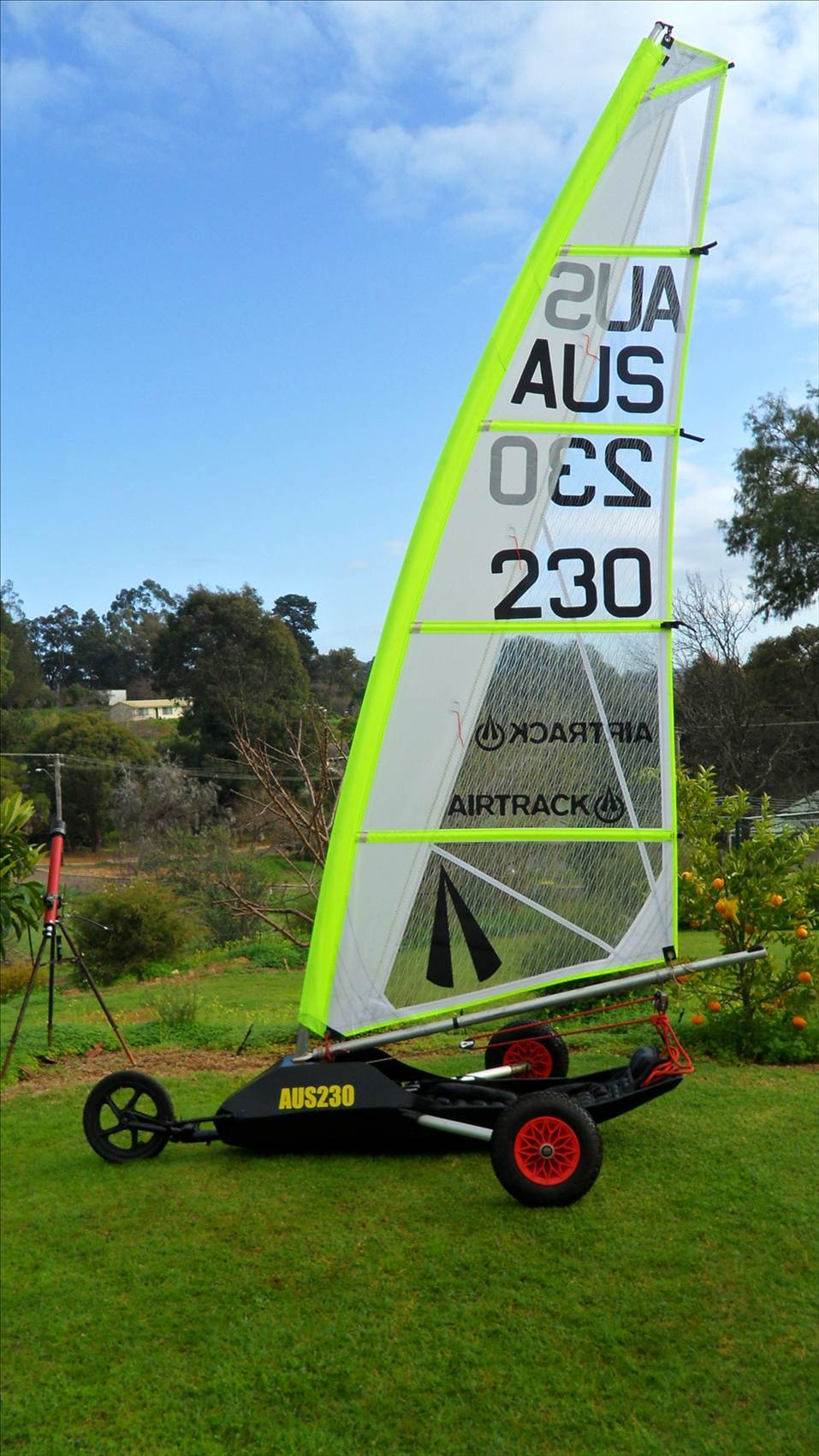

aus230 after several rebuilds.
Class5

aus230

1660 posts

aus230

WA, 1660 posts

13 Aug 2012 8:02pm

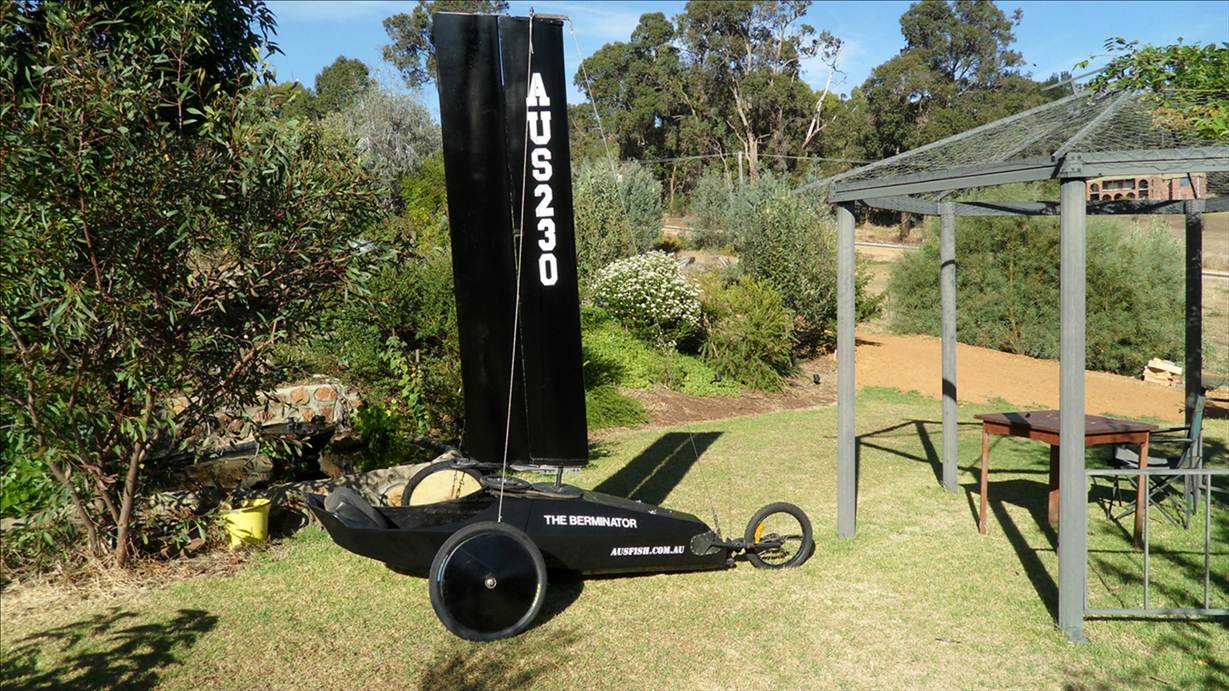

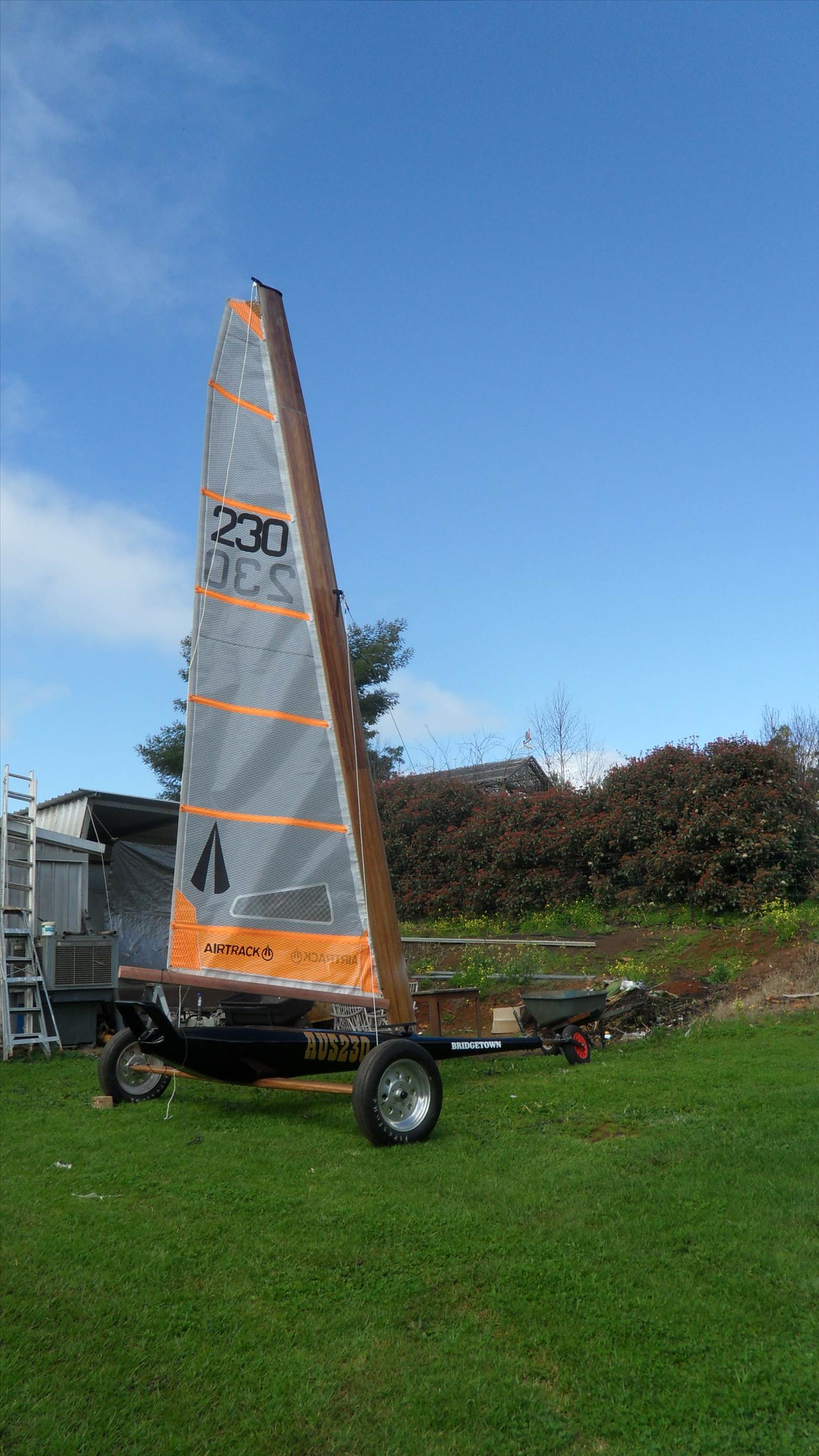

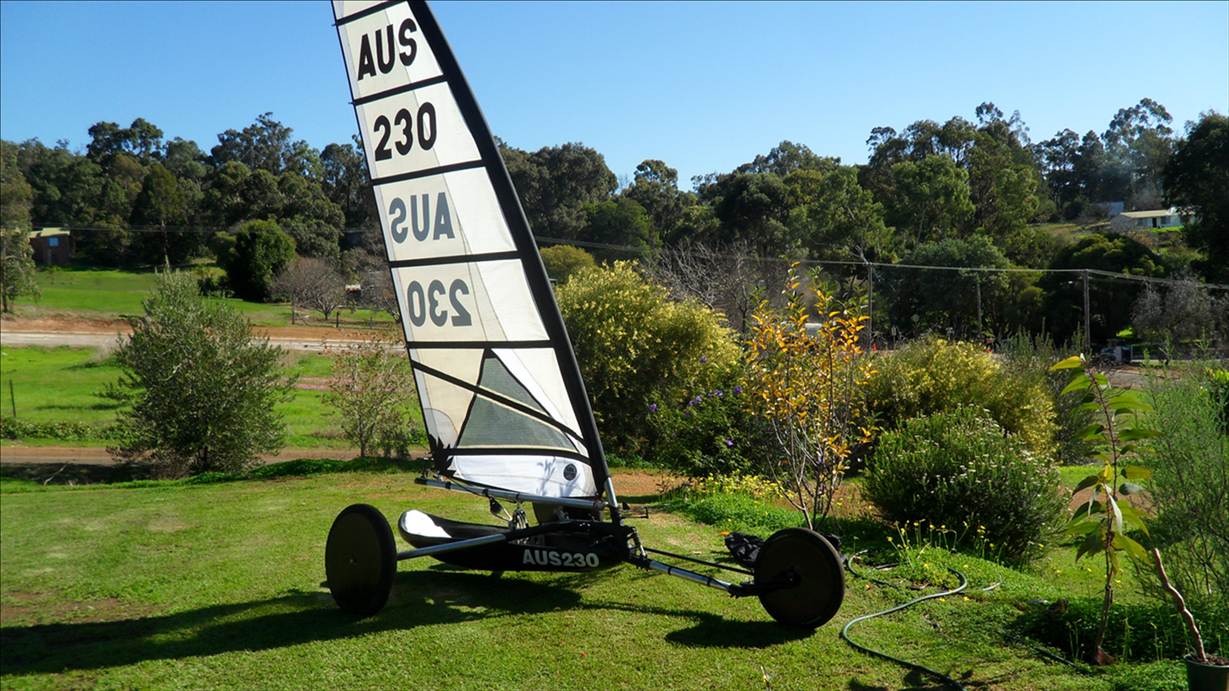

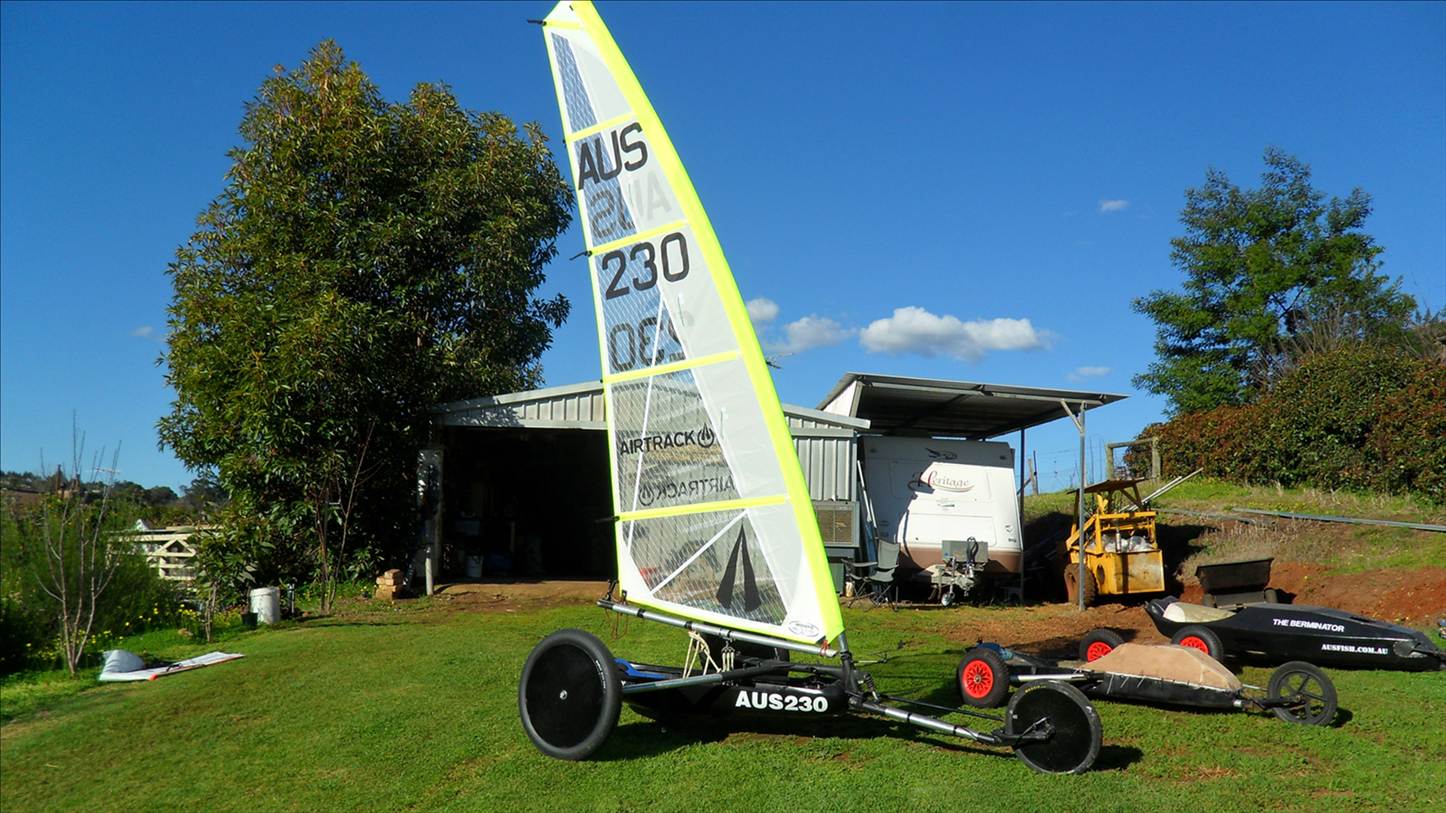

aus230 wing mini. fits the 5.6m rope rule but that is about all with the wing on. but can be converted to a standard 5.6m rope rule mini in about 10 minutes.

aus230

1660 posts

aus230

WA, 1660 posts

4 Sep 2012 10:36pm

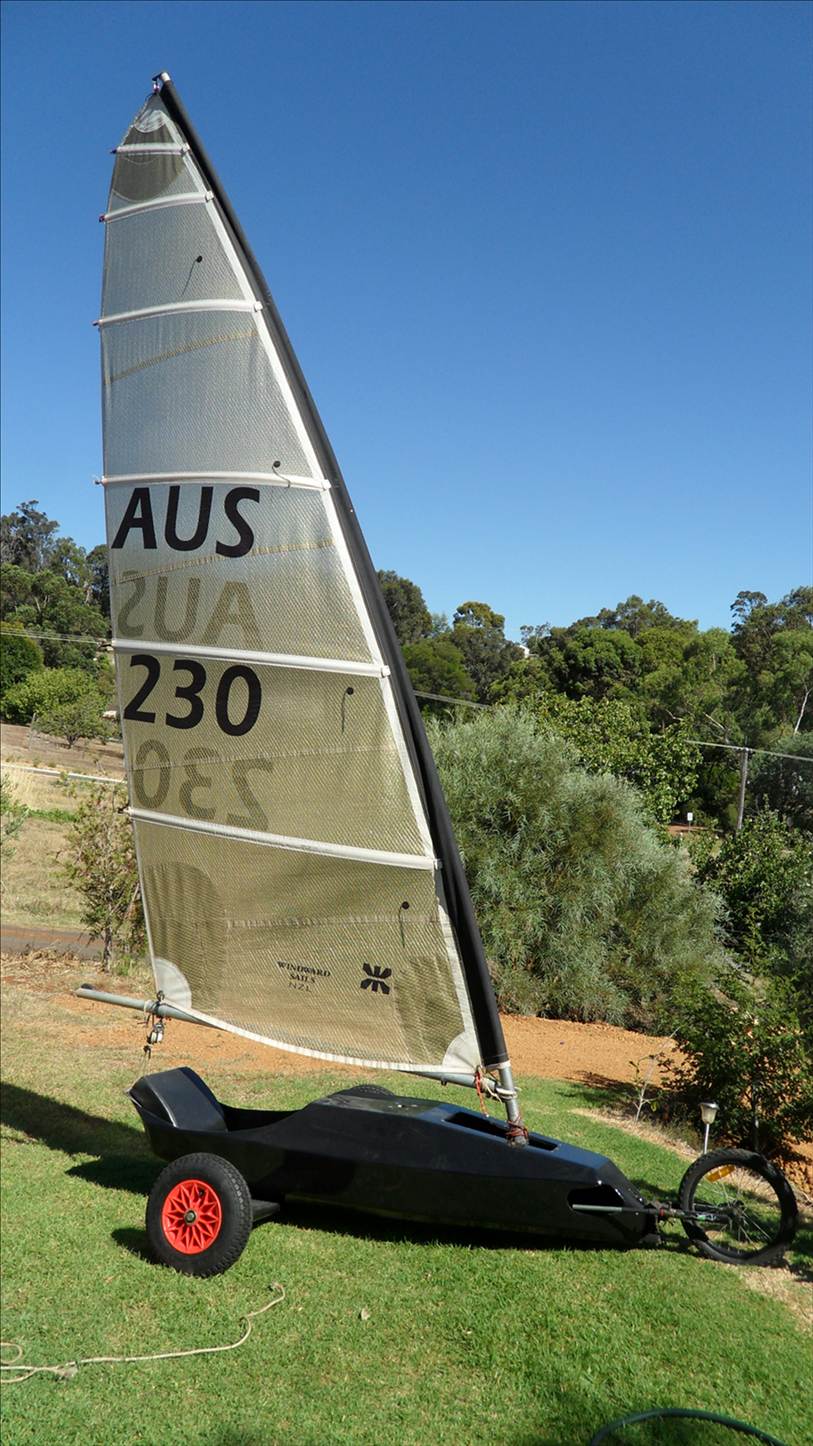

Mini aus230 rebuilt and modified to fit 5.6m rope rule

landyacht

5921 posts

landyacht

WA, 5921 posts

5 Sep 2012 8:39pm

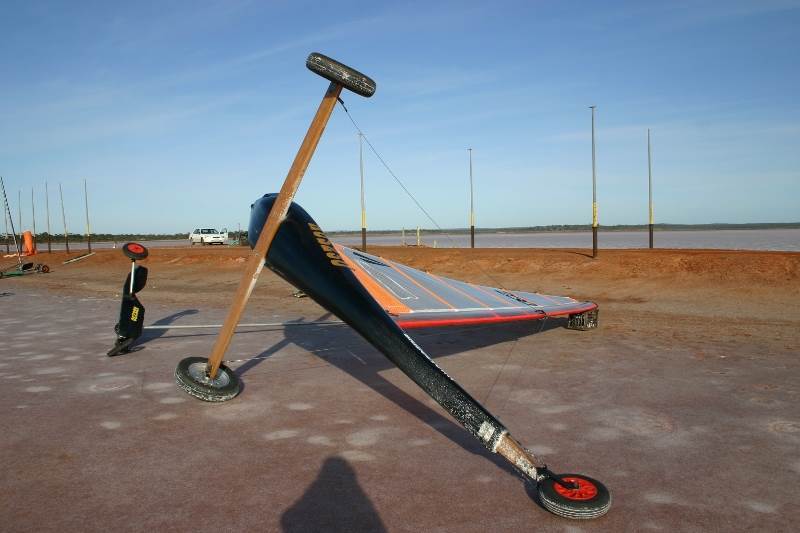

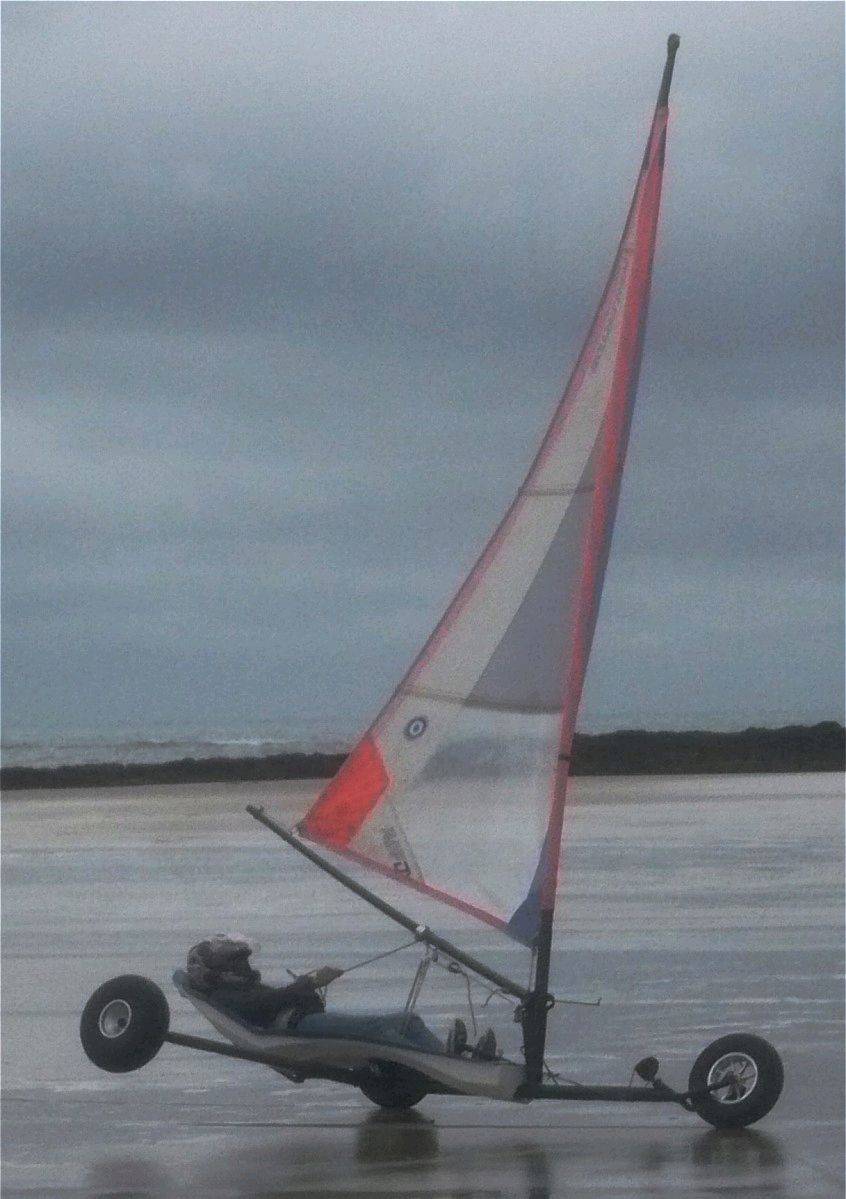

my class 5 from 2012, sailed fantastic on salt, but really awful on french beaches

landyacht

5921 posts

landyacht

WA, 5921 posts

5 Sep 2012 8:41pm

my class 5 from 2012, sailed fantastic on salt, but really awful on french beaches

and my present mini,Spirit of stupidity

lachlan3556

VIC

1066 posts

lachlan3556

VIC, 1066 posts

29 Nov 2013 8:39pm

unlocked

aus230

1660 posts

aus230

WA, 1660 posts

29 Nov 2013 9:26pm

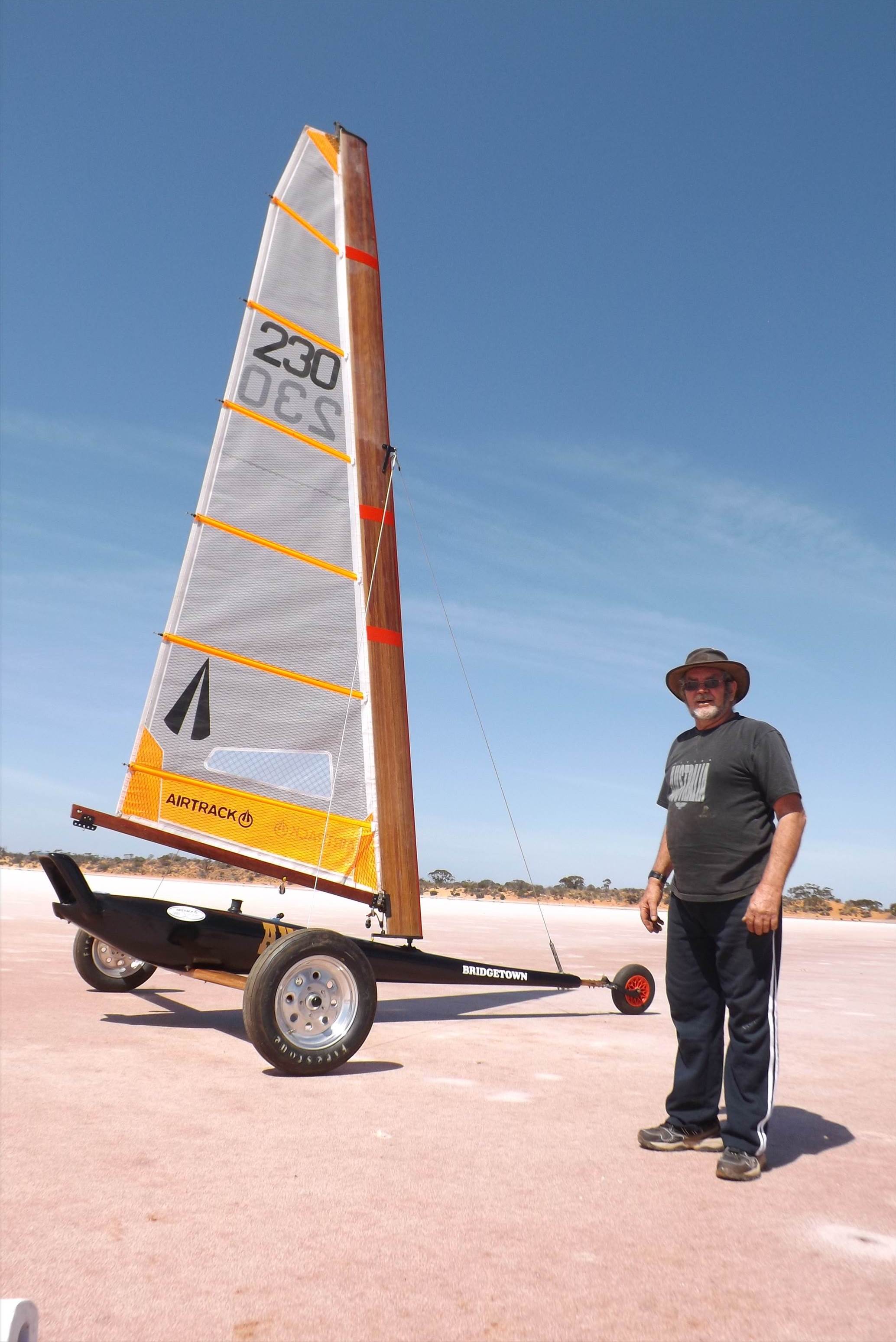

My Latest yacht
Class3
Weight 120kg (will be a bit lighter when I build a foam/fiberglass wing mast)
Width 3.5m
Length 3.8m axle to axle 5m overall
Wing mast 6m.
I would like to thank everyone who offered advice/information which helped me built this yacht.

Tartateam

6 posts

Tartateam

6 posts

4 Jan 2014 3:06am

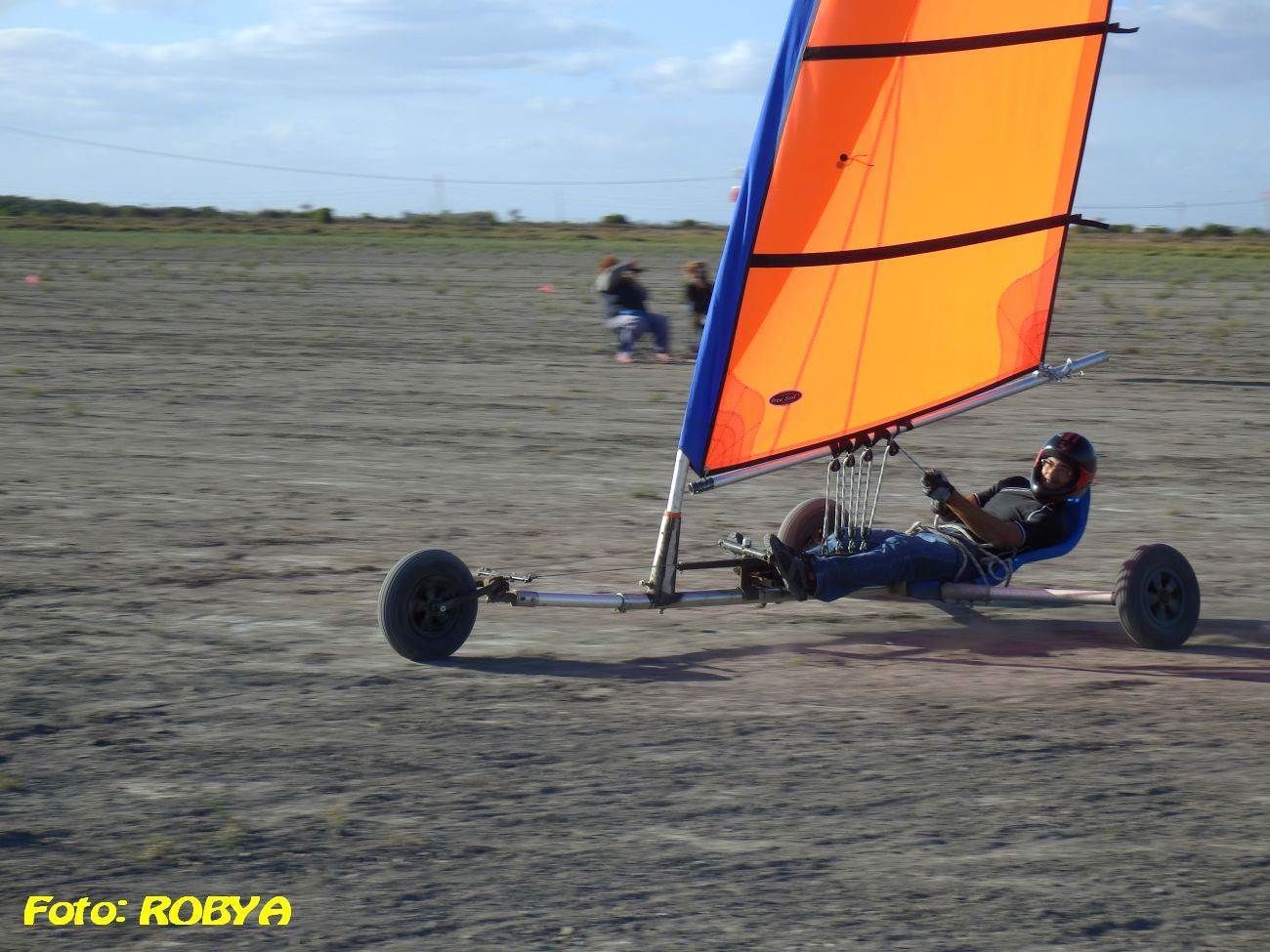

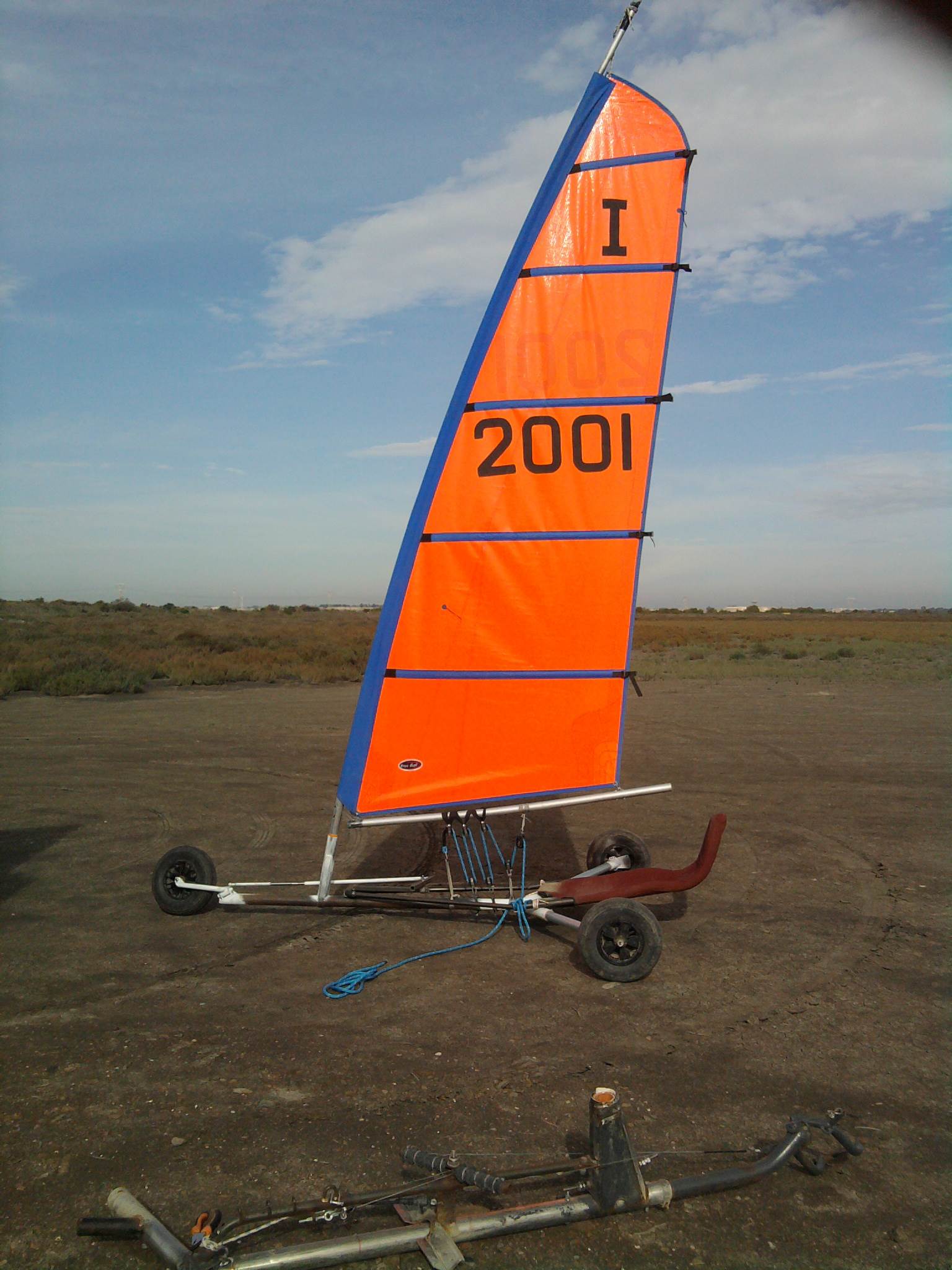

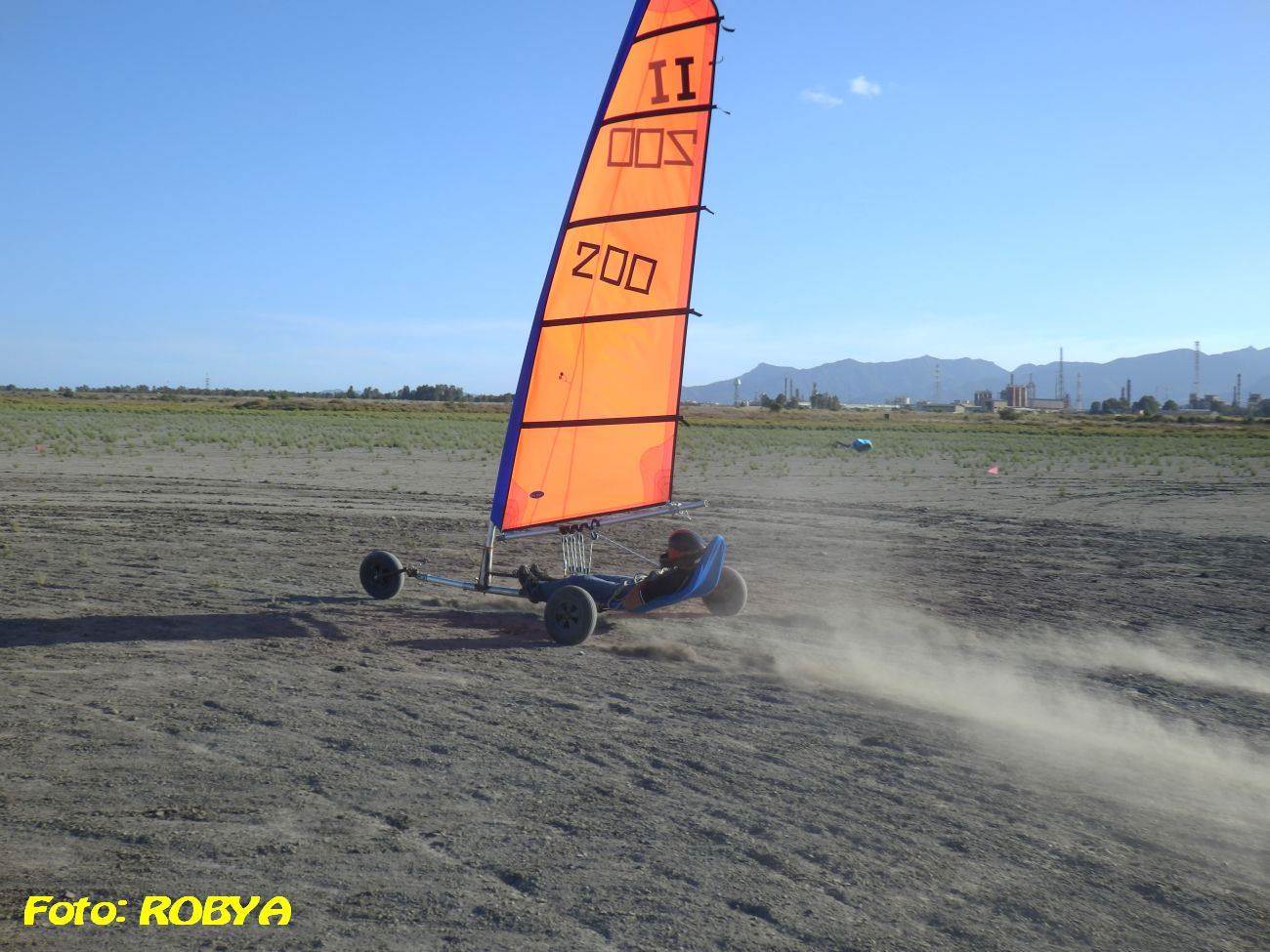

Class 5 Promo
Length 2500
Width 2000
Mast Ht - 5300
Approx sail area - 4,70 sq-mtrs
Location - Italy Sardegna
Sail Number - I200 -"Tartateam"
Built by/purchased from - selfmade from French promo class but restyled with Autocad
Comments - (success, failure, problems, transport-needs trailer, where to get parts etc etc) It sails very good and very fast and hi think it looks good
Chassis in steel axels in alu 6mm tick, standard 8" wheels.
Photo with provv seat during 1?? test
my second

My First!!
