Snow skis on my Zooter

> 10 years ago
Reply
Register to post, see what you've read, and subscribe to topics.
sabydent
sabydent
360 posts
360 posts
4 Feb 2011 7:04am
I am new to the forum. I am going to build a mini yacht, since I have only been on a landyacht once for an hour (a blokart in Bonaire) I have no experience. To help me I decided to buy a Zooter, this way I have a tested model to try out and compare to the one I build. Since it is winter in Canada I thought I would put skis on my Zooter to try it out on the lake. I would like some suggestions here is my plan.

I want to use a full length childs ski in the rear, I will make the bracket so it is simular in footprint to a ski boot. This way I will obtain the optimum design benefits of the ski. I think that when turning with the wind, the windward ski would unweight and the leeward ski would be able to flex and turn just like a normal ski turn. For the front I want to use a ski that is about 1/3 the length of a normal ski to decrease the amount of edge grab and lateral force.

Any ideas?
j murray
j murray
SA
947 posts
SA, 947 posts
4 Feb 2011 10:43am
gidday Sabi

What's a Zooter..........?
oldMXer
oldMXer
130 posts
130 posts
4 Feb 2011 9:08am
welcome to the forum, sabydent. i've put some thought and research into snow skis also, but haven't done anything yet, but some kite buggiers have. take a look at this thread from power kite forum.www.powerkiteforum.com/viewthread.php?tid=15746
Nikrum
Nikrum
TAS
1972 posts
TAS, 1972 posts
4 Feb 2011 12:16pm
From your description of a Zooter http://www.zootercompetition.com/home.html
One would also assume that the Lake you are going to use is a Frozen Snow covered lake? That should be interesting and this year should be good given the amount of snow that has fallen in the Northern North Americas. I strongly doubt that anyone has tried that here in Aus' as the Hills is pretty Rugged where the snow falls here.
Given the way skis work I think you may have a few problems to solve like;
Ski rolling over when on 2 skis, their design uses that to steer. Me thinks the rear is going to want to turn in that direction.

Keeping the Skis flat on the snow is definitely going to be a problem to solve

Pivoting will only allow the ski to roll with sideways thrust from the wind. which could bite into the snow and spit you out.

You will have a lot to overcome, put a lot of thought into this conversion..


The Zooter looks a bit tiny very much like a Kite Buggy.
www.briskites.com.au/index.php?l=product_detail&p=527

I would suggest that you have a look at building a LLF Mini and convert it to Skates. Plans in these pages.

Anyway Keep us all posted, with pic's .
regards,
Ron

landyacht
landyacht
WA
5921 posts
WA, 5921 posts
4 Feb 2011 4:28pm
i suspect laying the rear skis over by say 5 degrees with assist with inline stability and keeping in a straight line.
maybe have a look at how a skidoo front lays over into the turn to get an idea of how much the front will have to lay over to cut a turn. it should all work with a little thought. please keep us posted
sabydent
sabydent
360 posts
360 posts
6 Feb 2011 4:08am
Thanks, i think I will go with snowmobile skis as indicated. I hope I can find some cheap. My zooter arrives on Monday so I wii get at it as soon as I can. Will post photos asap. I enjoy this forum and can hardly wait to start on ny llf mini.
Nikrum
Nikrum
TAS
1972 posts
TAS, 1972 posts
6 Feb 2011 9:59am
Go For It Sabydent,
I don't know if it has been tried before but I reckon your next door neighbors may well have tried it (the ones over the boarder). It seems there is always someone over there who is willing to try something crazy or different They don't have the Darwin Awards for nothing.
How does one wish luck to Land Yachters "Break a Leg" sounds a little rough
Ron
Test pilot 1
Test pilot 1
WA
1430 posts
WA, 1430 posts
6 Feb 2011 11:13am
Ron, the term you are looking for is "break a speed record" either your own or world! [}:)]
Nikrum
Nikrum
TAS
1972 posts
TAS, 1972 posts
6 Feb 2011 4:51pm
Ahh! yes.

Ron
sheba
sheba
QLD
39 posts
QLD, 39 posts
7 Feb 2011 11:04am
Sabydent

I do hope your Zooter arrives today, I'll keep my fingers crossed. If it is coming from a Canadian distributor, you may be lucky. The Australian importer is now selling Zooters only off his web site as for one reason or another all the distributors have gone. I'm not too sure if there are any left in the USA.
sabydent
sabydent
360 posts
360 posts
8 Feb 2011 6:58am
Recieved my Zooter today. It looks pretty cool. Unfortuantely it is -25C today and the ground is snow covered. Will be shopping for snowmobile ski skins today after work, then going to the shop to put my Zooter together. Start the LLFMini build in March. Have an emergency trip to Aruba to take windsurf lessons.
Nikrum
Nikrum
TAS
1972 posts
TAS, 1972 posts
8 Feb 2011 11:49am
Columbia??
Dang is Customs going to go through you when you go home.. Don't accept no Bent Colombians.
Ron
sabydent
sabydent
360 posts
360 posts
8 Feb 2011 10:10am
Actually, Aruba is in the Caribbean just off Venezuela. Should be nice to have a 60 degree temperature change and get some wind. It will delay the start of my LLF mini but in life we sometimes have to make the tough choices.

I was able to order snowmobile ski skins for $50 a pair plus $8 each for skegs which will help the skis track. They are kind of big, so I am concerned with the tourque that will be applied to the small stainless steel steering mechanism. Hope I don't end up with a bent frame and a $1000 lesson in stupidity.

Brian
Nikrum
Nikrum
TAS
1972 posts
TAS, 1972 posts
8 Feb 2011 1:31pm
Boy! Are you ever going to notice the Temp difference coming home Just be sure to keep your Brass Monkeys in a warm place.
Yeah! I had a quick look around Aruba before I made that post. Bogata wasn't that far away so I used Columbia as a reference.. There isn't much room for Land Yachting there but some nice little beaches dotted about the Coast Line to the South.]
So have an enjoyable time Keep the Board off the rocks and go for it.
Ron
sabydent
sabydent
360 posts
360 posts
5 Mar 2011 8:07am

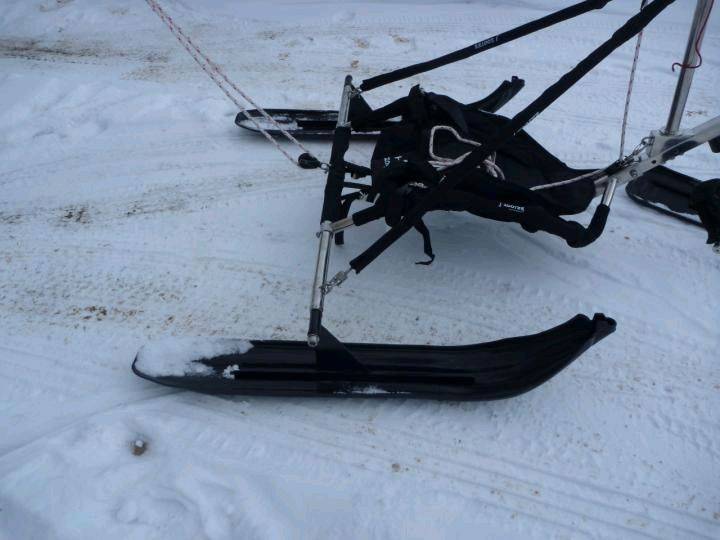

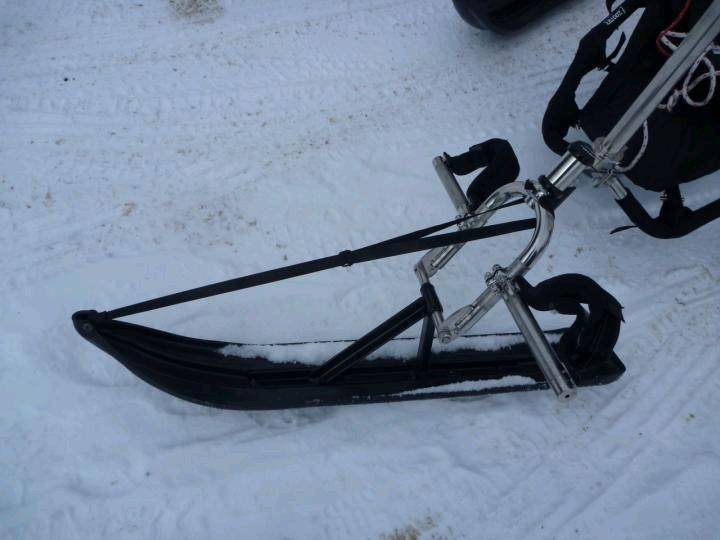

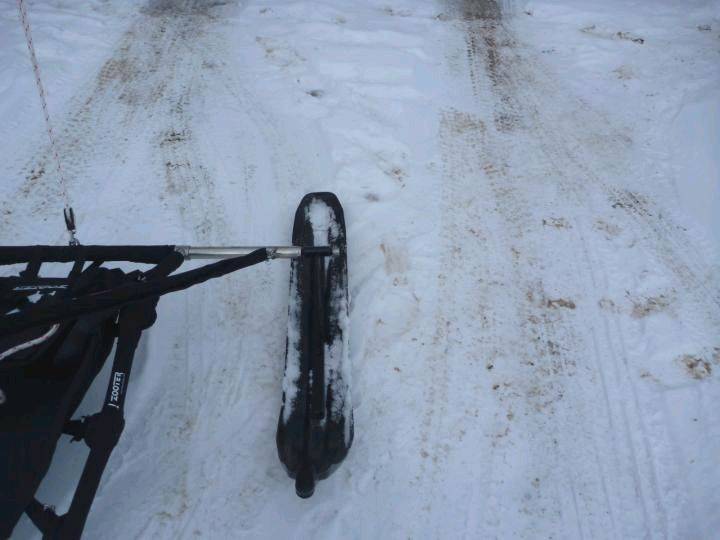

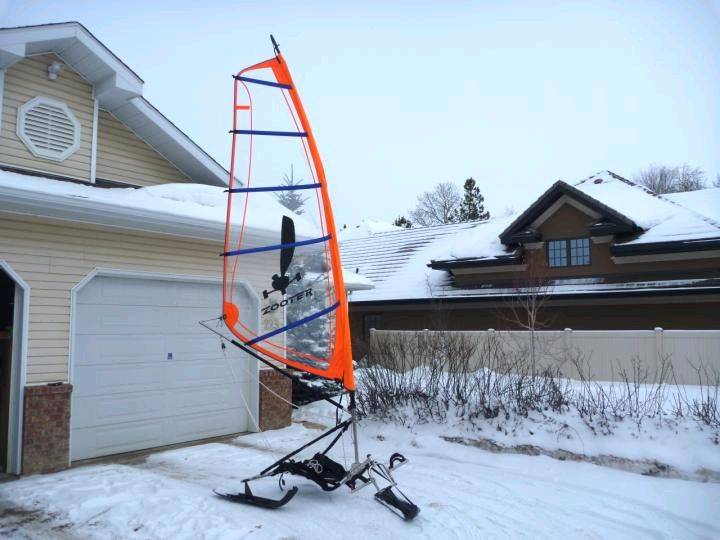

Just finished the skis for my zooter. I used plastic ski skins from a snowmobile and welded up a rig to attach them to the axles. Because the bolts for the axles need to be tight, I had to make a bushing to allow rotation. I used two pieces of pipe that fit inside each other, then made a welded washer to keep the inside pipe from sliding. For the rear skis I used angle iron and 1/4 inch steel. For the front I used angle iron (I ran out of plate steel). It all came together pretty good, I am now waiting for the weather to turn as it is -25 C right now. It is supposed to be a balmy -15 tomorrow with 17km/hr wind so I can hopefully give it a try.

Thanks for all your help.

brian




Nikrum
Nikrum
TAS
1972 posts
TAS, 1972 posts
5 Mar 2011 1:12pm
Doooooood! Lookin' Gooooood!,

Yup it looks Mighty Fine to me and those skis? I had my doubts as I was thinking Kiddies Snow Skis..
Main Point is; "How does the Beast function?" and why have you Not posted her underway??
Ron
sabydent
sabydent
360 posts
360 posts
5 Mar 2011 12:32pm
Too friking cold. Will post photos when I get a chance to try it.

Brian
lachlan3556
lachlan3556
VIC
1066 posts
VIC, 1066 posts
5 Mar 2011 9:33pm
First thing I thought when I saw it was 'looks like a UFO'. With any luck this will be true for any spectators you get (emphasizing the F part)
Nikrum
Nikrum
TAS
1972 posts
TAS, 1972 posts
5 Mar 2011 11:42pm
TOO COLD To Frikin' Cold Damn! Are you Canadians Soft Ass's or Summit? Get yer Bleedin' Act together Son and get out there 'n' Have Some Fun!!
Ron
landyacht
landyacht
WA
5921 posts
WA, 5921 posts
6 Mar 2011 8:15pm
that looks like it may actually do the job
sabydent
sabydent
360 posts
360 posts
11 Apr 2011 10:26pm
I took this rig out to the lake last week, the wind was only 13kpm. I rigged up, got in and sheeted in. I then sat there with no movement at all. The wind was not strong enough to overcome the friction. Fortunately, I was by myself with no one around. This was the only wind we have had since I made the skis. Obviously the weather gods are not smiling at me. Now the snow is going and the ice is too rotten to try it out. Next year I guess. Fortunately, the pavement is clearing so I can go out with the wheels on.
landyacht
landyacht
WA
5921 posts
WA, 5921 posts
12 Apr 2011 7:43pm
sabydent said...

I took this rig out to the lake last week, the wind was only 13kpm. I rigged up, got in and sheeted in. I then sat there with no movement at all. The wind was not strong enough to overcome the friction. Fortunately, I was by myself with no one around. This was the only wind we have had since I made the skis. Obviously the weather gods are not smiling at me. Now the snow is going and the ice is too rotten to try it out. Next year I guess. Fortunately, the pavement is clearing so I can go out with the wheels on.


good to see positive thinking, you are becoming a landsailor
often you need to run and push to get going even on really smooth salt, thats not a big sail youve got after all. in thos elight conditions it is often only possible to sail upwind too, downwind just dies( something to remember)
Zootersucks
Zootersucks
5 posts
5 posts
13 Apr 2011 1:12am
I used to be the Distributor for Zooter in the UK and I discovered the welding is very dodgy making the buggy extremely dangerous. I would stay as far away from Zooters as possible.
