landyacht said..

they will need to be made from a harder plastic,or even brass. Ive tried steelaluminiumpolyeurathane

nylon was best

As far as plastics goes, Acetal is the go!. It is basically a self lubricating plastic, and machines fantastically, (Stinks though!).
I am lucky enough to have access to quite a few bar ends at work, (for a little while longer at least), so i don't know what it costs.
I've used it for the steering bushed in the couple of builds that i really should get back to, and it is what the blocks i built are made from. (also convinced by dad to use it in one of his rocking horses and he hasn't looked back!)

OK guys, the bushings are in the freezer next to some bean soup. I won't be able to give them a try for a couple of days (so many social engagements, so little time).

Grlynch,
Thanks for the tip on Acetal. I'll have to check it out. Those blocks look great! Did you put up a thread about making those?

Windcrazy,
Sent you an email regarding places to stay.

Sorry Windcrazy, that was my first attempt at sending mail through Seabreeze.

Breezers, if I click on Windcrazy's name then the "Send email to member" link, will that go to his regular email, or show up under his "my messages" link at the top right of the Seabreeze web page?

Thanks!

For some reason the e-mail part of this is not working. My e-mail mrnmrsb2@msn.com
Thanks

Thanks for the tip on Acetal. I'll have to check it out. Those blocks look great! Did you put up a thread about making those?

I don't think i went into detail in my build thread, however i'm pretty sure i have photo's of them in stages. I'll have a squizz.

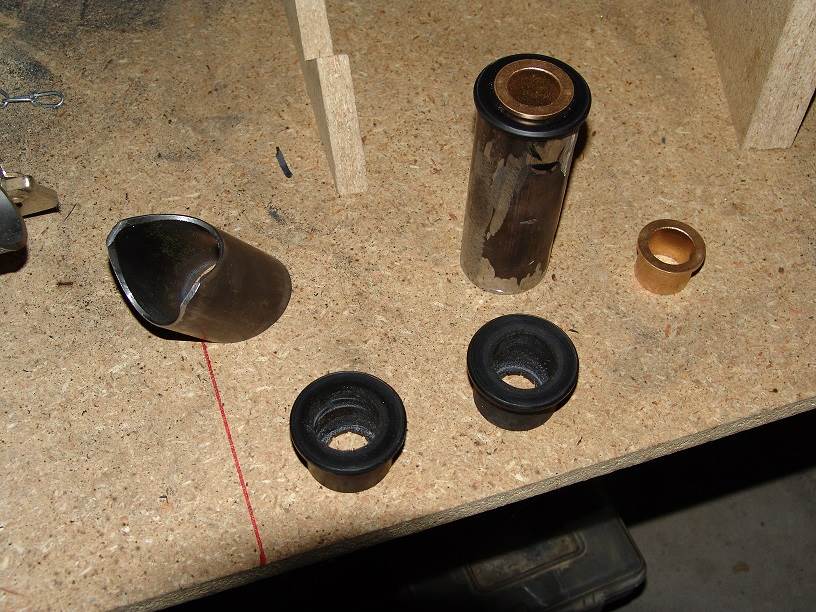

Here's the bushings, bracket, and gooseneck. Freezing the bushings definitely helped with being able to put the bushing in the vice, and not having it distort. I'm not sure if it actually cut better, as I didn't try one without freezing, but it went very smoothly. Thanks for the tip! I used a forstner bit in my drill press to bore out the polyurethane to accept the 1 1/4" (32mm) bronze bushings. Below you can see the bracket, the bored out bushings, and the bushings installed in the gooseneck. I cut three polyurethane bushings, because my first one was a bit off center.

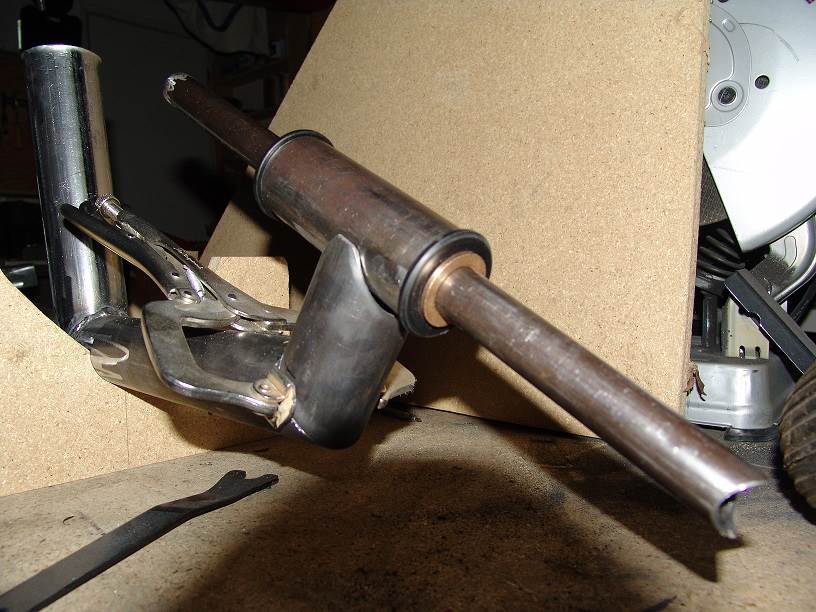

Here's the whole assembly very loosely mocked up.

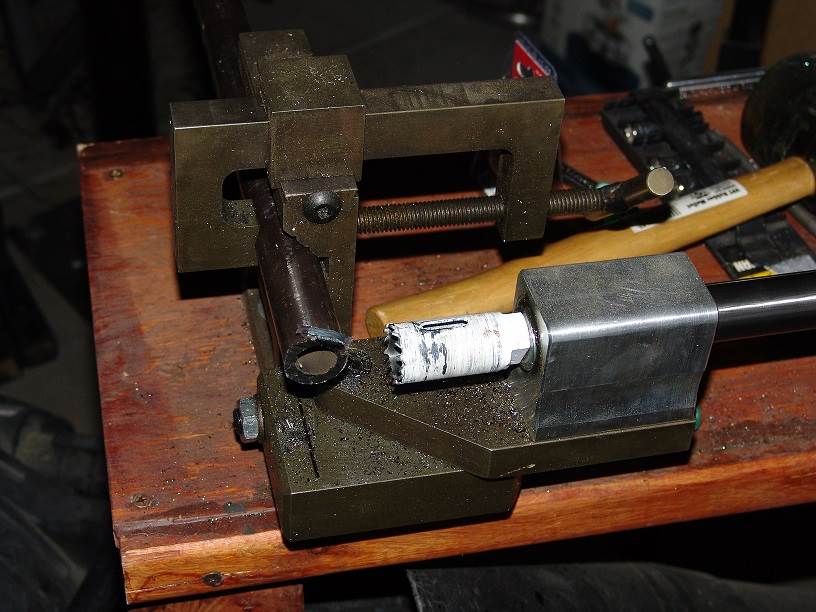

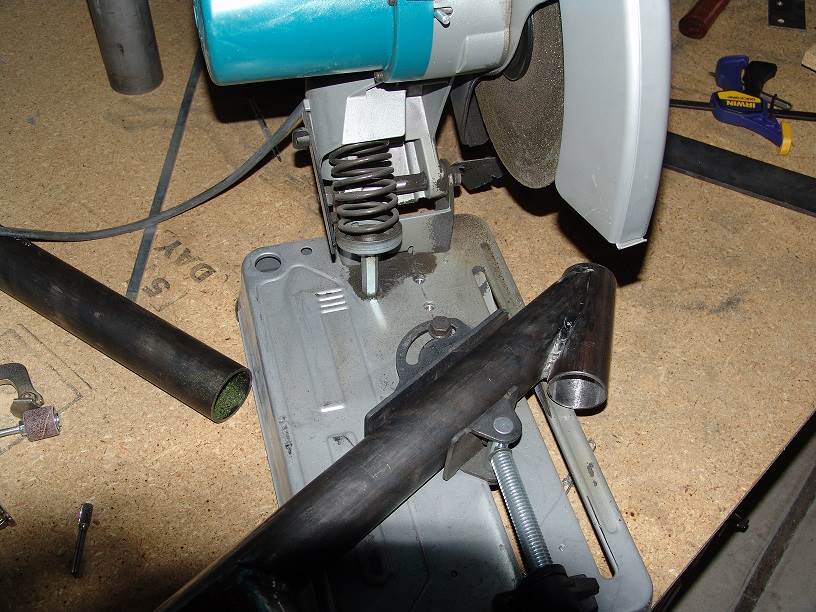

The larger bronze bushings allowed me to use a thicker stem of 1" (25.4mm) x 1/8" (3mm) DOM. Below I'm notching the end of a piece of tubing to use as a stem. The notch will mate with the 'U' shaped fork of the same material.

I love seeing a true craftsman at work

GrLynch

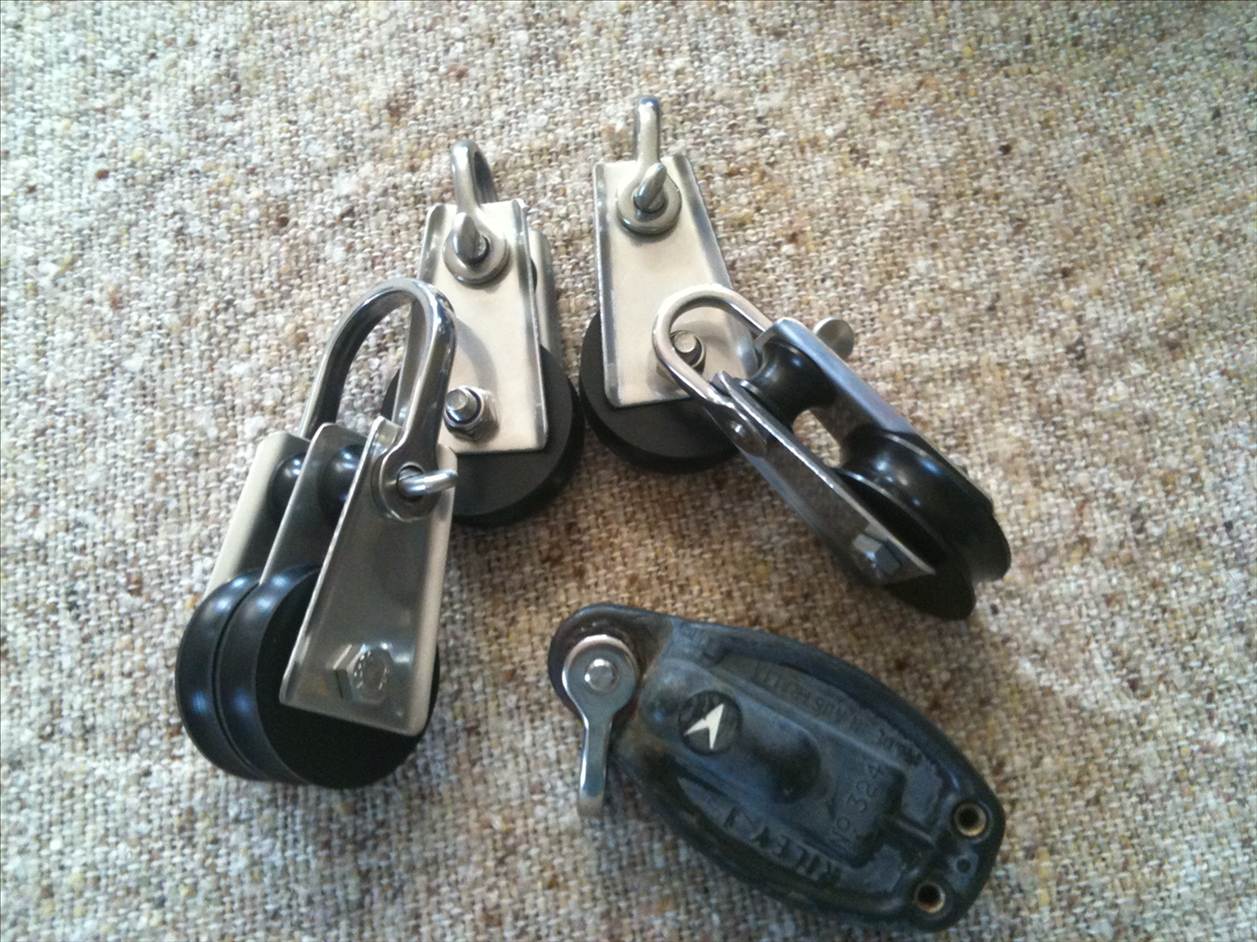

Great job on the blocks They look the part and must have saved some $$$s
I have made blocks before but have always used bought sheaves as I never had a lathe
but now I do have access to one so some more might be in my future

Hiko said..

Ursa Major that notching machine looks interesting I havent seen anything quite like it
Could we have another view of it ? how does the hole saw get fed in to the tube ?

http://www.northerntool.com/shop/tools/product_634_634?cm_mmc=Google-pla-_-Metal%20Fabrication-_-Pipe%20%2B%20Bar%20Fabrication-_-152391&ci_src=17588969&ci_sku=152391&gclid=CNri2JrTqrgCFQHZQgodM2IAkQ

Not quite like his, but i have one and it works well. You can use it on a drill press, or use a hand drill. There are other brands, but they all use hole saws.

desertyank said..

Hiko said..

Ursa Major that notching machine looks interesting I havent seen anything quite like it
Could we have another view of it ? how does the hole saw get fed in to the tube ?

http://www.northerntool.com/shop/tools/product_634_634?cm_mmc=Google-pla-_-Metal%20Fabrication-_-Pipe%20%2B%20Bar%20Fabrication-_-152391&ci_src=17588969&ci_sku=152391&gclid=CNri2JrTqrgCFQHZQgodM2IAkQ

Not quite like his, but i have one and it works well. You can use it on a drill press, or use a hand drill. There are other brands, but they all use hole saws.

Trust you John, Everyone else is studying the Workmanship and you go looking at the machinery.. Typical Anal Retentive YANK! Trying to find ways to improve the finish of the product.. If it don't look factory made OR BETTER then it ain't good enough.

Try the Aussie way some time, If if it works then "Near enough is Good Enough"
Ron

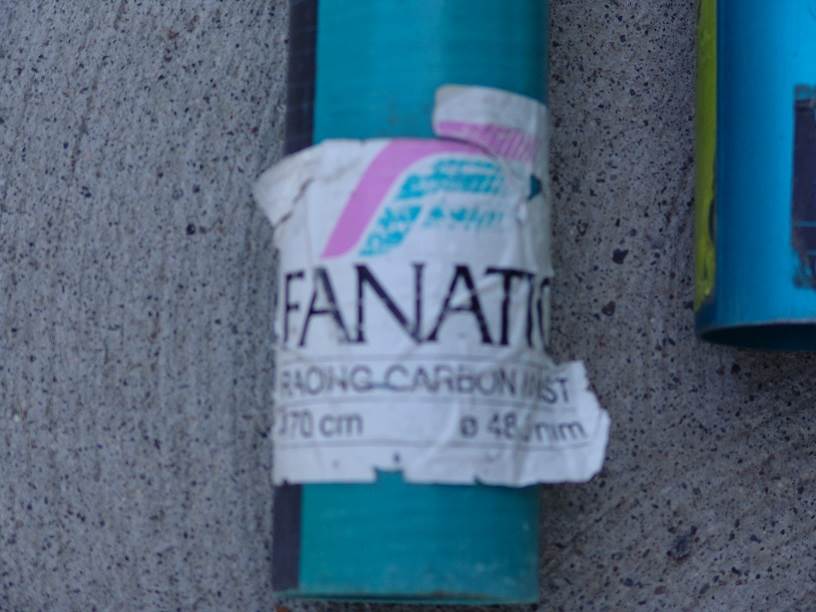

Thanks for all the comments guys. With holidays and the ridiculous heat we've been having I haven't been at it much. But I haven't been completely idle. I welded up the gooseneck, and have sized up the forks. I'll try to get those forks finished and the seat brackets welded up today. I also made a Craigslist score on 3 sails and two masts.

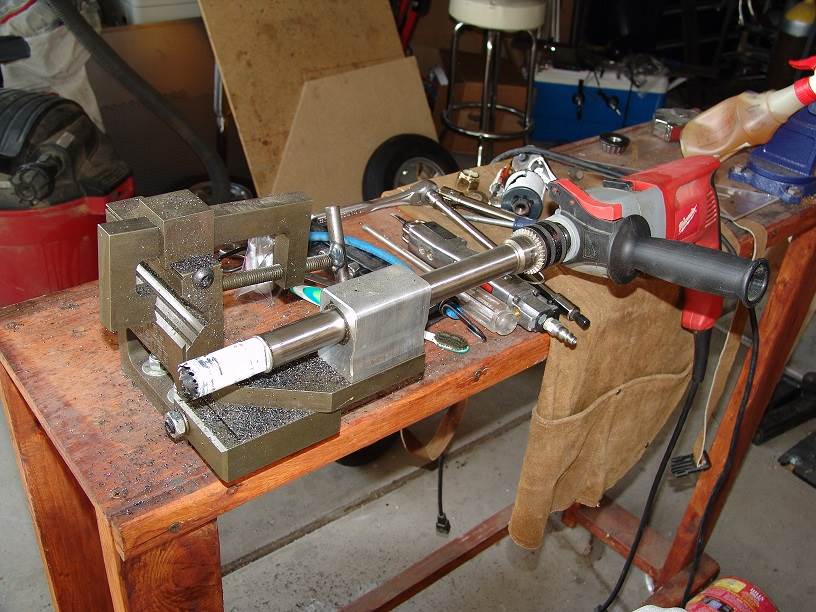

Hiko, I'll get another picture of the notcher tonight, but it's very similar to what Desertyank posted up. The chrome rod exiting the pic on the right has a drill motor attached to the other end, and rides through the big silver block pushing the hole saw into the tubing. It works very well, but is a little tricky to adjust.

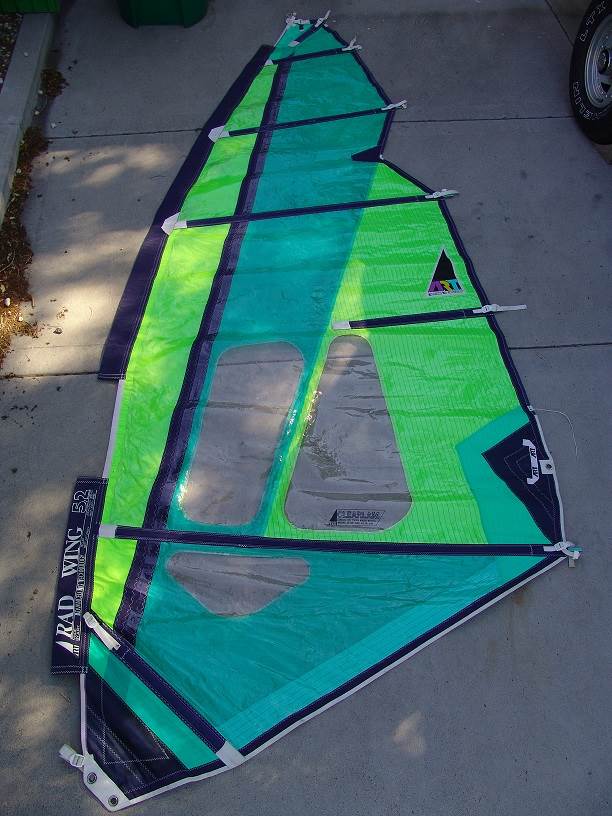

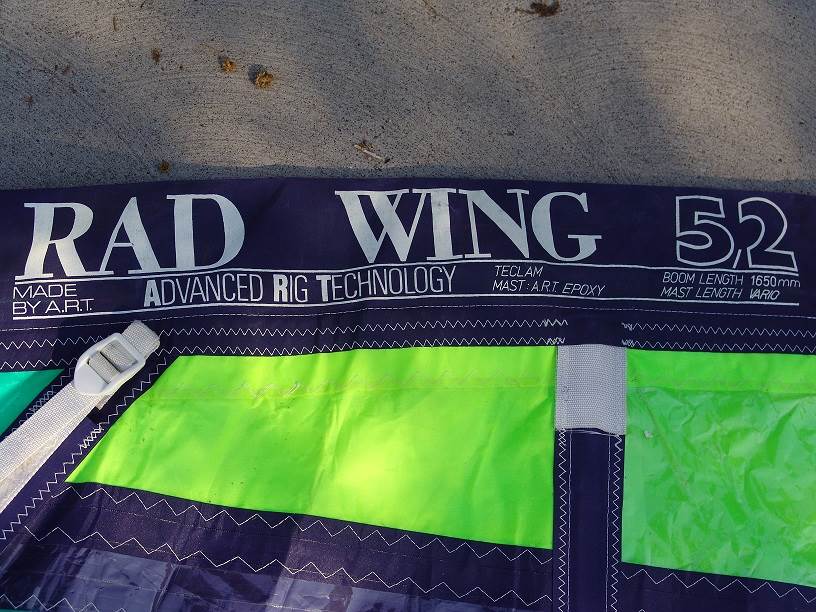

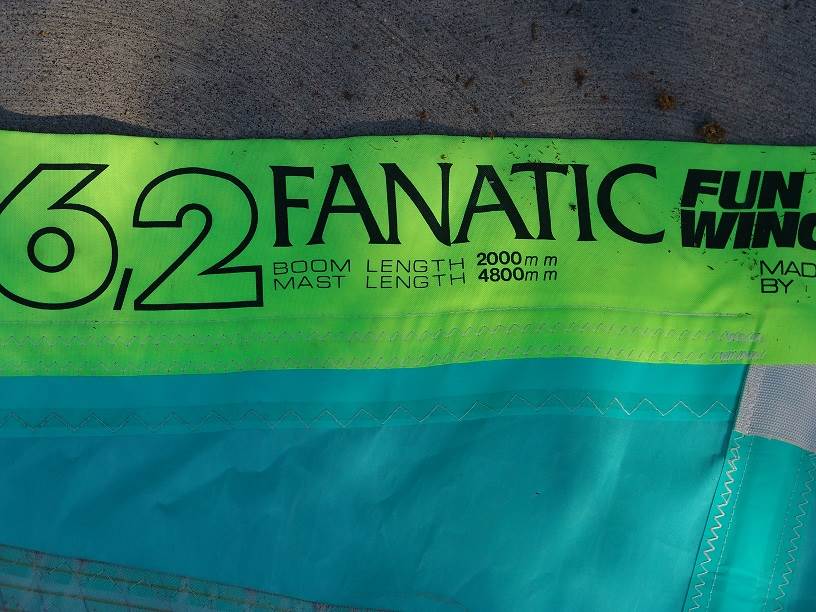

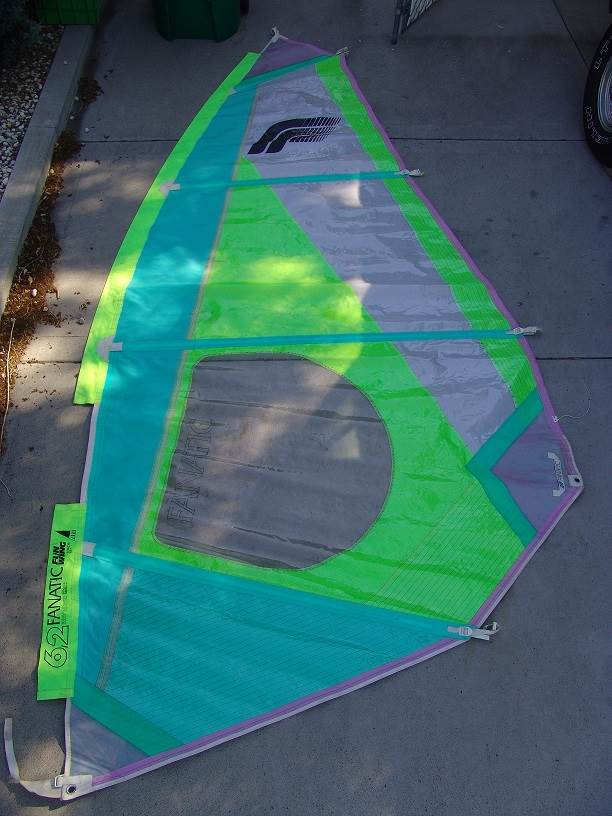

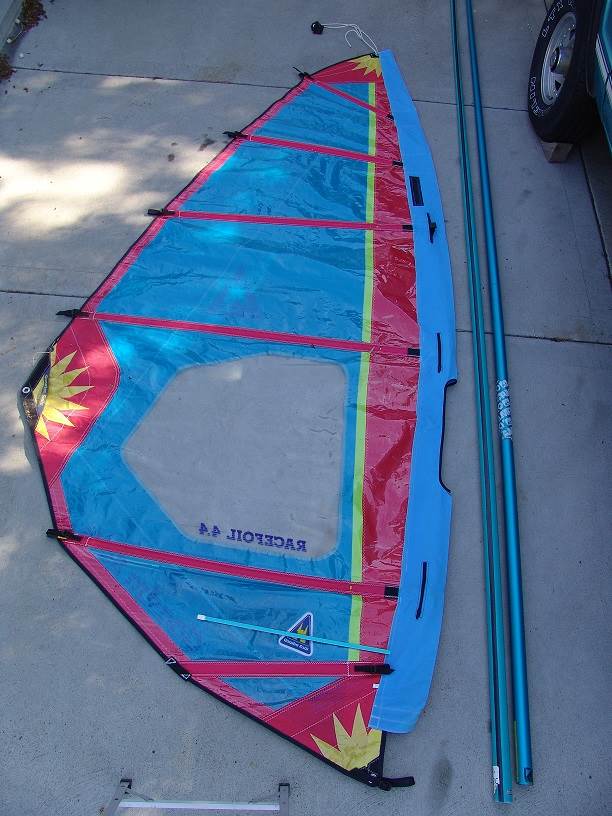

Here's the three sails I picked up. The first is another big boy that I'll have to cut down a bit.

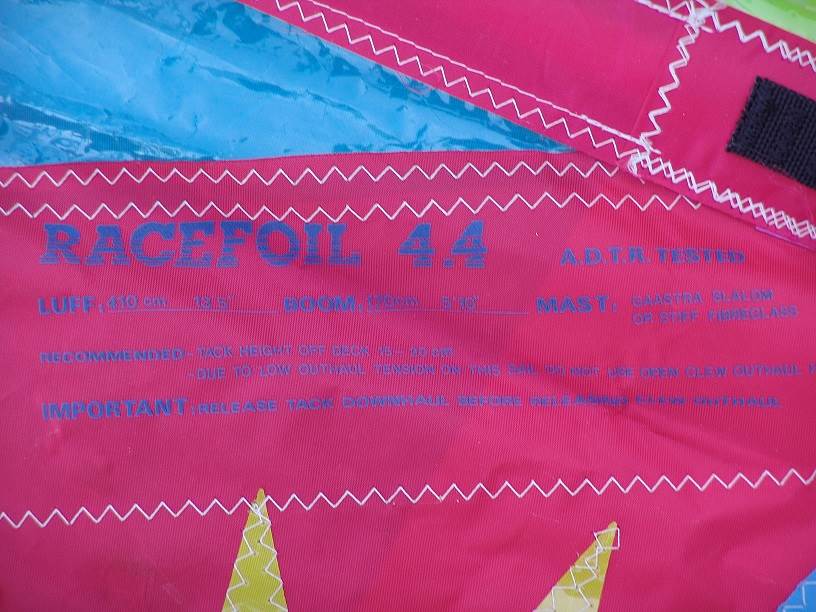

And some details:



This guy's got an interesting notch in the leech:

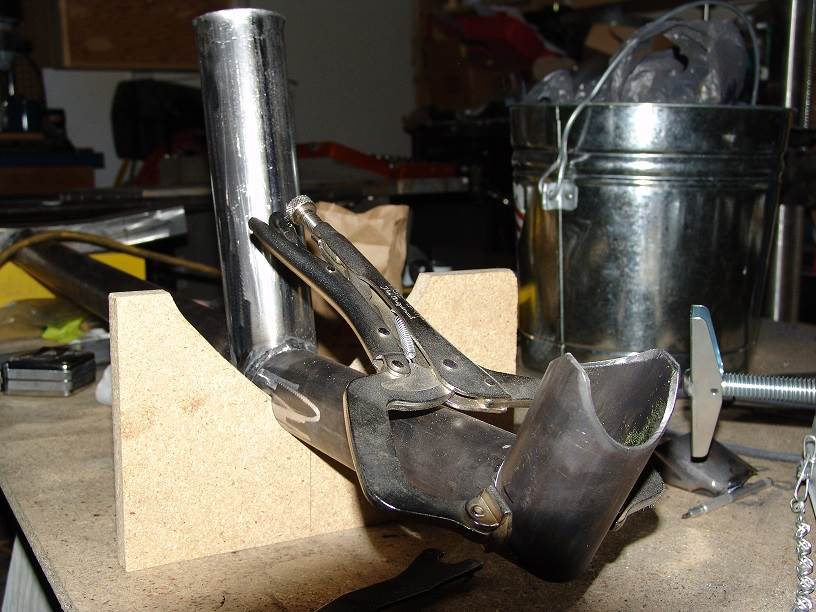

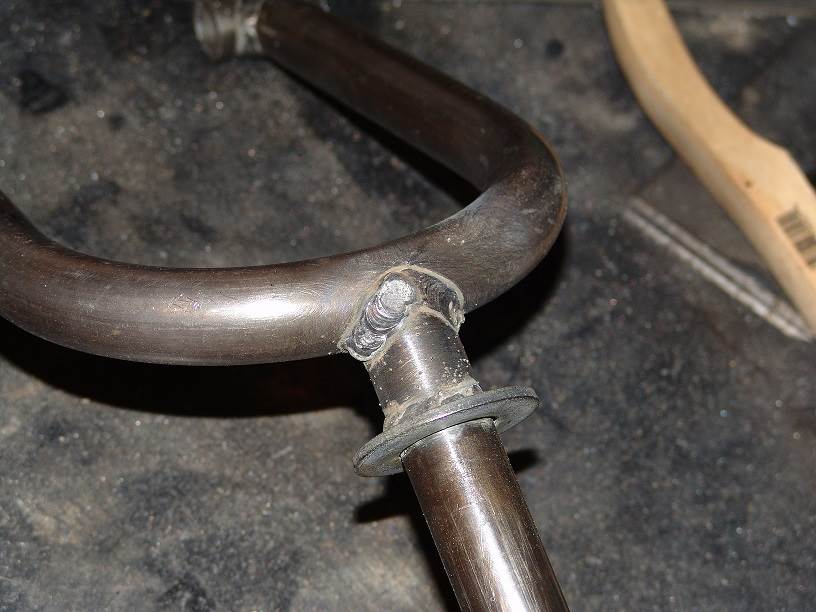

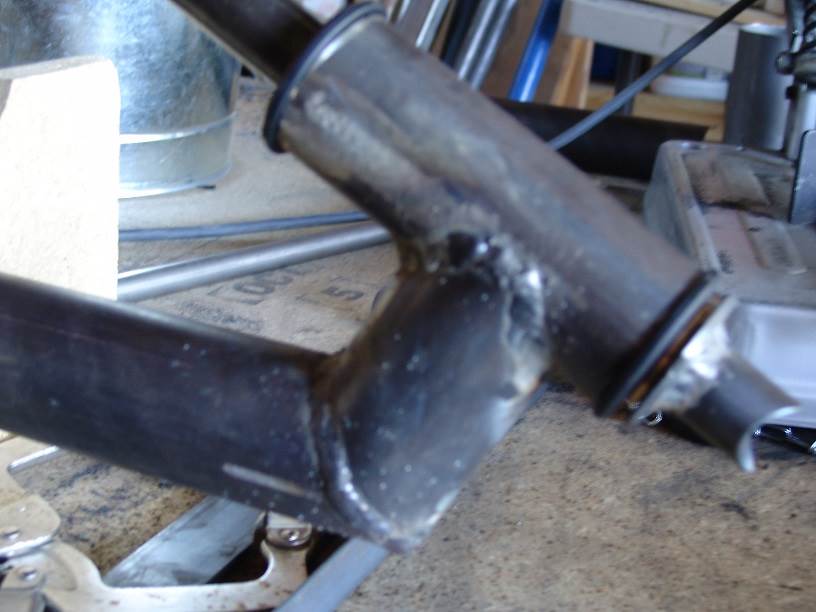

And a slightly out of focus shot of the gooseneck. I think i might add a gusset between the "bend" in the main tube and the gooseneck. Will make more progress today! You can see the lip of the bronze bushing between the washer welded to the stem and the black lip of the polyurethane bushing.

Landyacht, thanks for the advice on the sails. I probably won't do more than try to even out the bottoms then.

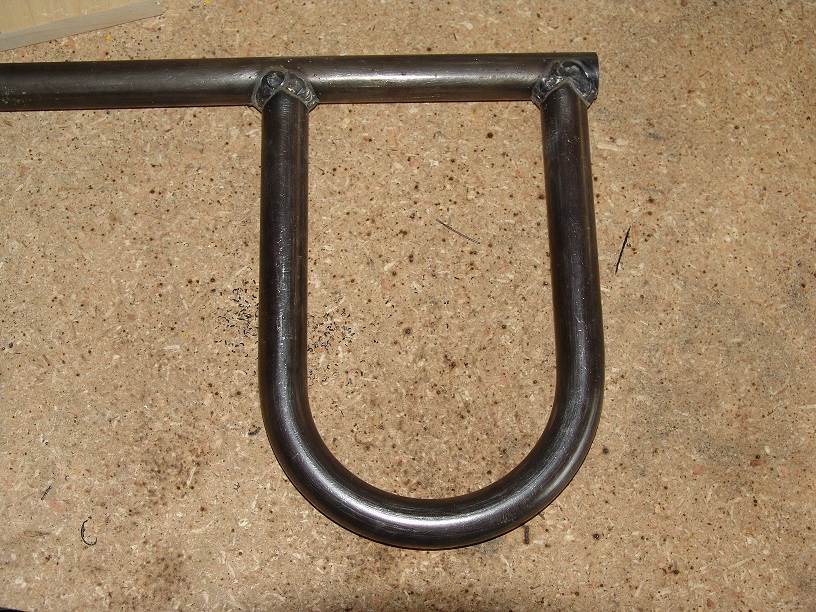

I made a little more progress on the forks. After measuring and notching the forks, I welded a piece of 1" (25.4mm) x 1/8 (3 mm) DOM tubing across the notched ends in hopes that this would keep it straight during the welding. Here's the result:



After measuring out a 4" (101 mm) gap for the wheel to fit through, I cut off the excess:

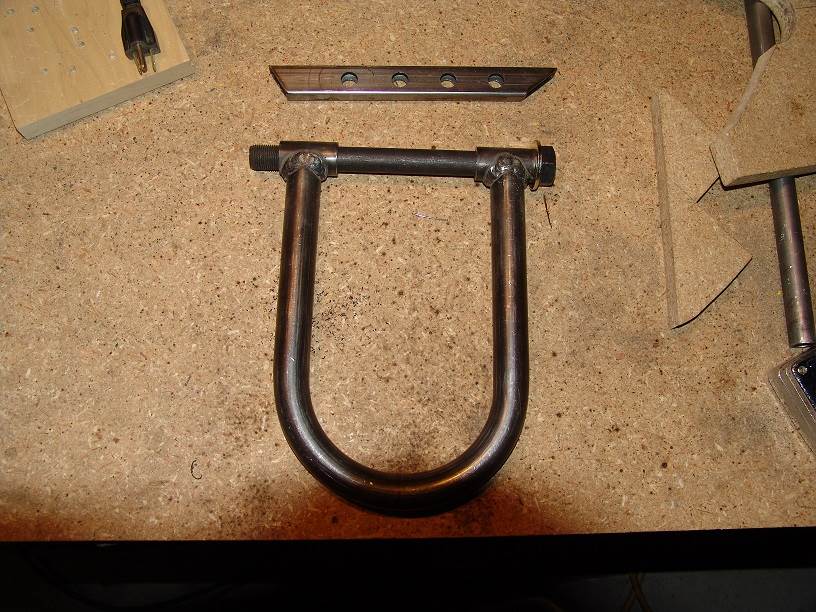

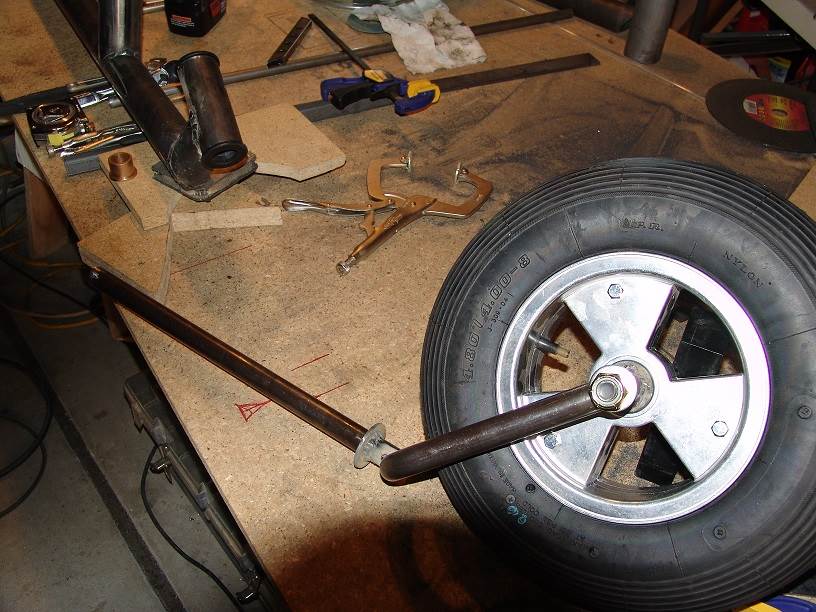

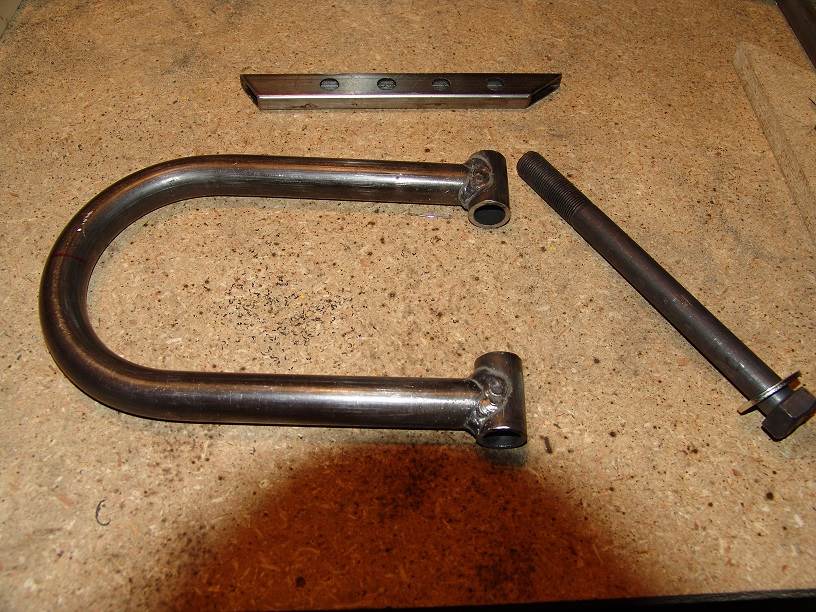

And here I've got the 3/4" (19 mm) bolt that will be the front axle fit nicely through the remaining guides. Also in the picture is the mast step stay. I've got some 1/2" (13 mm) holes drilled out and I'll weld sections of 1/2" (13 mm) x 1/8" (3 mm) tubing into those holes for the downhaul and whatever else I might need to attach there.

pretty impressive. i can see heaps of spare space for tools and STUFF

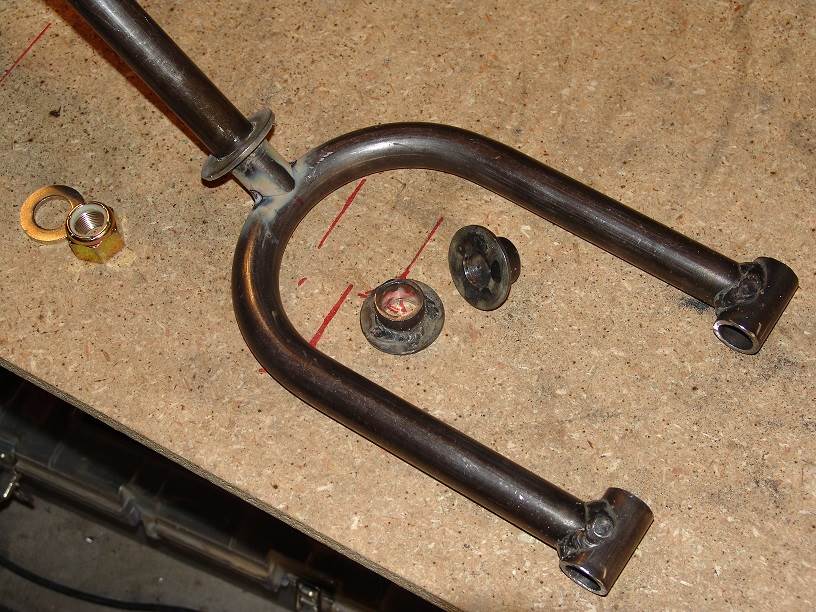

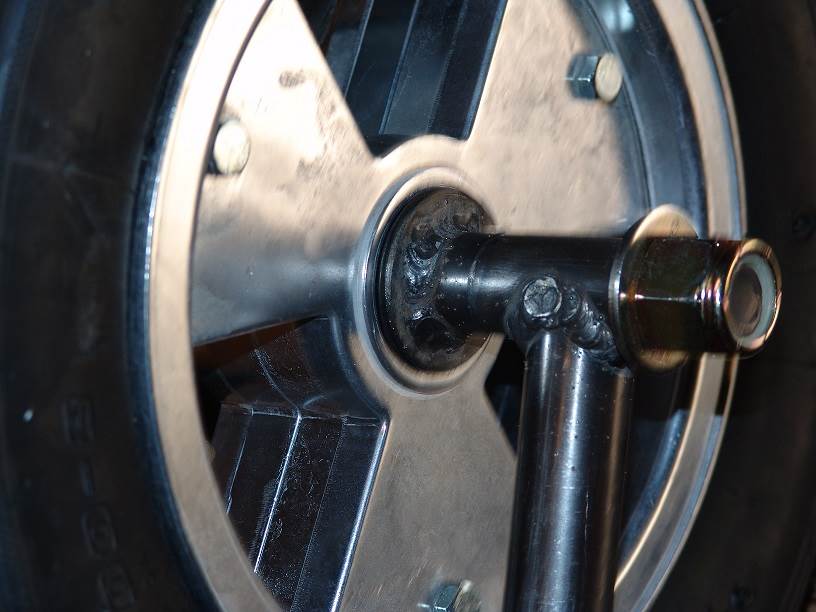

I cut some spacers and welded some washers on to where they would push against the bearings. These will keep the wheel centered on the axle.

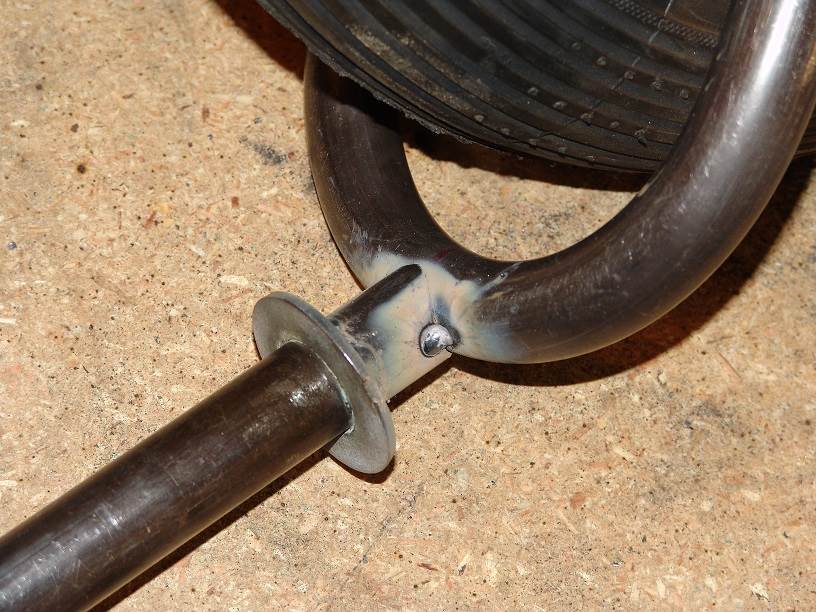

I was having second thoughts about the method I chose to hold the front axle. I was contemplating cutting the fork in half and going with a single fork. I was a little worried that the tubing that the axle bolt rides in on the end of the forks would bind against the axle when I tried to tighten them snug against the bearings. I was picturing those tubes pinching into the center as I tightened the tips of the 'U' together. But they came together just fine in the end.
