Hey guys,

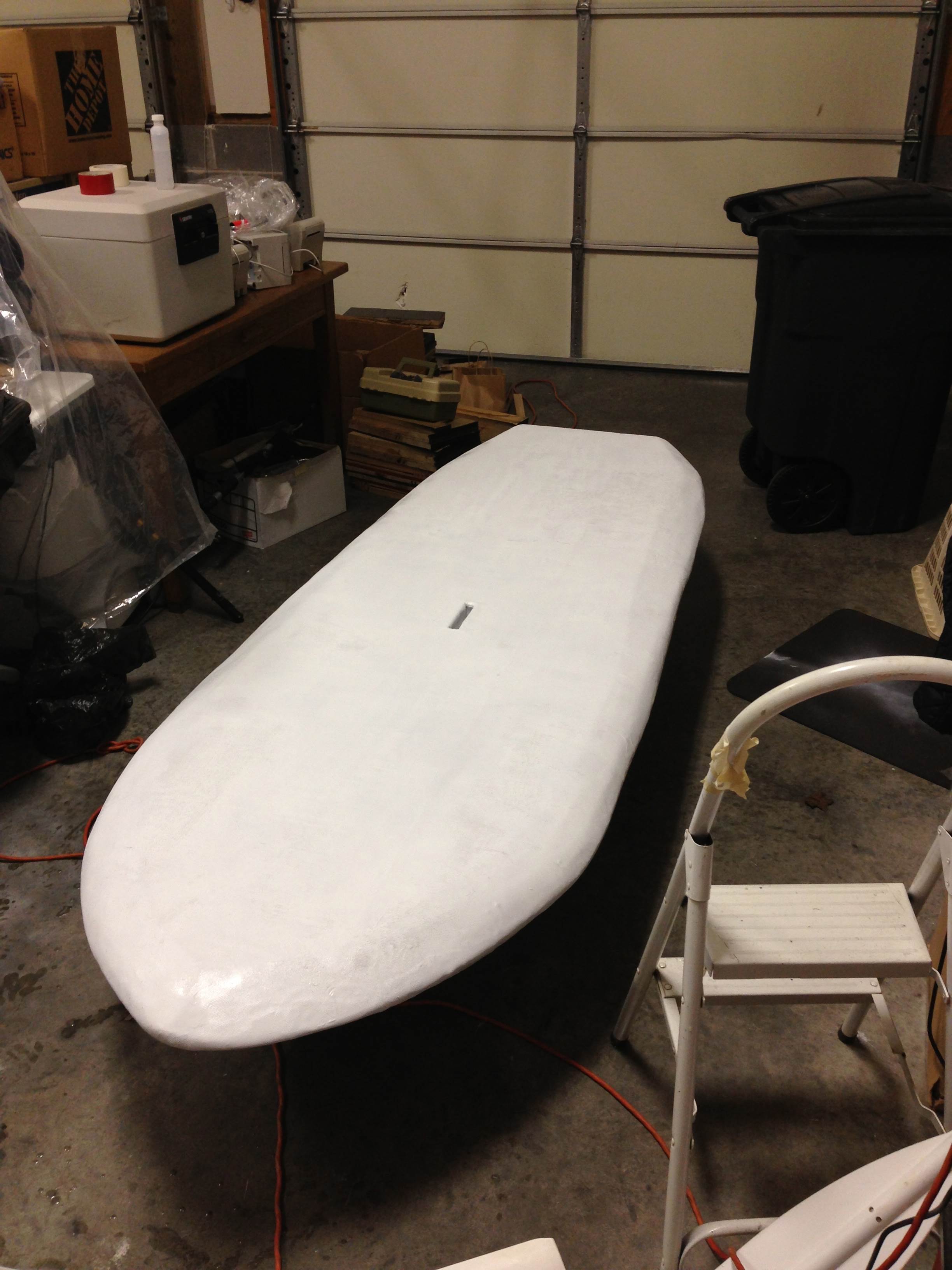

I just finished glassing my fiberglass SUP (still have to paint it) and it turned out great! Only problem I'm having is it won't stay straight when paddling. I currently have a single 9" carbon fiber fin on it that I made. I was thinking about making two more smaller ones and going with the thruster setup.

Any advice?
Also the board is 8.5' long 33'' wide, its fairly flat with a very small rocker.







DavidJohn
DavidJohn
VIC
17570 posts
VIC, 17570 posts
25 Aug 2013 3:59am
Don't mean to be rude.. but.. if Fred Flintstone had a sup board that would be it.. I know someone who once made their first board.. He called that board Mr Lumpy.. Your board reminds me of that board..

You might find that the paddling straight thing is often more a technique thing rather than a fin thing.

Try standing slightly more forward so the tail is just starting to lift from the surface of the water.. Try taking shorter paddle strokes and don't bring the paddle much past your feet.. and try putting more weight on the same rail side that you are paddling on.

If this fails you need to remove your fin and put in normal fin box so you can try different fins till you find one that works.. Adding side fins might help.

Just checking.. It's not April the 1st is it?.. .. Do you have a pic of your paddle? .. I can just imagine what it's like..

DJ
towball
towball
4634 posts
4634 posts
25 Aug 2013 2:15am
Nice rails
j13urton
j13urton
11 posts
11 posts
25 Aug 2013 4:47am
Thanks for the advice ill try to change up my paddle stroke and see if that helps before I put in more fins.

Haha yeah Mr. Lumpy would be a great name for this board, it was most defiantly a learning experience.

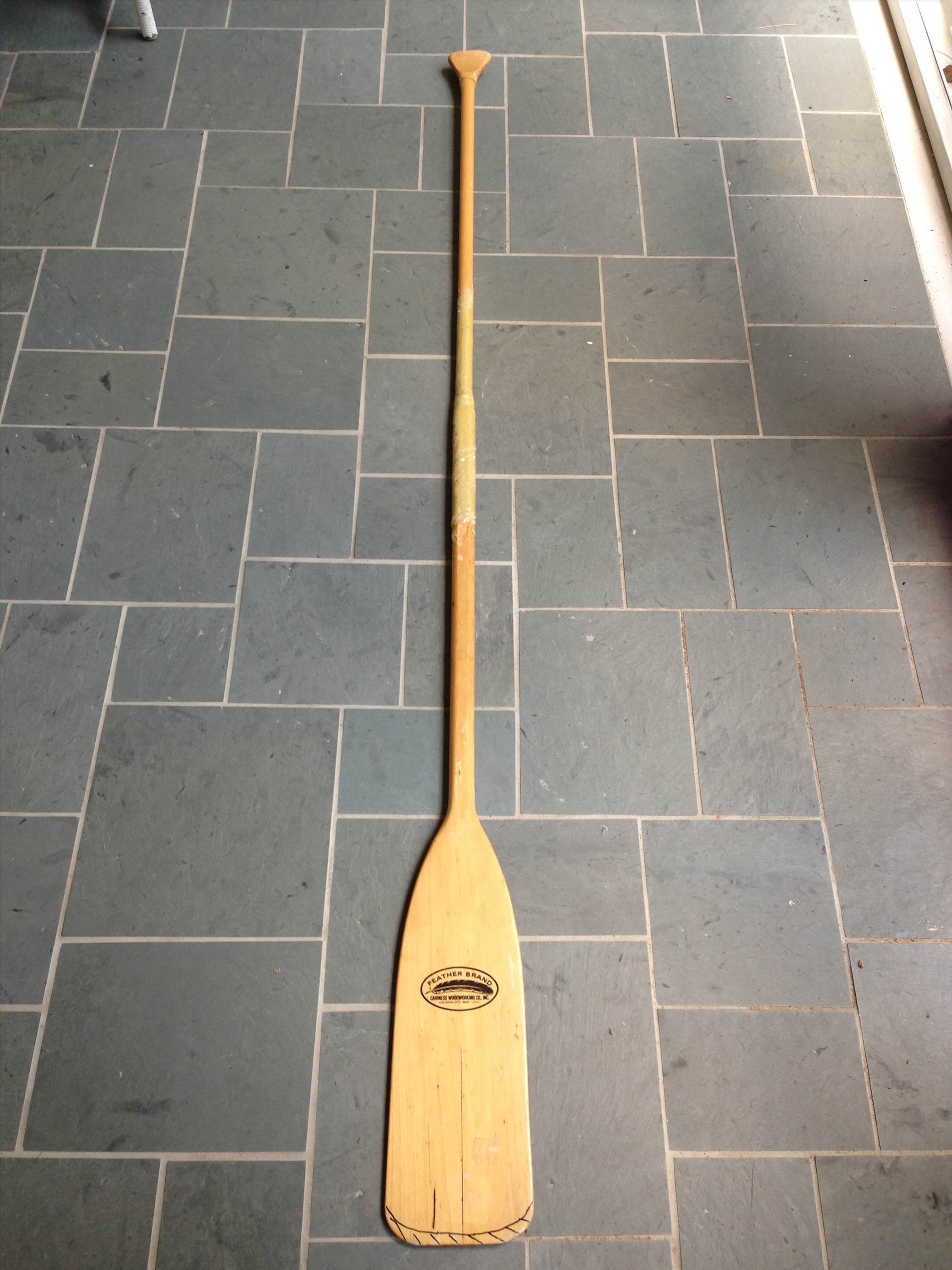

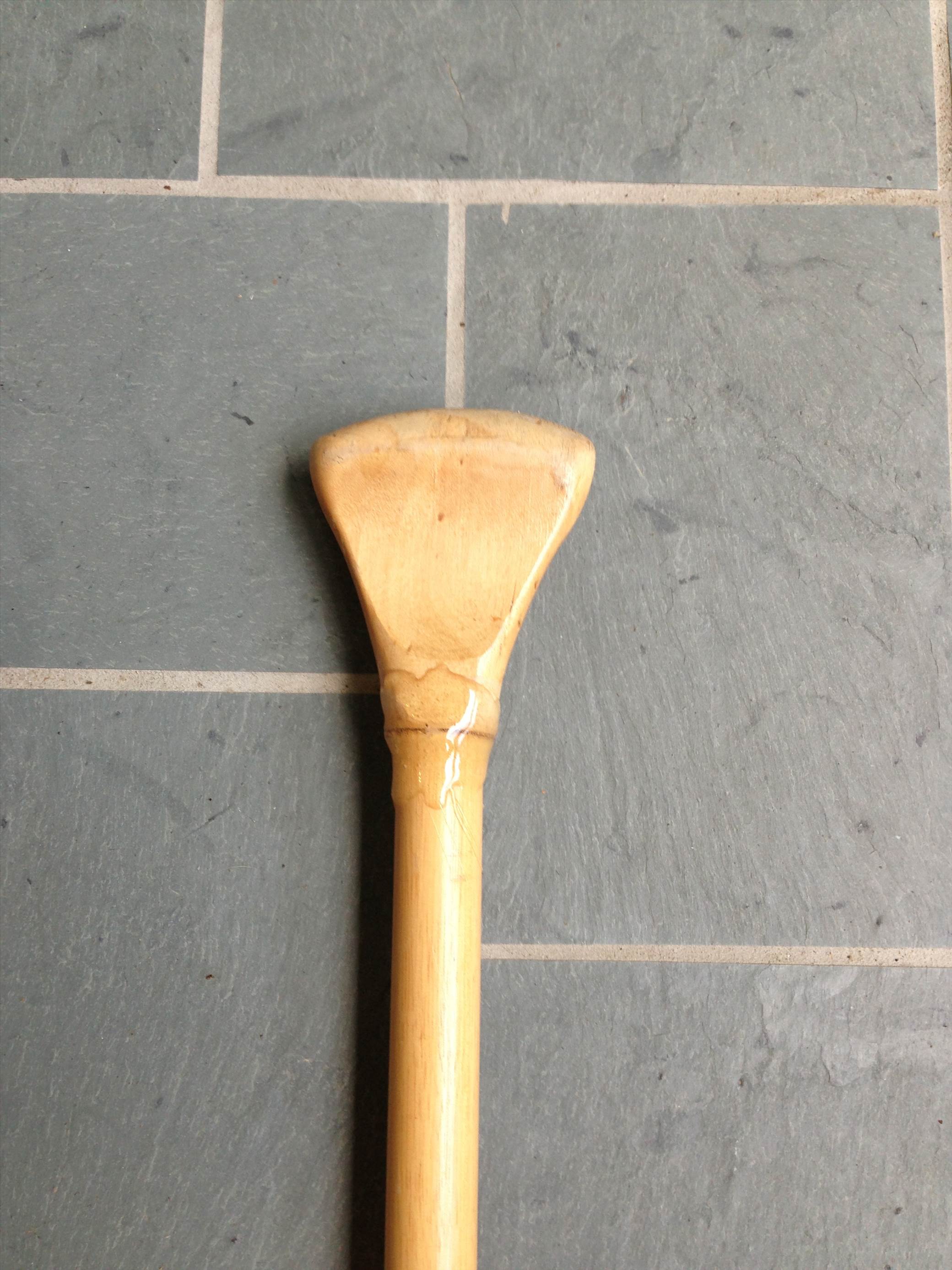

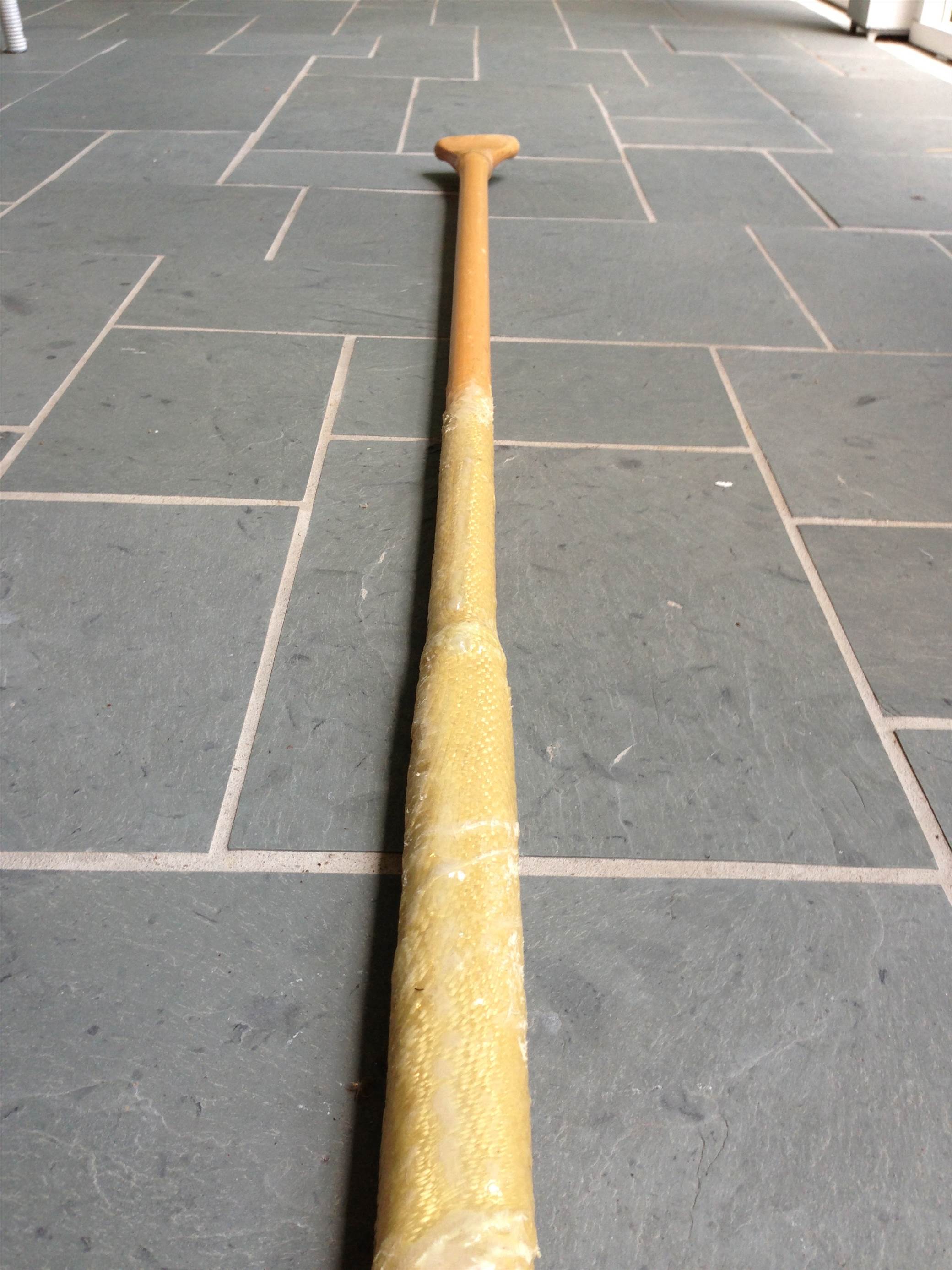

here's a picture of the paddle I think you'll get a kick out of it! What I did was extend a wooden paddle with a wooden stick then used Kevlar to attach it.



j13urton
j13urton
11 posts
11 posts
25 Aug 2013 4:48am




E T
E T
QLD
2286 posts
E T E T
QLD, 2286 posts
25 Aug 2013 8:22am
You are a very, very kind man DJ.
ET
cripple
cripple
WA
21 posts
WA, 21 posts
25 Aug 2013 7:55am
Wow! I thought us Aussies were initiative, this takes things to a whole new level.

Looks like the type of board you surf alone.
Direction
Direction
QLD
6 posts
QLD, 6 posts
25 Aug 2013 12:41pm
Wow I'm lost for words
log man
log man
VIC
8289 posts
VIC, 8289 posts
25 Aug 2013 1:27pm
Good stuff mate, looks like a good first off board. Interesting you used extruded polystyrene instead of expanded. Some people seem to have trouble with XPS. I've used it before and found it good to shape.

I found this site really useful when I built my first couple.www.surfersteve.com/cgi-sys/suspendedpage.cgi

Have you surfed it yet? I reckon it'd be pretty fast with the flat rocker.

Somewhere on this site is a really good tutorial by surfcoast SUP guru Dean Snow. The guy makes great boards with a very simple technique. It is a great instructional story.

DJ, do you know if it still exists?
DavidJohn
DavidJohn
VIC
17570 posts
VIC, 17570 posts
25 Aug 2013 2:19pm
log man said..

Good stuff mate, looks like a good first off board. Interesting you used extruded polystyrene instead of expanded. Some people seem to have trouble with XPS. I've used it before and found it good to shape.

I found this site really useful when I built my first couple.www.surfersteve.com/cgi-sys/suspendedpage.cgi

Have you surfed it yet? I reckon it'd be pretty fast with the flat rocker.

Somewhere on this site is a really good tutorial by surfcoast SUP guru Dean Snow. The guy makes great boards with a very simple technique. It is a great instructional story.

DJ, do you know if it still exists?


Here it is.. www.seabreeze.com.au/forums/Stand-Up-Paddle/SUP/Dales-new-board/?SearchTerms=Making,Dales,new,board

and here.. www.seabreeze.com.au/forums/Stand-Up-Paddle/SUP/At-last-my-grip-is-on/
teatrea
teatrea
QLD
4177 posts
QLD, 4177 posts
25 Aug 2013 2:24pm
Good on you buddy i hope you get many hours of stoke out of it
j13urton
j13urton
11 posts
11 posts
25 Aug 2013 1:46pm
DavidJohn said..

log man said..

Good stuff mate, looks like a good first off board. Interesting you used extruded polystyrene instead of expanded. Some people seem to have trouble with XPS. I've used it before and found it good to shape.

I found this site really useful when I built my first couple.www.surfersteve.com/cgi-sys/suspendedpage.cgi

Have you surfed it yet? I reckon it'd be pretty fast with the flat rocker.

Somewhere on this site is a really good tutorial by surfcoast SUP guru Dean Snow. The guy makes great boards with a very simple technique. It is a great instructional story.

DJ, do you know if it still exists?


Here it is.. www.seabreeze.com.au/forums/Stand-Up-Paddle/SUP/Dales-new-board/?SearchTerms=Making,Dales,new,board

and here.. www.seabreeze.com.au/forums/Stand-Up-Paddle/SUP/At-last-my-grip-is-on/



I've only taken it out on flat water because I live on a lake. And I've actually never surfed before. Shaping this foam was difficult and next time I'll try something more specific to surfing rather than insulation from Home Depot lol .

Too bad I couldn't have seen that tutorial before I made this board some great techniques there that will help me with my next one! Ill post some more pictures soon when I sand it down and paint it.

I also have a lot of 8 oz S glass left over so I plan on modifying the paddle to make it wider at the bottom.
laceys lane
laceys lane
QLD
19804 posts
QLD, 19804 posts
25 Aug 2013 4:51pm
leave the paddle as is i reckon. boards not great, but fit for the purpose intended ie, getting on the water
latman
latman
QLD
177 posts
QLD, 177 posts
26 Aug 2013 10:58am
The problem with XPS is getting a good glass bond to it , because its closed cell there is no resin penetration unlike EPS which MUCH gives more grip , S glass is great stuff and I'm surprised it isn't sold more in Australia
colas
colas
5379 posts
5379 posts
27 Aug 2013 1:06am
Well, it seem a much nicer board that the surfboard I shaped myself when I was a teenager...

... needless to say, that was also the last board I shaped :-)
supmego
supmego
VIC
130 posts
VIC, 130 posts
27 Aug 2013 10:40am
Now I've seen everything. (I Think)
j13urton
j13urton
11 posts
11 posts
27 Aug 2013 11:44am
Finally found some time to sand it and get the base color on. Maybe y'all can ease up on me a little, It looks somewhat like a SUP now haha.


Sailhack
Sailhack
VIC
5000 posts
VIC, 5000 posts
27 Aug 2013 2:00pm
^^^ Nup - it still doesn't.

You don't need our endorsement to have fun on your 'custom' SUP, but maybe the following pic might explain it somewhat-


antonfourie
antonfourie
NSW
140 posts
NSW, 140 posts
27 Aug 2013 5:04pm
Hey dude

Good on you for trying to and making a board, that is a lot more than most have done.

As long as you keep the stoke and have fun

Piros
Piros
QLD
7296 posts
QLD, 7296 posts
27 Aug 2013 8:19pm
Please tell me this is a wind up...Caveman Sup didn't see any power tools in the shed.
chapo1
chapo1
NSW
80 posts
NSW, 80 posts
27 Aug 2013 10:02pm
Yabba dabba doo
maxeaus
maxeaus
NSW
326 posts
NSW, 326 posts
27 Aug 2013 11:28pm
My tip is get a few pointers off this French bloke, hes on the right track IMO.

www.seabreeze.com.au/forums/Stand-Up-Paddle/Review/My-last-board-coming-off-my-garage-shaping-room/
micksmith
micksmith
VIC
1701 posts
VIC, 1701 posts
28 Aug 2013 7:21am
I see the problem, you just haven't sanded enough off the trailing edge of your fin (needs to look like aircraft wing or even a real fin).
seriously you need to go into production on these things
sharpie
sharpie
NSW
347 posts
NSW, 347 posts
28 Aug 2013 7:46am
a good way to start is to use a thing called a template which will give you a nice curved even outline, sorry but it looks like you cut this outline with an axe. BUT, we have to start some where. i can recall getting absolutly flogged for my attemt at a pigment job on the old shane standard as a grommet.
j13urton
j13urton
11 posts
11 posts
28 Aug 2013 12:55pm
Well this board may seem like junk to you guys because y'all are seasoned surfers who are on nice expensive boards. Me on the other hand have never surfed in my life and I'm just trying to shred some waves for the first time. And honestly for spending less than 150 bucks this thing and its good enough.

I dont know when I'll build my next board but it will look a lot better since I have all these nice tutorials y'all have nicely given me

Oh yeah and I spent 2 hours on the lake on the caveman board and it was the most relaxing 2 hours I've had in a long time!!
log man
log man
VIC
8289 posts
VIC, 8289 posts
28 Aug 2013 6:19pm
Good onya, Too many people on this site are so precious about their brands. This is how boards looked years ago. And by the way there's plenty of enjoyment in learning. My first board was pure **** but I think I've learnt a bit more about surfing and design by doing it myself.

J13urton, just get some baby poo yellow paint, get a marker pen and write N-A-I-S-H on it and the brand guys on here will want to buy it off you!
weiry
weiry
QLD
5396 posts
QLD, 5396 posts
28 Aug 2013 8:43pm
Hey good on you J, a good aussie saying here is .....have a go
and you have my friend.
dont listen to half the guys here...course half of them can't surf also
62mac
62mac
WA
24860 posts
WA, 24860 posts
28 Aug 2013 6:47pm
weiry said..

Hey good on you J, a good aussie saying here is .....have a go
and you have my friend.
dont listen to half the guys here...course half of them can't surf also


bloody troll
king of the point
king of the point
WA
1836 posts
WA, 1836 posts
28 Aug 2013 11:00pm
Its all in the spray job now

the mind boggles

looken forward to seeing your art skills

Where did you score the feather brand paddle ........ha
SupStyle
SupStyle
3 posts
3 posts
29 Aug 2013 11:22pm
You're out on the water having fun, that's what it's all about!
j13urton
j13urton
11 posts
11 posts
30 Aug 2013 5:17am

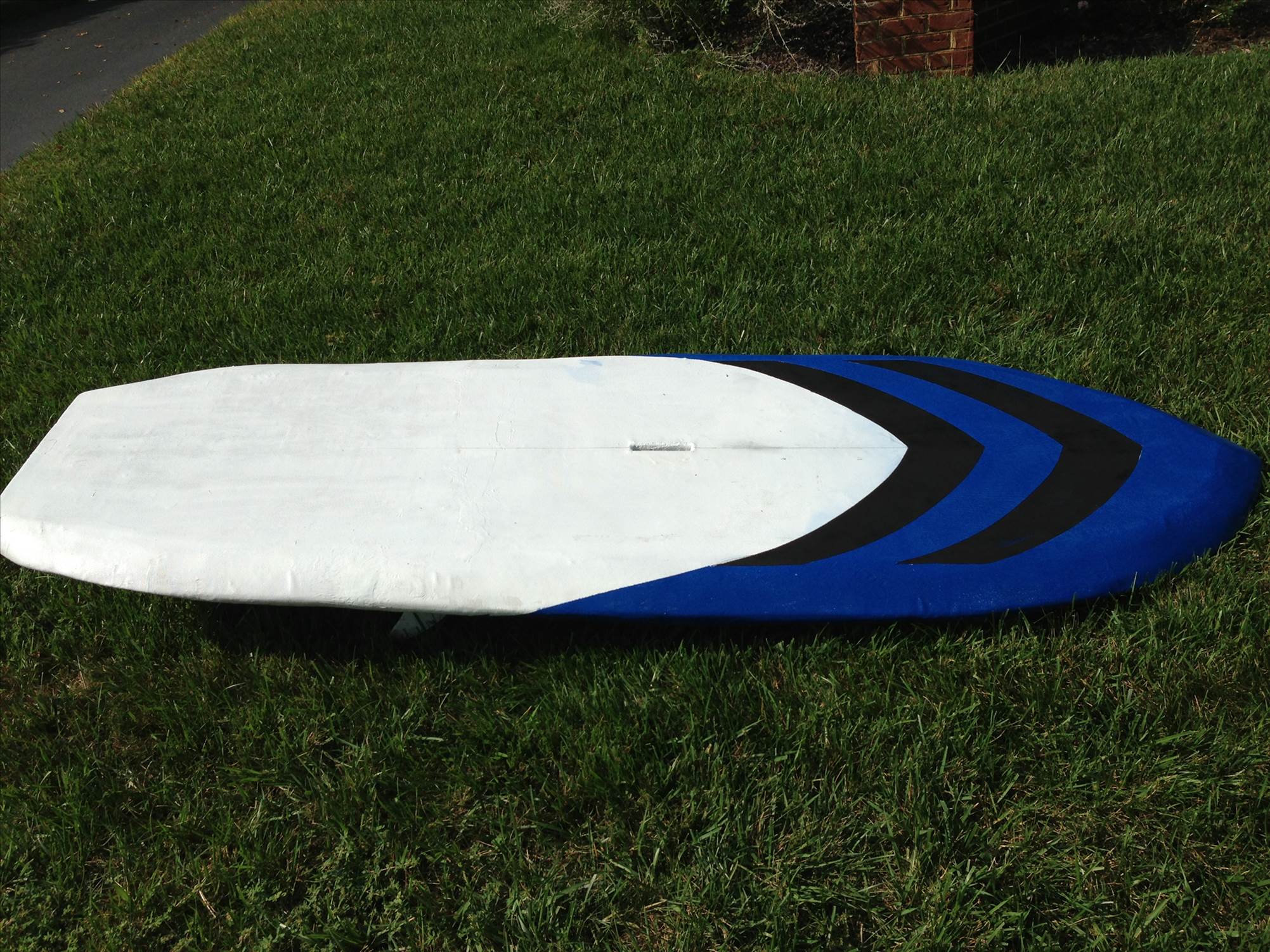

Here it is all painted! tell me what y'all think!
