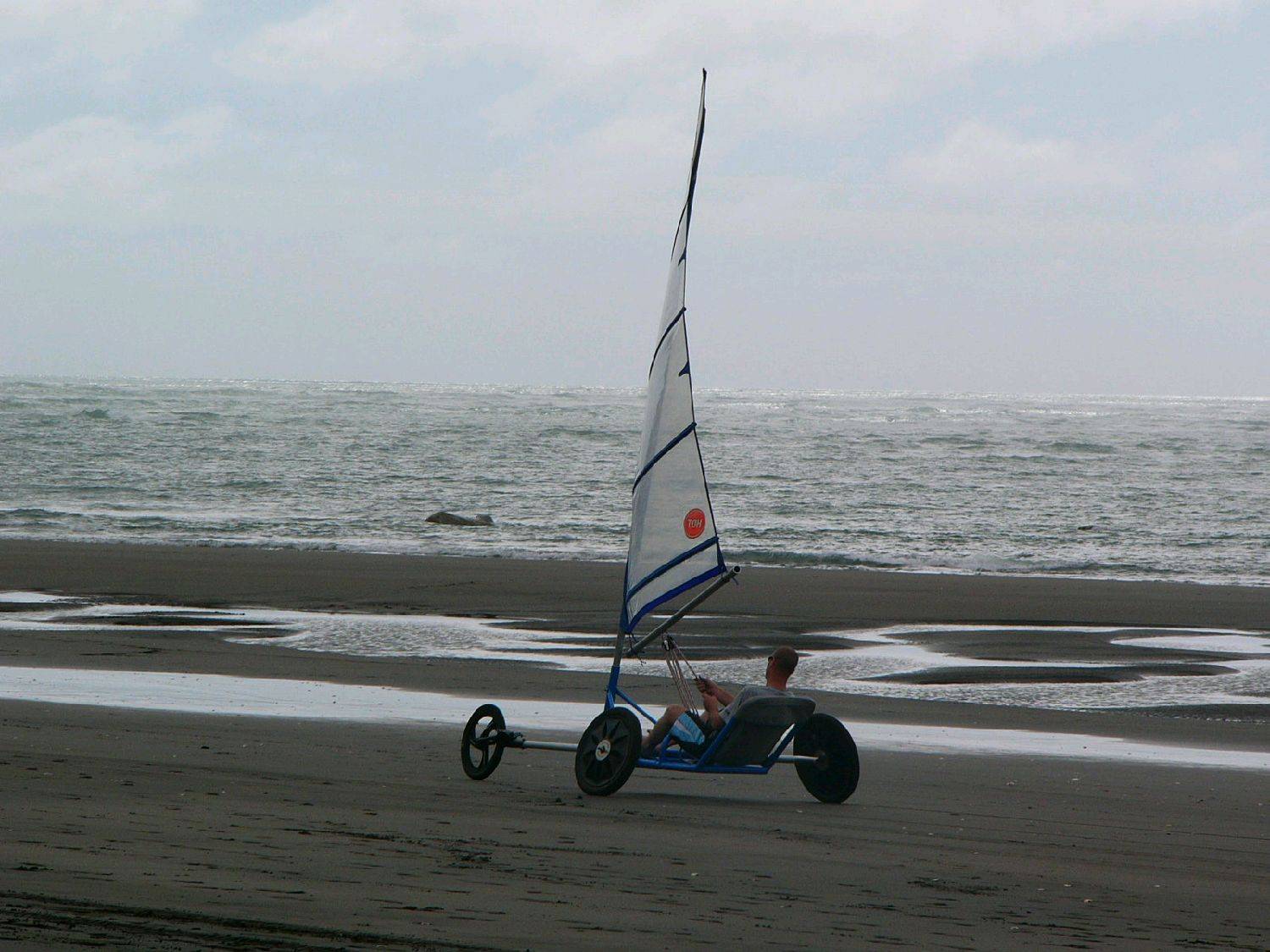

test run report: had a good test run at raglan beach. winds very light. about 6-7 knots. but pulled out top speed of 49.7km/hr. will get some pics and keep yoy all posted on progress. was good to pack up yacht and put into boot. good driving home with no trailer.

Wow!! I want to see some pics. this sounds great!!

We're still waiting for pics.

Just a thought on sailmakers.. find an up and comming one rather than a big company as often the big guys are very set in there ways in sail design.
The best way is to actually get "the" sail maker to go for a sail on a landyacht so he gets a better idea of the speeds that occur and what is needed.

cisco said...

We're still waiting for pics.

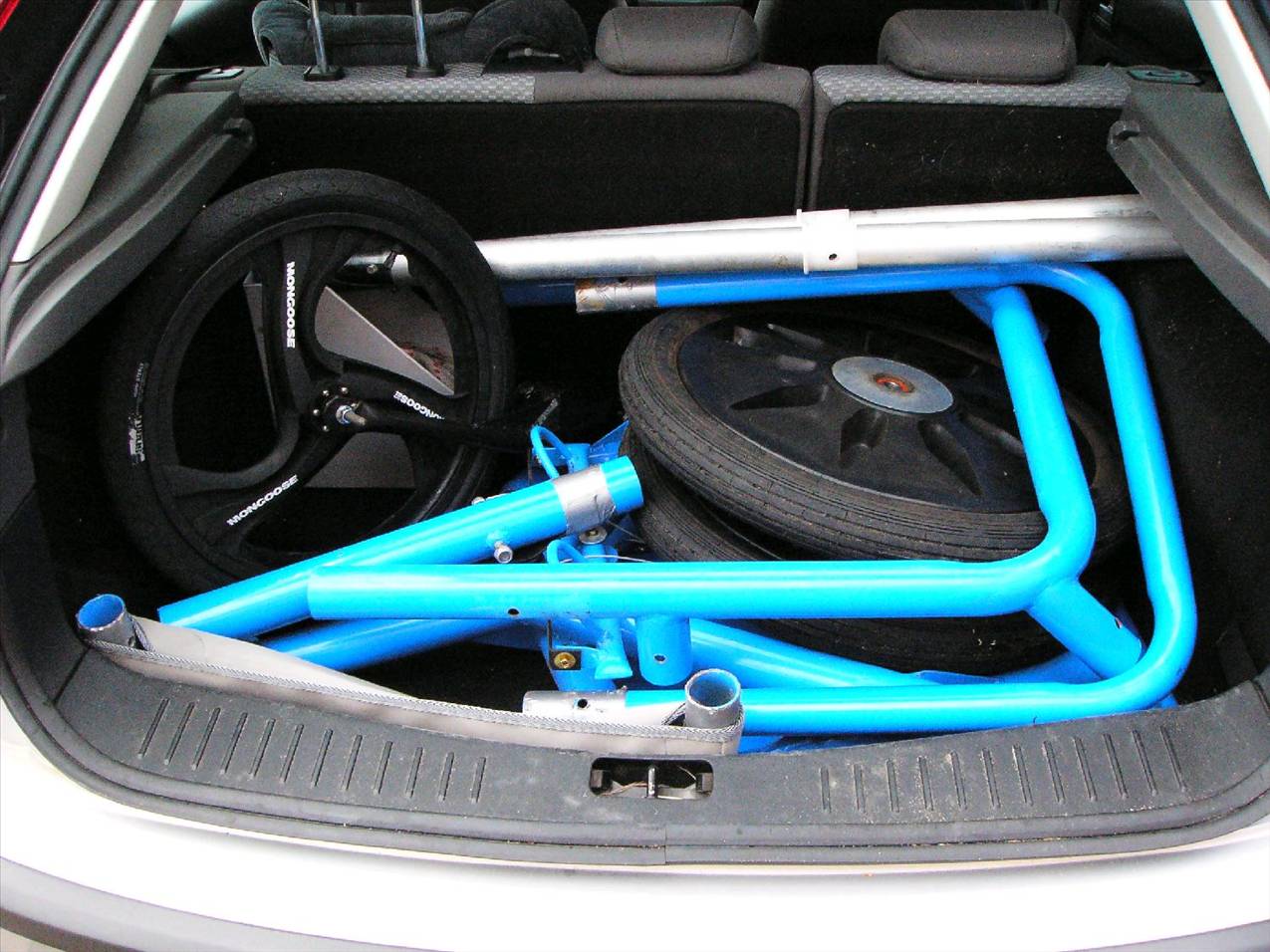

this is it in the boot. waiting on new sail before posting assembled yacht photos.
but any questions welcome.

Thanks AD. I think sulky wheels have been discussed before and a comment was made that the bearings are probably too small for our application with big sideloads.

I like those wheels because they take a standard motor cycle tyre and by the looks of the metal hub they could be modified to take a larger diameter axle and bearing combination.

I am not in the market for wheels just yet but will give you a PM when I am.
Cheers Cisco

I use the hubs and bearings out of the sulky wheels that split (hot weather on lefroy) and installed them into my 26" wheels I have never had a problem whith the bearings but removed the spacer and used 5/8" class12 bolts for axles
Cheers
aus230



ps same sulky wheels in australia

Peter Ryan Saddlery (NSW)
Ph 0061 02 496 81227
Fax 0061 496 81227

Challenger Sulkies Australia (victoria)
Barry Eeles
Phone: 03 544 34448
Fax: 03 544 34448
Mobile: 0428 312 500

Yes, the sulky wheels are fine for class 5. The white ones may be a better choice in the hot Aus sun. I would still have spacers between the bearings and 5/8" high tensile bolts for stub axle. When cranked up tight the spacer effectively increases the diameter of the axle. Also use Michelin Rapido 2 1/4" x 18 tyres if you can get them. The motorcycle tyres are way too heavy and have very stiff side walls being 3 ply construction. The rapidos are 2 ply construction.

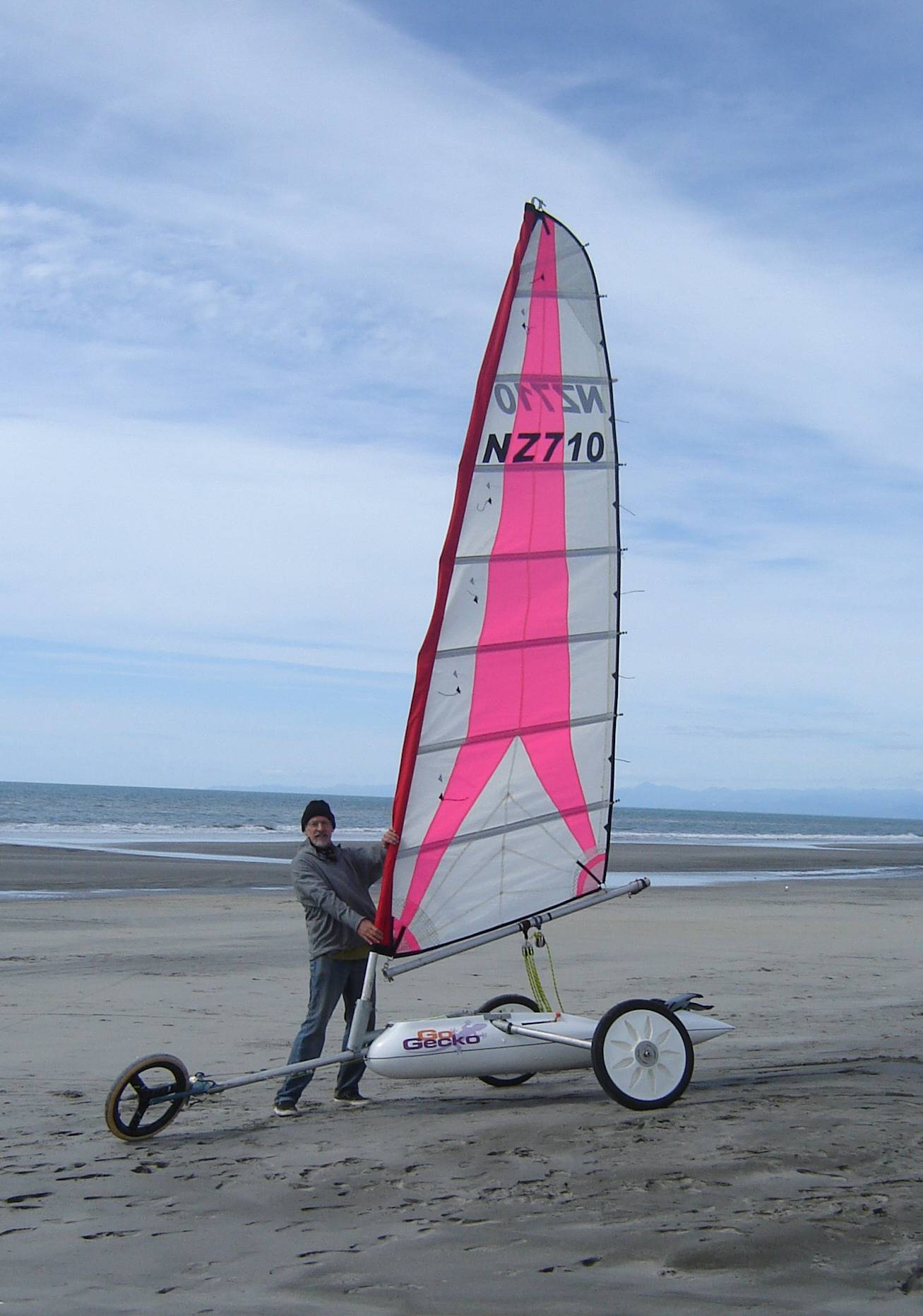

Above: "Mad Mike" and his new class 5 with white sulky wheels.

ADlandyachts said...

this not the sail that will be on my yachts
yacht will be made from stainless steel.

what is that in the water?
it luks beached is bru
