Hello everybody, greetings from Scotland,
After reading many a blog from your forum, and gaining many ideas from the many home made land yachts out there, I thought it only fair to share my build experience with you.

I started with a sketch to get some dimensions sorted, the picture isn't very clear but it was good to have a plan to work too, or at least half a plan, some of this stuff was a case of make it up as I went along.

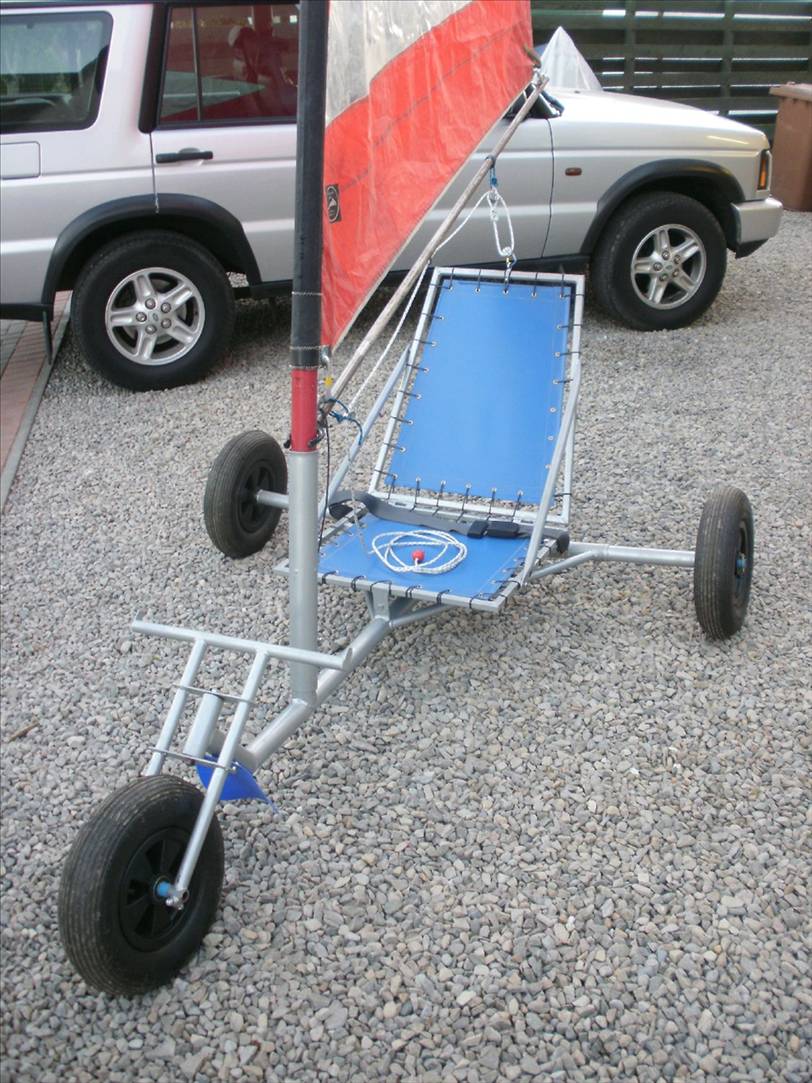

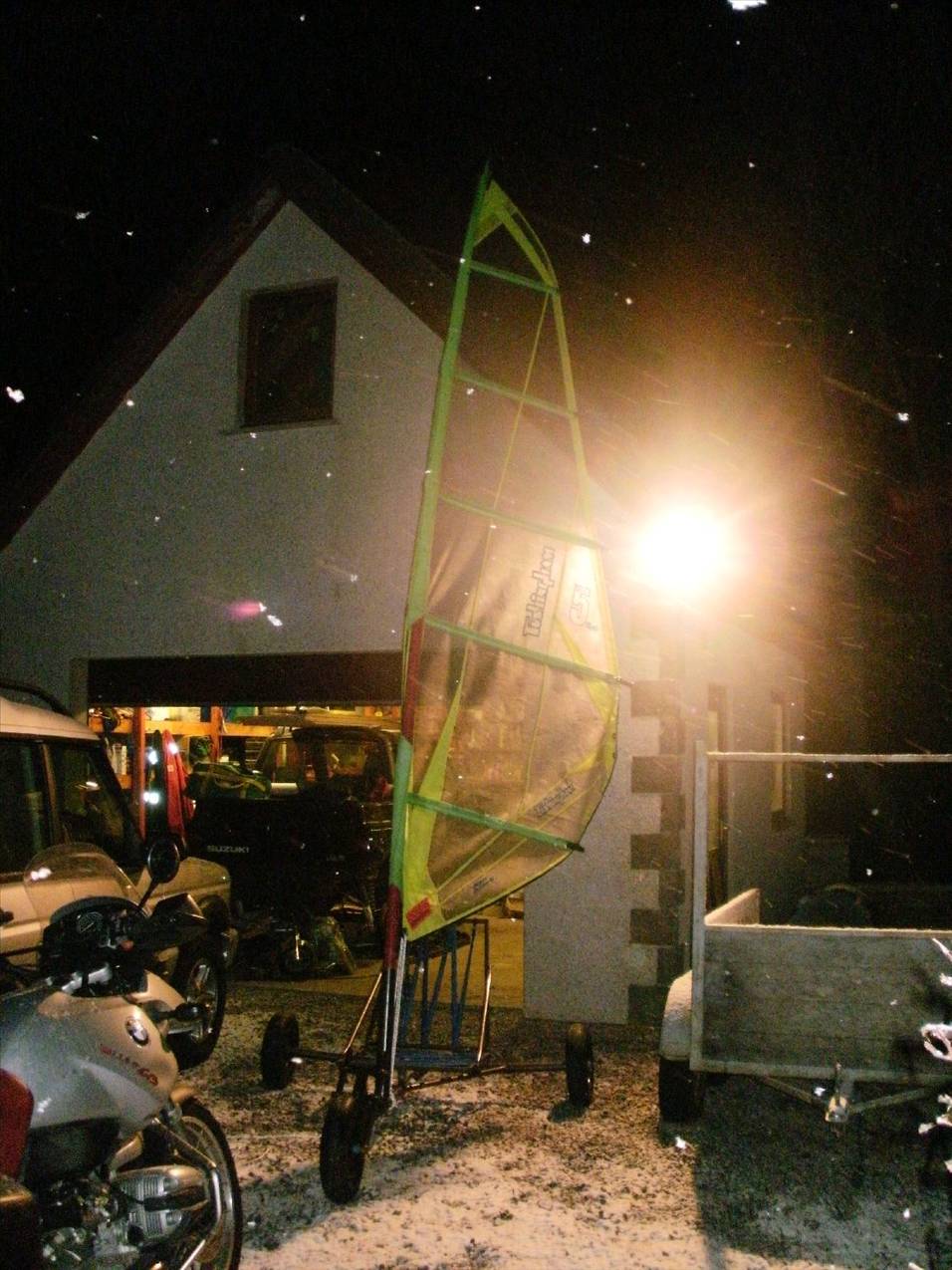

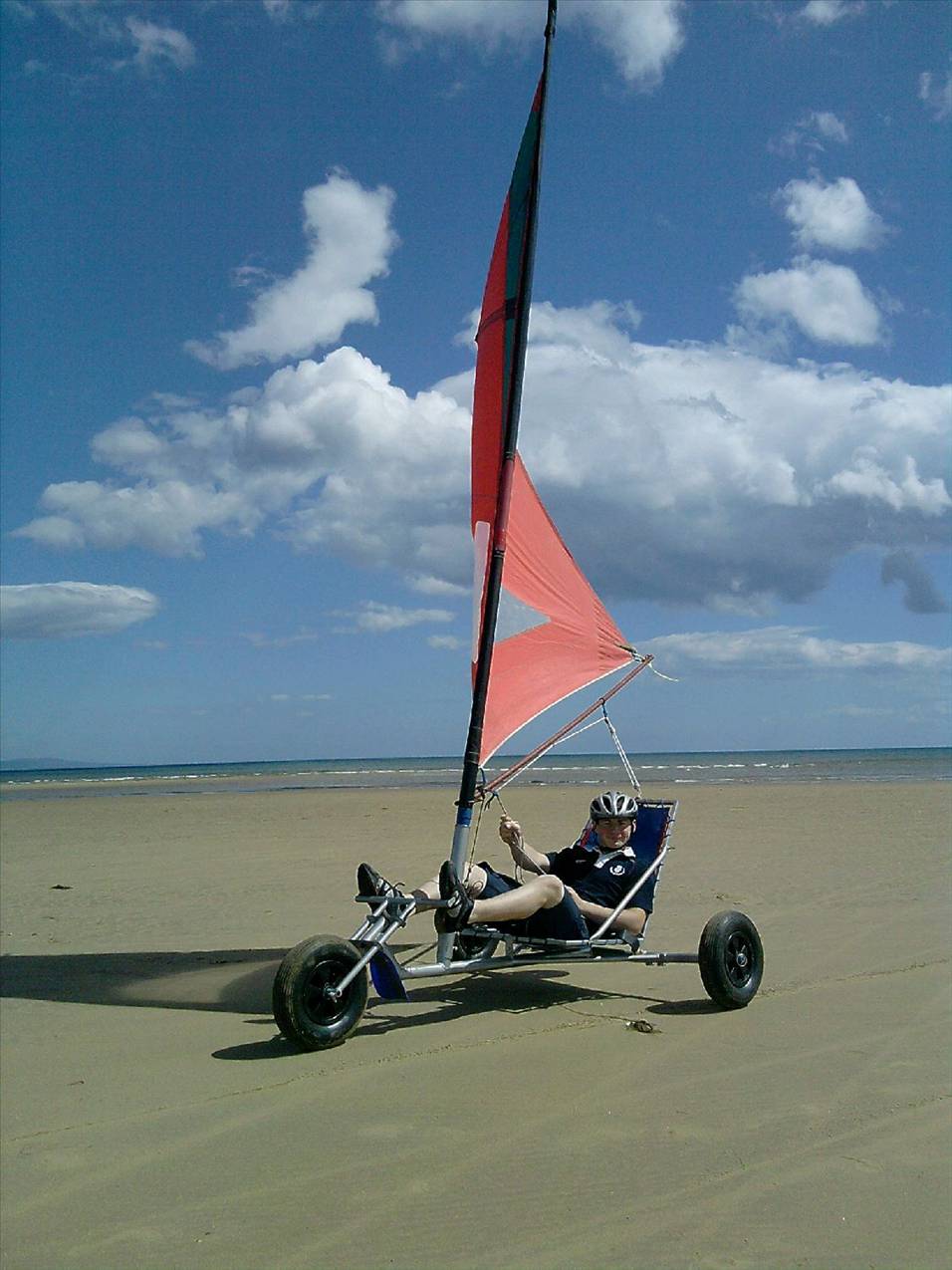

I'm working offshore in Brazil at the moment and the internet is pretty slow. I had hoped to get all the build photos in but it's going to take too long. Heres a picture of the finished article, The red sail was home modified and there was a tent sacrifice involved! the yellow sail was also partly home modified but it broke the wifes sewing machine! it pains me to have to tell you I had to put my hand in my pocket and pay someone else to sew it for me.




Hopefully you will notice that it does bear some resemblance to the plan I sail at Dornoch beach and I've been over to Harris too. 61kph on Luskentyre beach! it was braw!

As soon as I get home I'll post the rest of the pictures. I've actually started the Mark2 version so I'll post pics of that too. I've to build another for my 8year old daughter too! Its a right little production line going on here!

Let me have your thoughts please.

HAHAHahaha!! Love your forum name!! At 61Kph its very appropriate!

The yacht looks excellent and obvioulsy performs very well. I'm looking forward to more pictures! Well done!

yep Skid,

you got the bug there too, plans look like they came from Divinchi

not a worry...............tight sheets

Nice work Skidmark -
Welcome to the exciting world of miniyachts as Gizmo says "International" .
If you ever head across the pond to Ireland give me a shout.

Also may be worth keeping an eye on www.ipksa.info as there is the odd excursion to Luce.

Alan

On Facebook
www.facebook.com/login.php?next=https%3A%2F%2Fwww.facebook.com%2Fhome.php

www.facebook.com/home.php?#!/event.php?eid=152517178099899&index=1

Thanks for your comments guys, Will post some build photos later today, might get a couple uploaded each day? Internet on a go slow.

Recognition from the "Guru" Mr Landyacht himself, Thats made my day!!

[/img

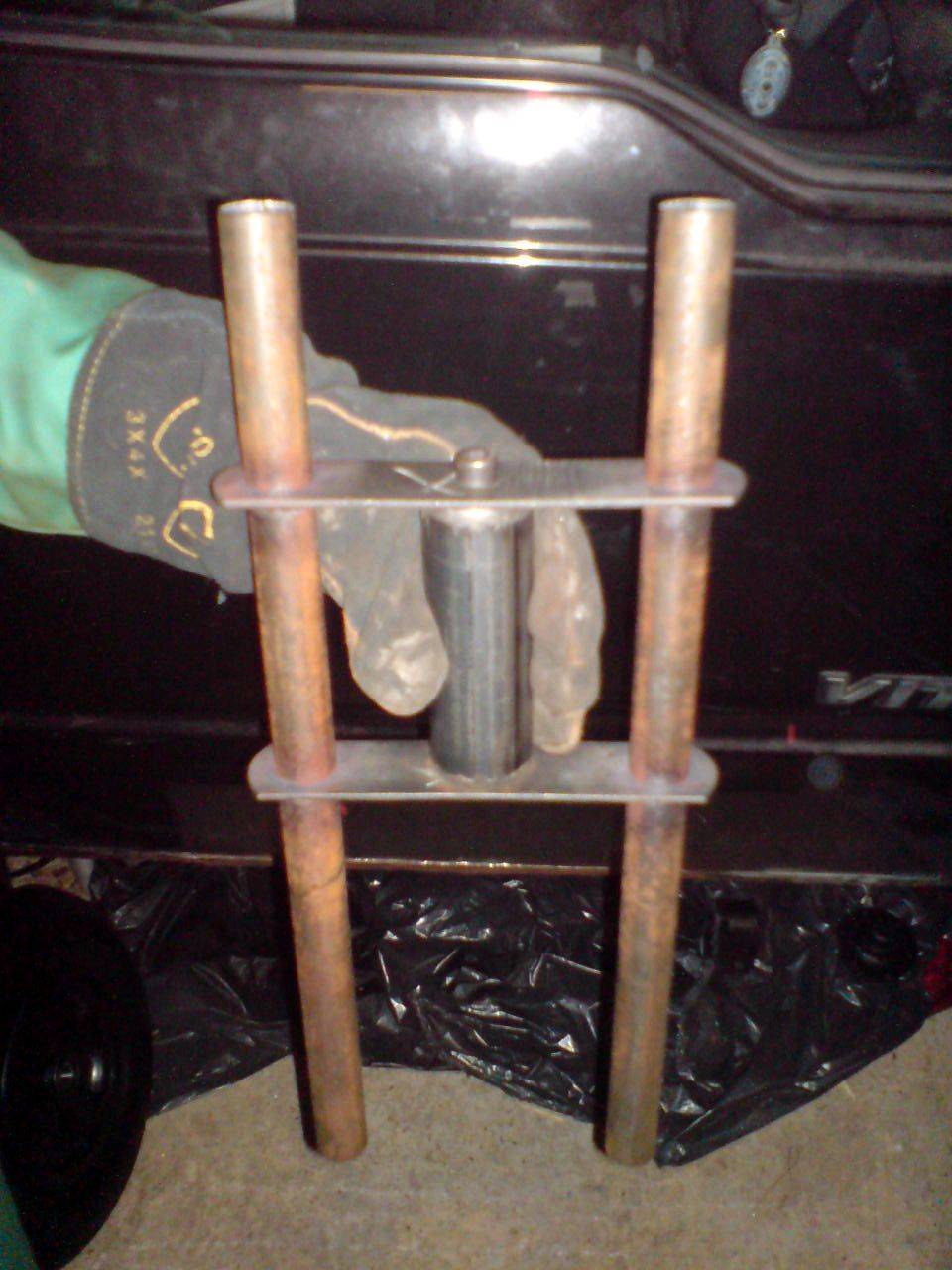

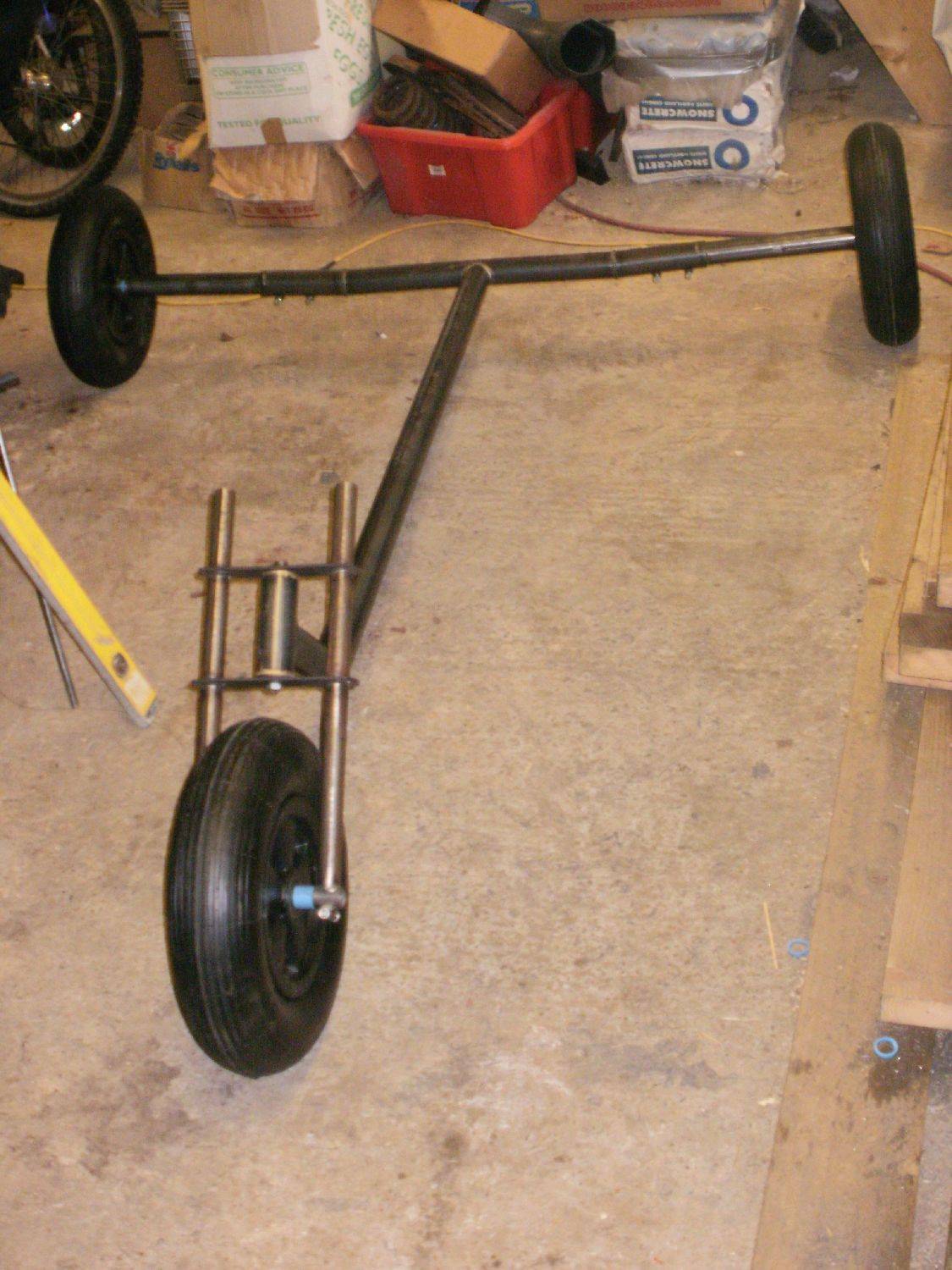

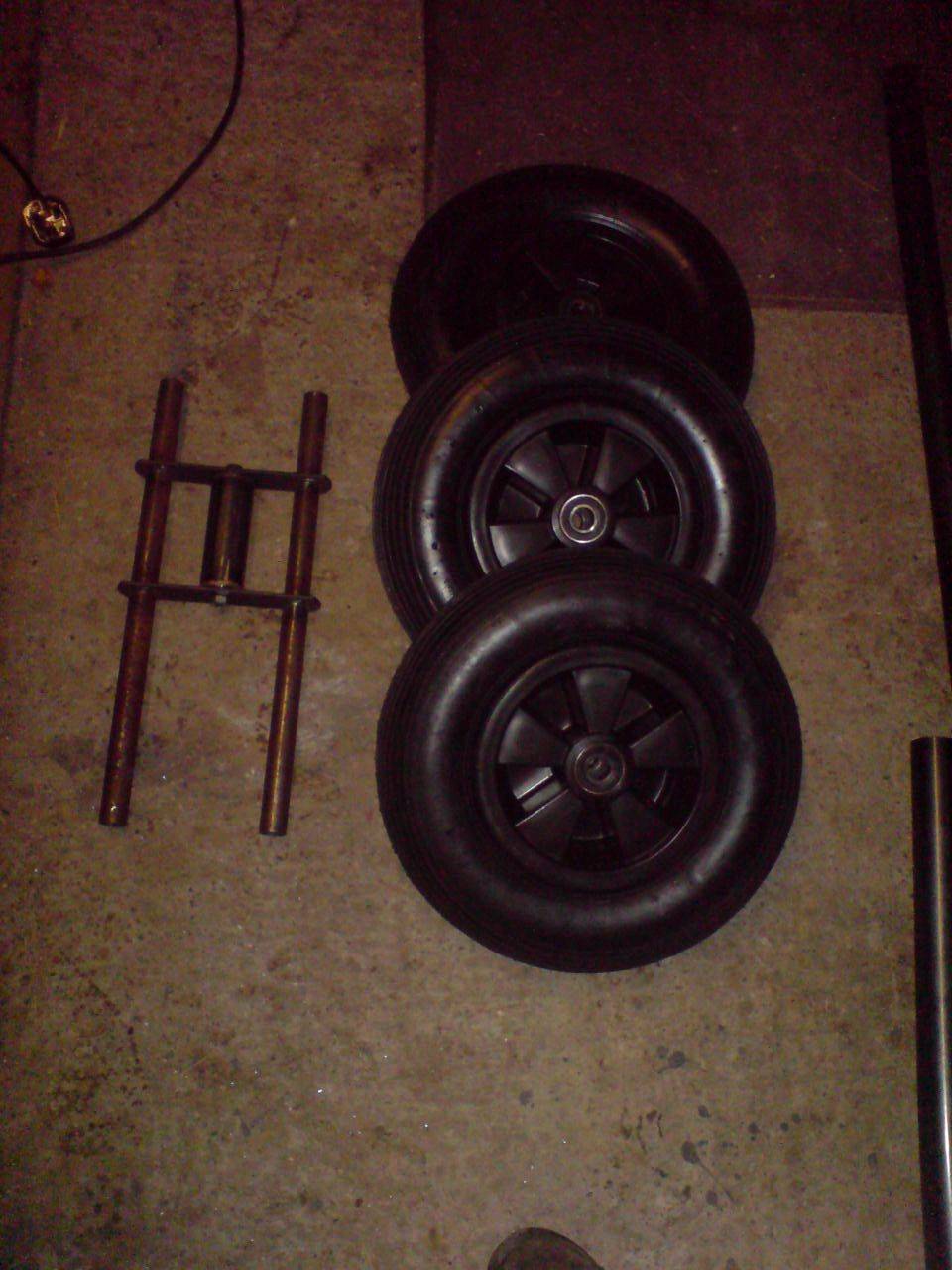

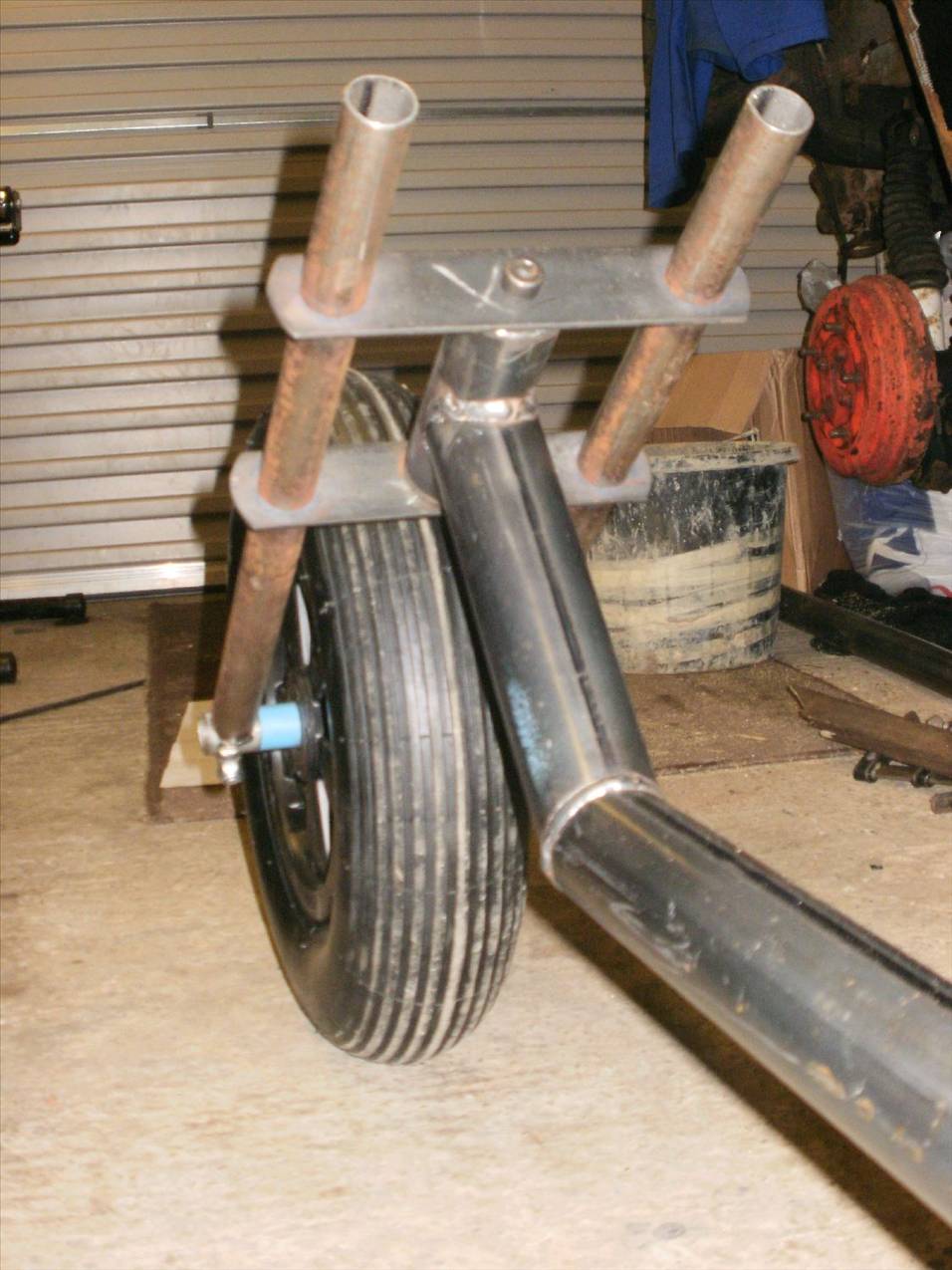

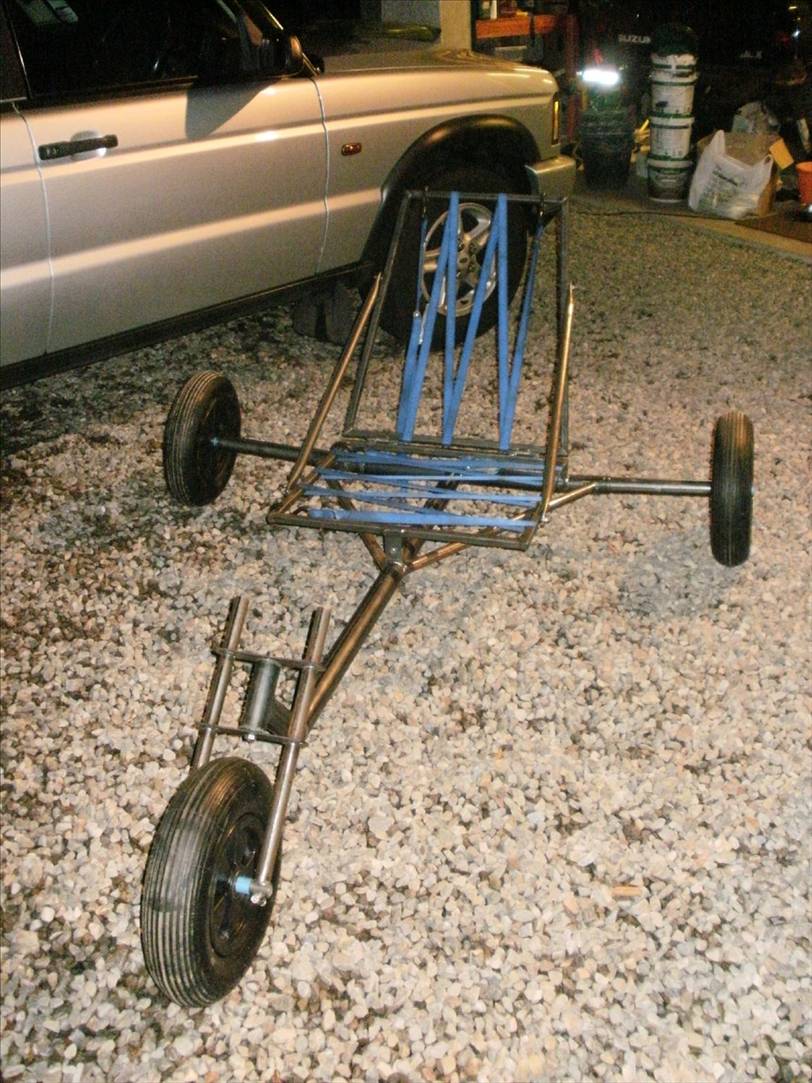

Forks and main spine attached.




The overall dimensions are approx 1500mm wide x 1600mm long,

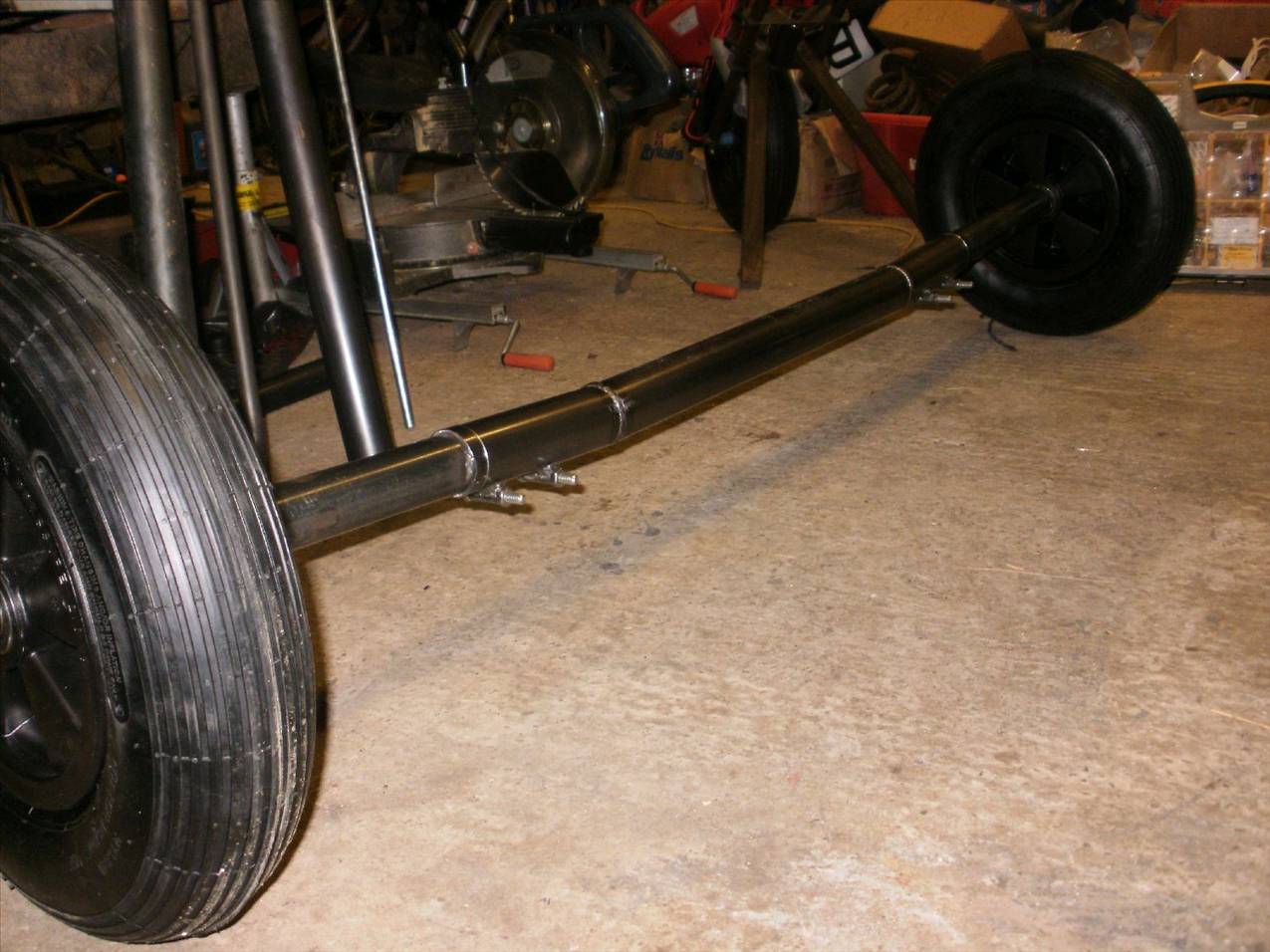

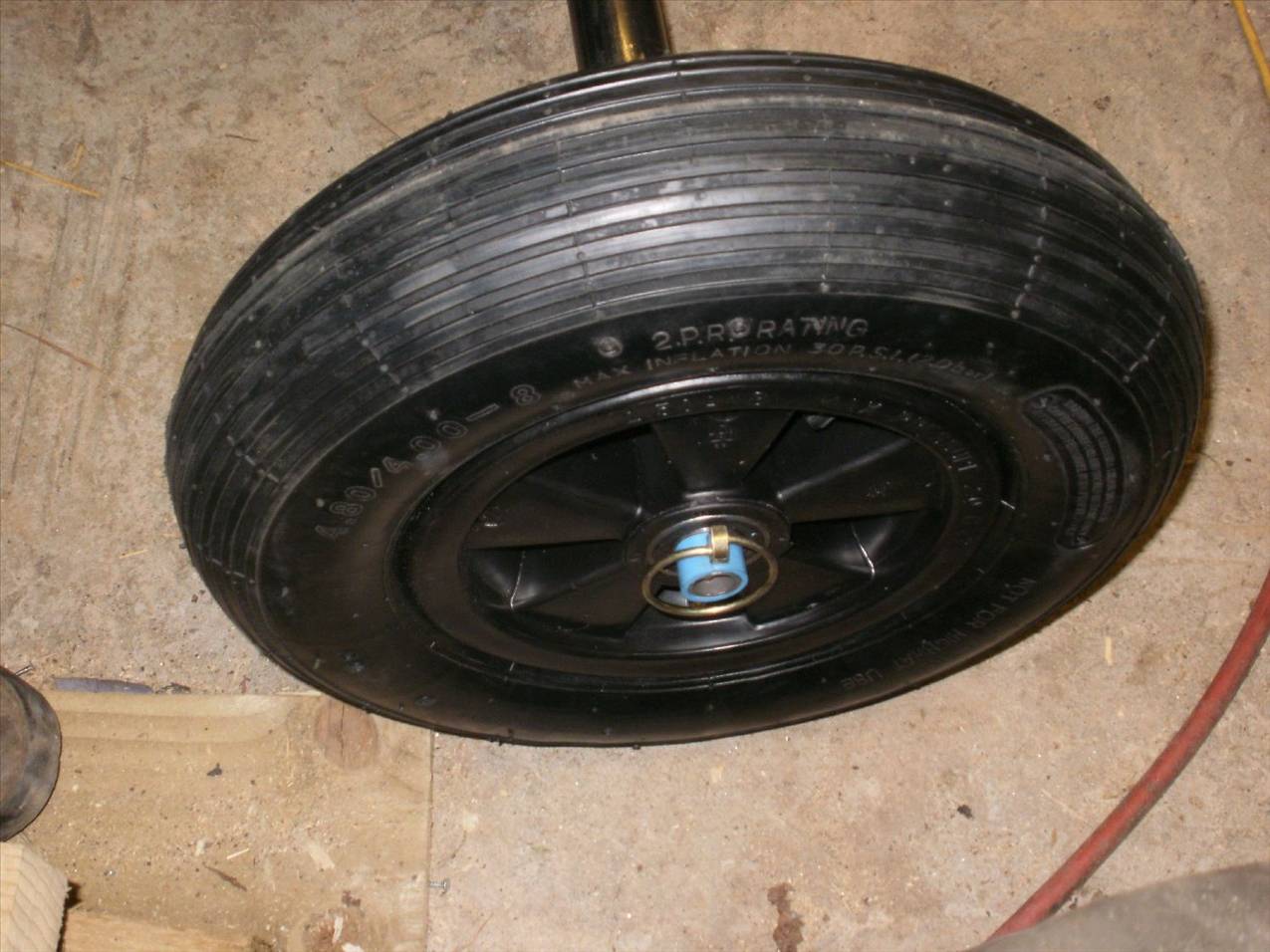

A simple lynch pin to hold the wheel on and an even simpler piece of alcathene water pipe for wheel spacers, they even match my colour scheme.

IPKSA - why change something that works? although the only thing about this type of steering geometry is that there is no self centering, its a pain to push along, raising the front end and pulling is the only option. There is also a little bit of under steer at speed.




Seat on and chassis bracing on, only temporary seat cover, I needed somewhere to sit and ponder over mast and rigging assemblies!

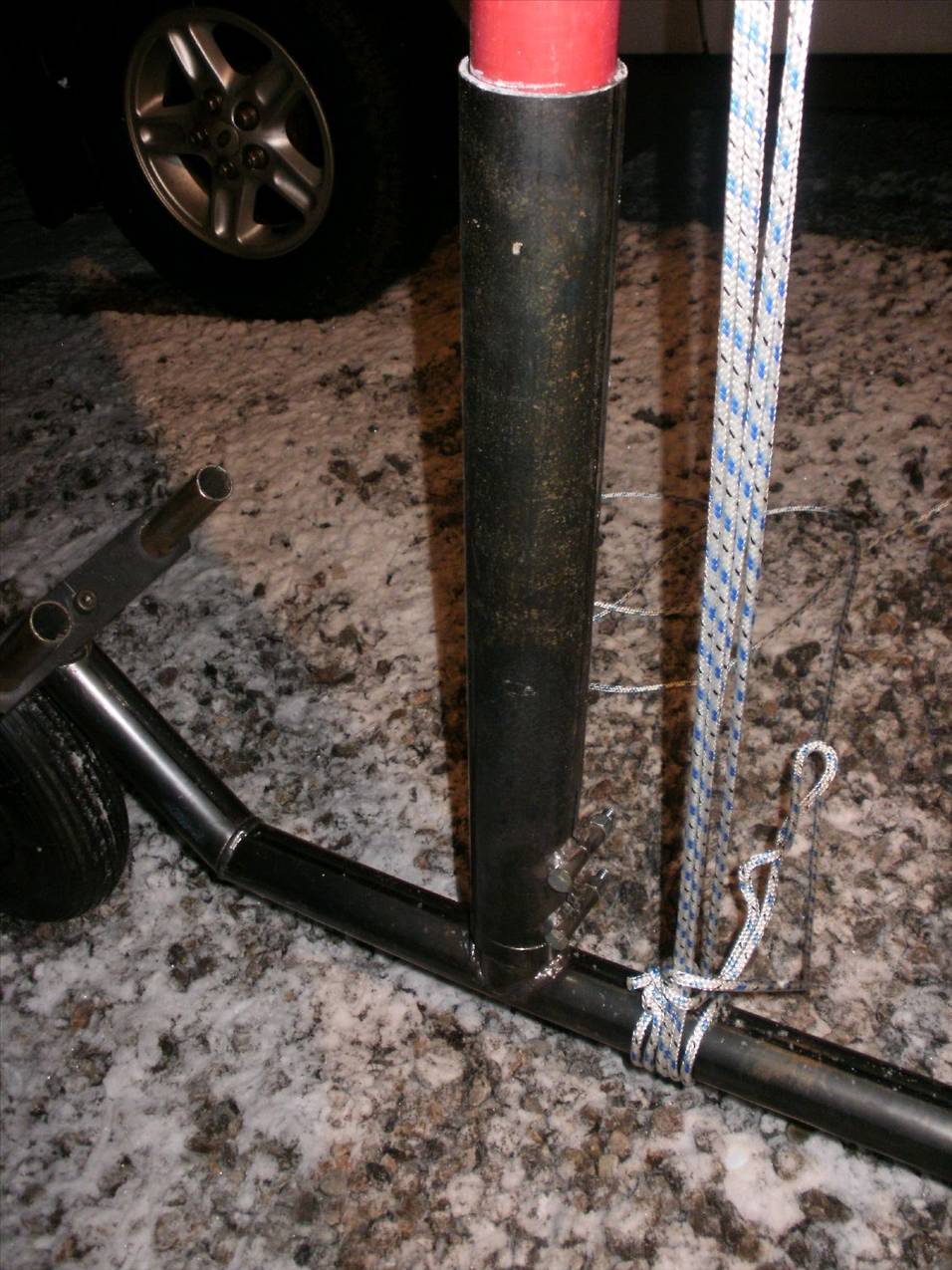

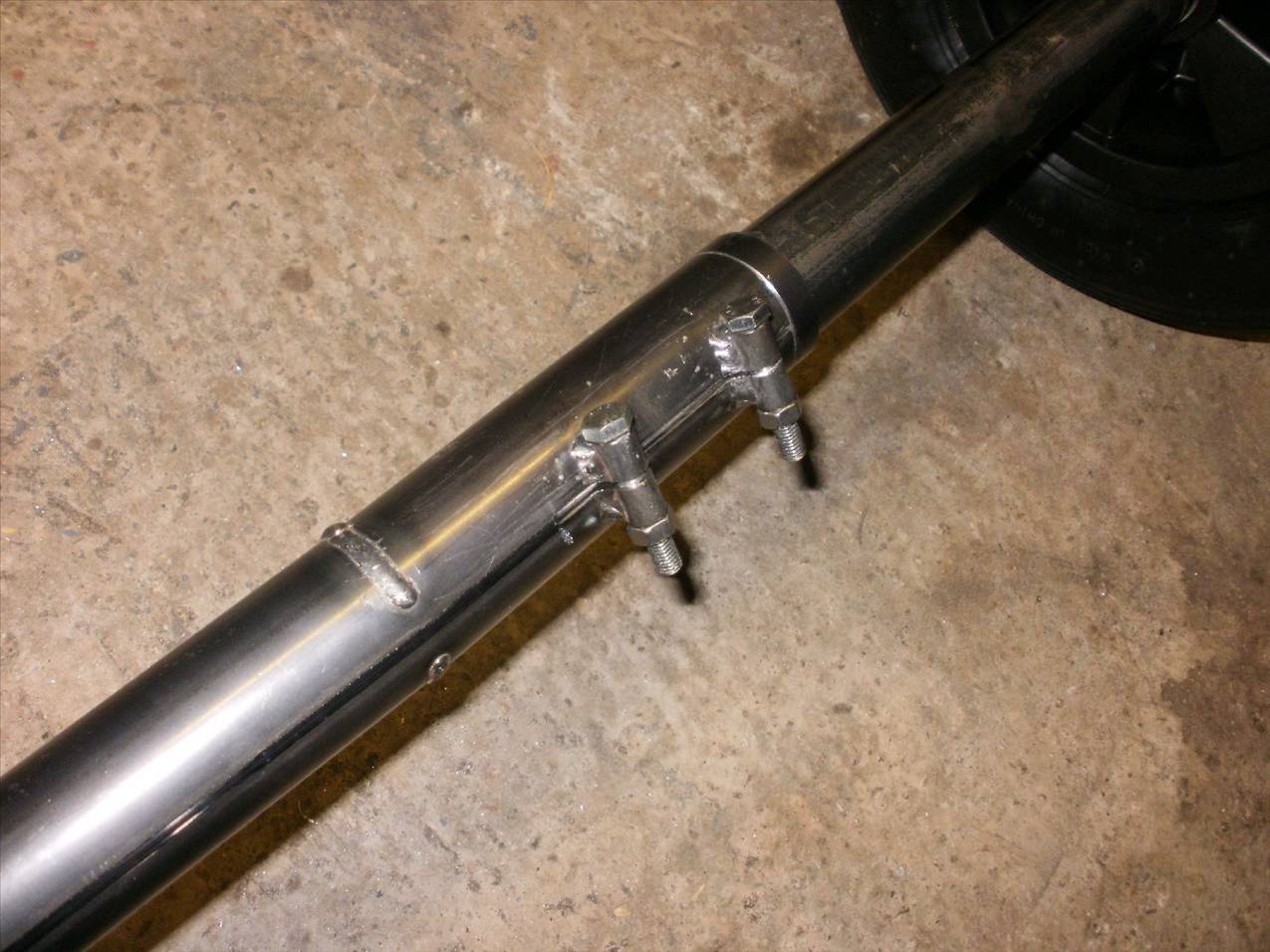

Mast foot attached with the pinch bolt method same as rear axle, fitted a stop inside about 250mm down from the top for the mast to sit on, the mouth was later flared. 10 deg rake. Anybody in the Highland region looking for a good metal stockist, I used B&M Steel in Inverness, they only sell stock lengths but at a reasonable price. Therefore I have enough steel left for the next two projects!




Some Scottish weather never held me up, The uncut sail on, its a Tushingham 4.2m2 I unpicked the mast sleeve, cut off some of the luff curve and attached it back on with double sided tape, Then I broke the wifes sewing machine! A local tarp specialist charged me a fortune to finish the job! gutted! £70 for only 8m of sewing? We have a saying in Scotland, "ripping off gypsy b*#@&£d"

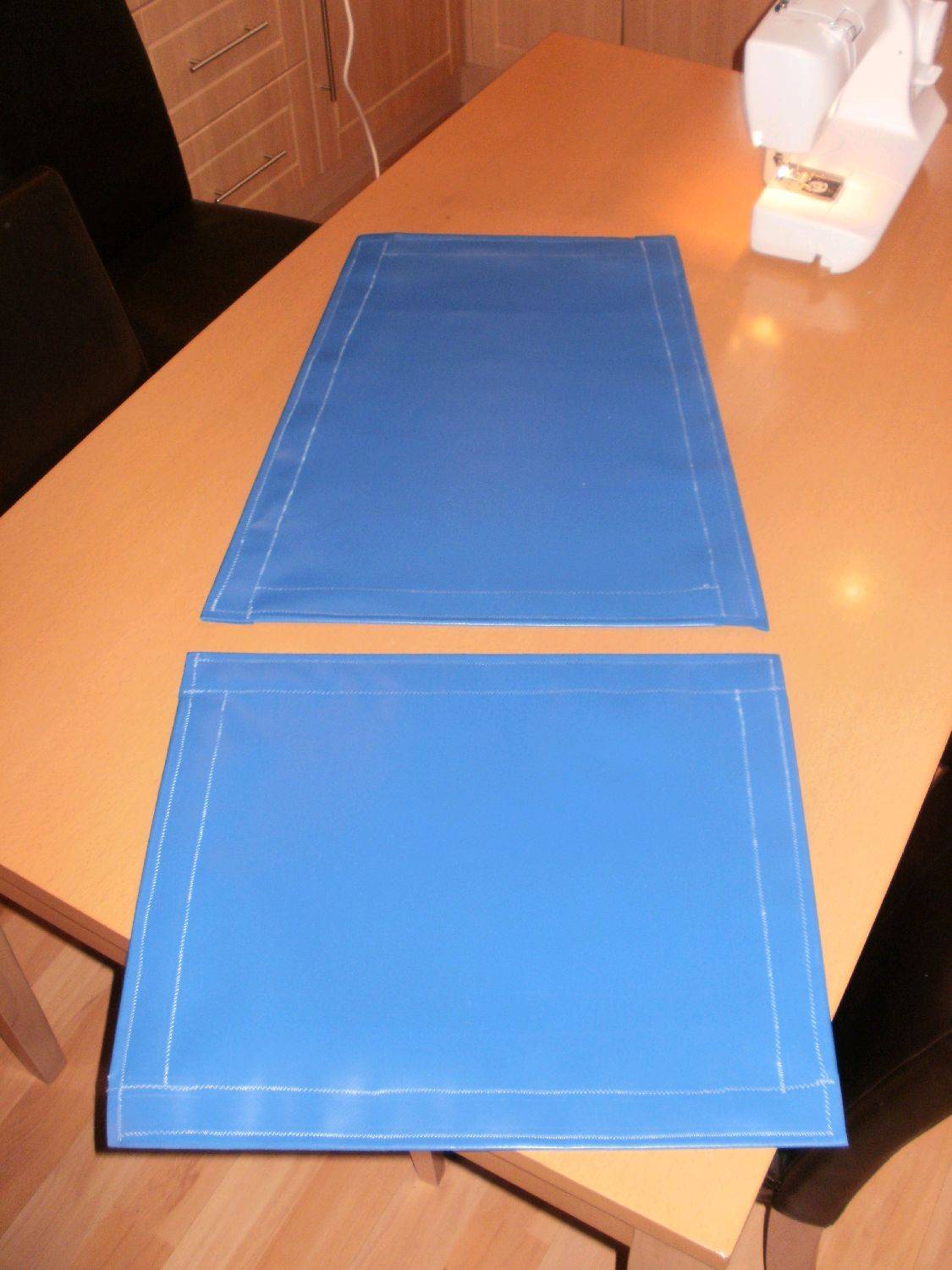

Sewing machine fixed! Seat cover made from reinforced polyamide (I think?) Punched some eyelets around the perimeter and attached with some cord, just like a trampoline but without the bounce!.





Rigging on, this Dolphin sail was made from lighter cloth so I was able to modify it myself, its about 4.5 m2 after the cutting. I added a single batton to hold its shape. The boom is the same 1" tubing from the forks, A rowlock pinch clamped into the end to allow replacing if needed, a couple of anchor loops for the sail carabiners to attach, a stop ring to prevent the rigging sliding down the boom and last but not least a small lumi flag to stop people walking into the end of it!




My son enjoying the 20 knots available that day at Dornoch beach.

Well thats it folks, I'm about £3oo light and put in about 20ish hours graft, not too shabby if you compare that to the cost of a Blowkart.
I have some other action shots which I will dig out and post as soon as I can.
I have also started the Mk2 version, Seat redesign, wheel change and rigging changes, but kept the chassis design 90%ish, I will keep you all informed.

Thanks for looking.
