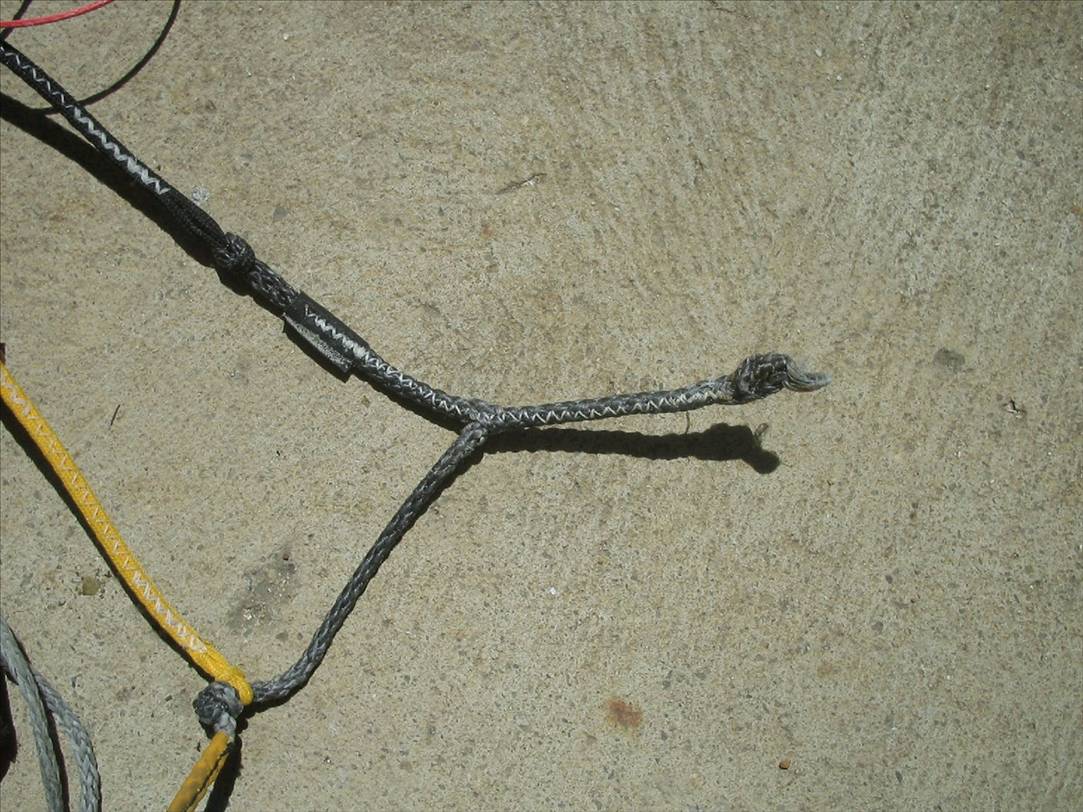

Hi, my cab front lines snapped yesterday. Just where the two Front lines from the kite join each other and become thicker braid with a small eye . On the dangly stuff that was left connected to my bar i have got a metal cleat. Somehow there is a connection from the metal cleat to the thicker braid, but it dissapeared in the bang.
I am looking online for some pictures of the part that must have broke. Guess it may have been some kind of loop of connecting line. But was wondering if anyone knows what part it is and if anyone has make a new connection between the cleat and the front lines??
Any help would be appreciated as i would like to be back on the water asap

set it up with pro kit no swivel and way better overall feel

ah ok, so the swivel has snapped, how does it connect to the front lines which have an eye in them? I cant find any illustrations online. MAy need to do some more research

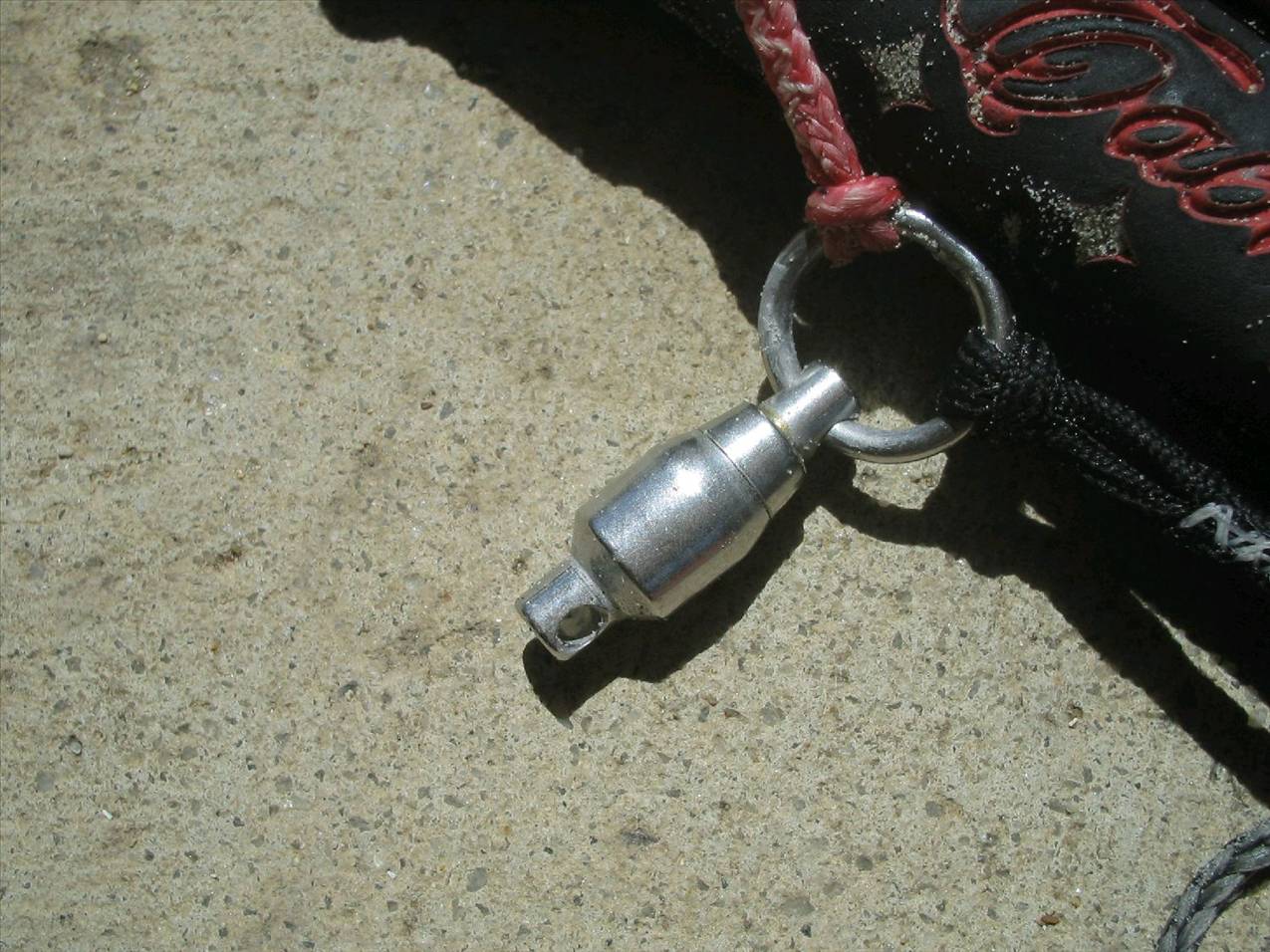

Yeah as i guessed the top ring for the swivel is missing. Probably jammed with sand, it looks coroded from your picture.
My mate got the same result while attempting triple back roll kite loop transitions.
Get the spare part as mentioned. can be ordered from a cabrinha dealer.
Cost me $18 on sunday
1. lay your lines out
2. The red line is the Ids landing line, remove the ring from the retention pin on the chicken loop, then remove the ring(slip line over the ring ) feed the line though the red part of the chicken loop, through the bar centre hole. through the top triangle and undo the larks head loop at the swivel.
3. Remove the black line which connects the centre line from above the Centre line Adjustment Strap (CAS).
4. Connect the new swivel in reverse black line first, then red ids line, feed ids line through top triangle, through bar centre hole, through hole in quick release, re-attach ids landing line ring and finally re-attach ids ring to pin.

HALF WAY THERE

5. Remove the yellow line (left hand centre line) from the y shaped grey line by undoing the larks head knot
6. Attach the grey line 'y' to the top of the new swivel by feeding the loop on the grey line and black centre line through the swivel loop.
7. Re-attach the yellow front line to the grey "y" line
8. Done!!!

The new part is much better there is no gap to allow sand in to jam it. If you have any further problems fitting it drop me a PM with phone number and i'll call and talk you through it.
Cheers Todd
