LE bladder torn, is it repairable?

Enable JavaScript to get the best experience.

Search Subscribed Active Create new topic

> 10 years ago

General Gear Reviews Newbies The Hookup Foiling Lost & Found WA NSW QLD SA VIC TAS

Freddofrog

522 posts

Freddofrog

WA, 522 posts

6 Mar 2011 10:44am

Hi all

Is this repairable with Tear Aid or should I just replace the whole bladder? The top and bottom tears come to 15mm of the outside edge of the seam. This would mean there is 15mm for the patch to adhere on the edges. Is that enough?

I will get Neil at Hold the Lines to repair the LE rip. Does he also do the bladder or is this easy enough for me to do myself?

Cheers
Shane

Kitepower Australia

NSW

4382 posts

Kitepower Australia

NSW, 4382 posts

6 Mar 2011 2:09pm

Yeah thats definitely repairable, you can send it to me if you want. We would asess it once it gets here as to what method we would use.
Probable cost around 60-70 = postage and will be as good as a new bladder, actually stronger in the repaired area!

pi22api22a

150 posts

pi22api22a

WA, 150 posts

6 Mar 2011 4:28pm

Repair it yourself with couple big bits of tear aid,, easy

Just make a straight cut about 20cm away from the tear, about 5cm in length. Then pull the bladder through the hole (inverting it) and patch with tear aid. Lastly pull back through the hole and seal it up with more tear aid.

Yep 15mm should be fine, you could even overlap a bit to be sure.

Done it before and never leaks again,, good luck
dave

Kitepower Australia

NSW

4382 posts

Kitepower Australia

NSW, 4382 posts

6 Mar 2011 10:16pm

pi22api22a said...

Repair it yourself with couple big bits of tear aid,, easy

Just make a straight cut about 20cm away from the tear, about 5cm in length. Then pull the bladder through the hole (inverting it) and patch with tear aid. Lastly pull back through the hole and seal it up with more tear aid.

Yep 15mm should be fine, you could even overlap a bit to be sure.

Done it before and never leaks again,, good luck
dave

People can do this repair themselves for sure, but if they screw up, then the bladder is often ruined and new one needs to be purchased.

Why are you inverting the bladder ??
Do you think the tear aid needs to be put on the inside of the bladder?

After doing hundreds, possibly well over a thousand repairs on bladders we have found that tear aid does not need to be placed on the inside of the bladder.

SaveTheWhales

1908 posts

SaveTheWhales

WA, 1908 posts

7 Mar 2011 8:47am

Cane Toad

Take it to John at S.O.S in fremantle - they do excellent bladder repairs there and take your kite to Neil - Hold the Lines while its being done.

When you 'do it yourself' repair, just make sure you think about Nukeing days in wave sets or offshore at Woodies

[}:)]

Cheers

Freddofrog

522 posts

Freddofrog

WA, 522 posts

7 Mar 2011 9:03pm

Cheers guys. Neil is closer so I'll take it to him tomorrow and see what he says.

pi22api22a

150 posts

pi22api22a

WA, 150 posts

8 Mar 2011 6:47pm

Did a repair a while back in a similar spot, by inverting the bladder I was able to get a clean patch done (with a bigger piece than if I just put a patch on the outside), also put a smaller one on the outside to be sure... Overkill I know but its tough as nails..

An easy DIY fix,,,, practice on an old bladder first if your not sure...

And John at SOS sells big pieces of tearid.... good fella

Freddofrog

522 posts

Freddofrog

WA, 522 posts

8 Mar 2011 9:22pm

Went into the new-ish AKS store in Scarborough to buy the Tear Aid to diy but Darren fixed it on the spot. Admittedly I'm yet to try it out as it's currently with Neil getting the LE sown but it looks pretty bomb proof. Should be ready for tomorrow's 23knots Freo doctor

AKSonline

925 posts

AKSonline

WA, 925 posts

8 Mar 2011 11:20pm

Hi Freddofrog,

Thanks for dropping in today. I can absolutely guarantee that ....................... Neil will have done a shmicko job.

Lets cross our fingers and hope for the best with my bladder repair.

I'll throw up a pic of my handiwork tomorrow when I get the pics off the camera in the morning.

Good luck with it

AKSonline

925 posts

AKSonline

WA, 925 posts

9 Mar 2011 6:03pm

Hi Peeps,

Here are the picks of the repair.

Lay the bladder out without wrinkles and tape it in position.

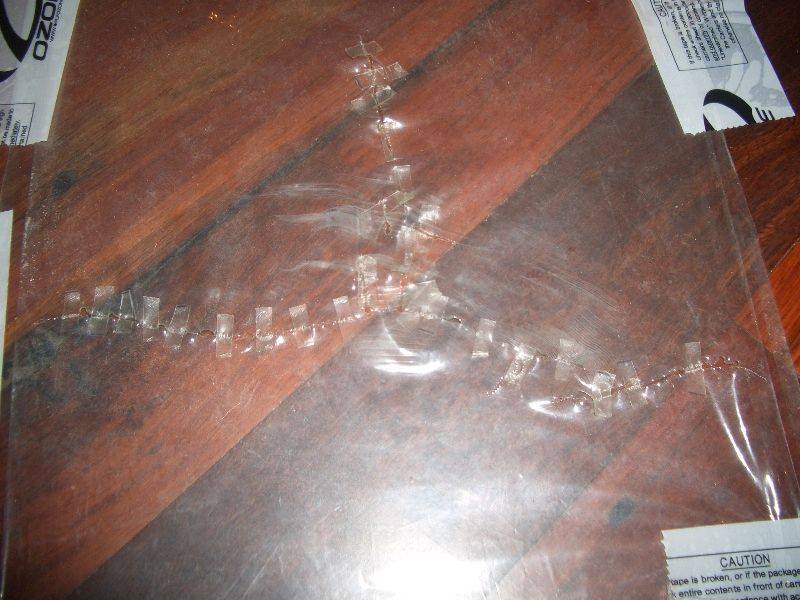

Second part of the job is to "stitch" the bladder into position with 3mm x 10mm "stitches". This holds it together whilst placing the Tear-Aid. Due to the size of the blowout, I used 6" wide Tear-Aid on the roll.

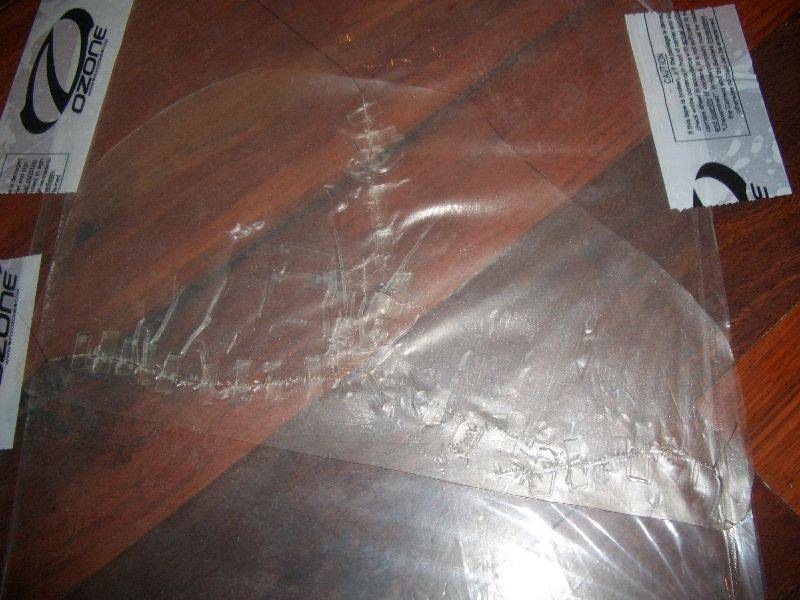

Lastly, a large piece of Tear Aid was applied very carefully without wrinkles creating capillary leaks. When applying large sections of Tear-aid, work around the puitside edge being careful not to allow wrinkles to form.

I also added a couple of re-inforcing patches to the bits where the tears go close to the edge, just to be sure. I'm fairly happy with it.

DM

Freddofrog

522 posts

Freddofrog

WA, 522 posts

9 Mar 2011 10:08pm

Woo hoo, so far so good! Had a bit of an twisted bladder issue after the LE was sown but under Neil's expert guidance (2 people grab the ends of the LE and shake it hard) all was good. Was only out for an hour and was very careful not to crash it hard. Not sure if that is long enough to check for small leaks. Probably have a longer session Thursday and we'll see but it's all looking sweet so far.
