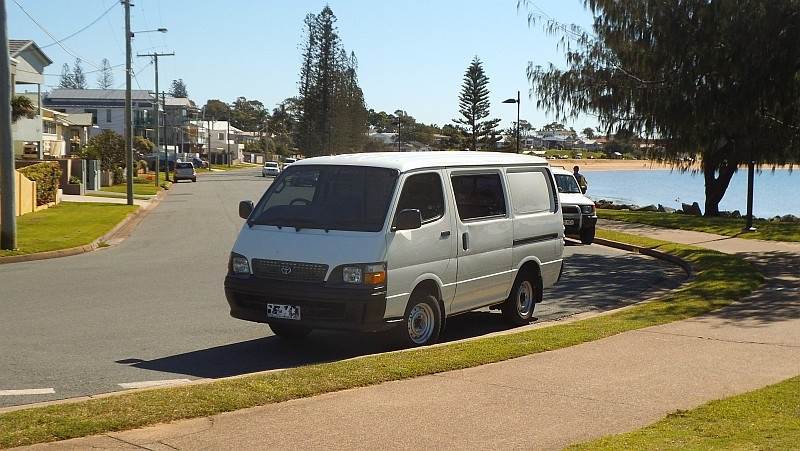

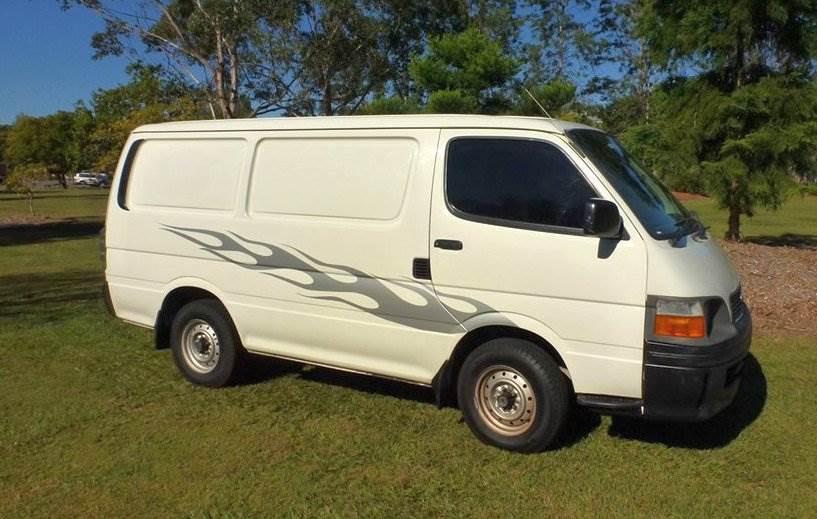

You may remember this:
Which became this:

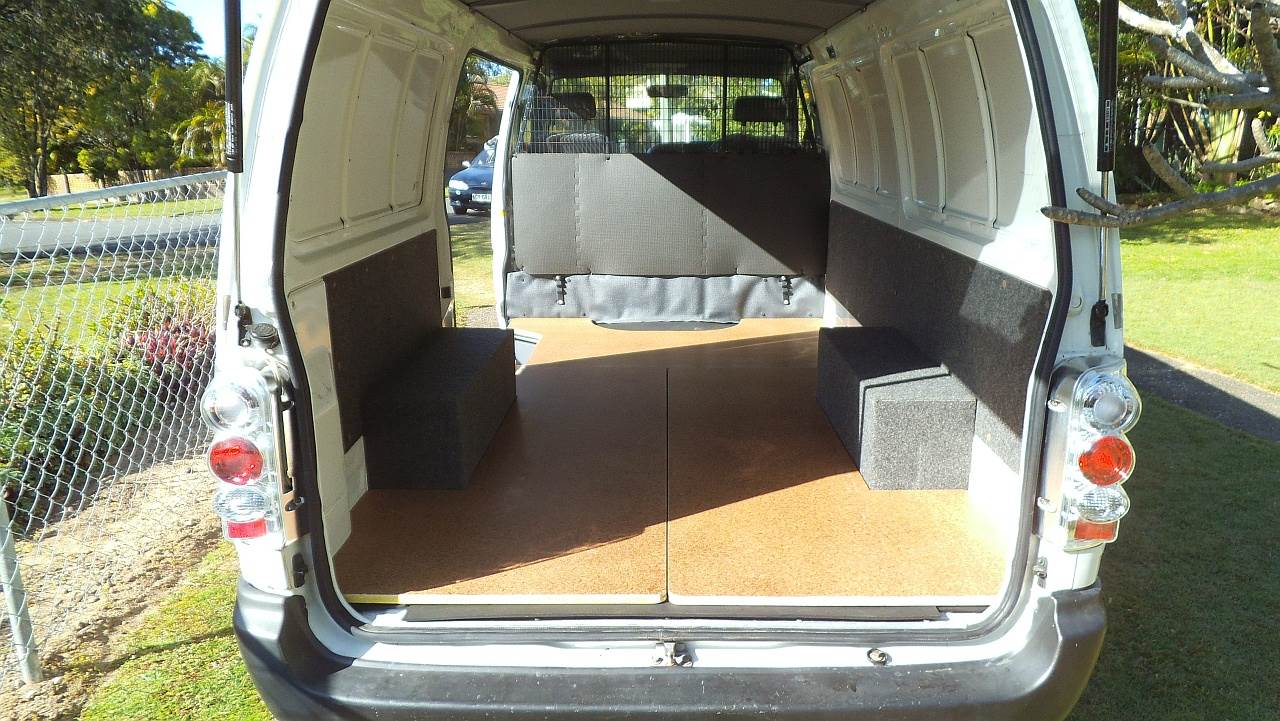

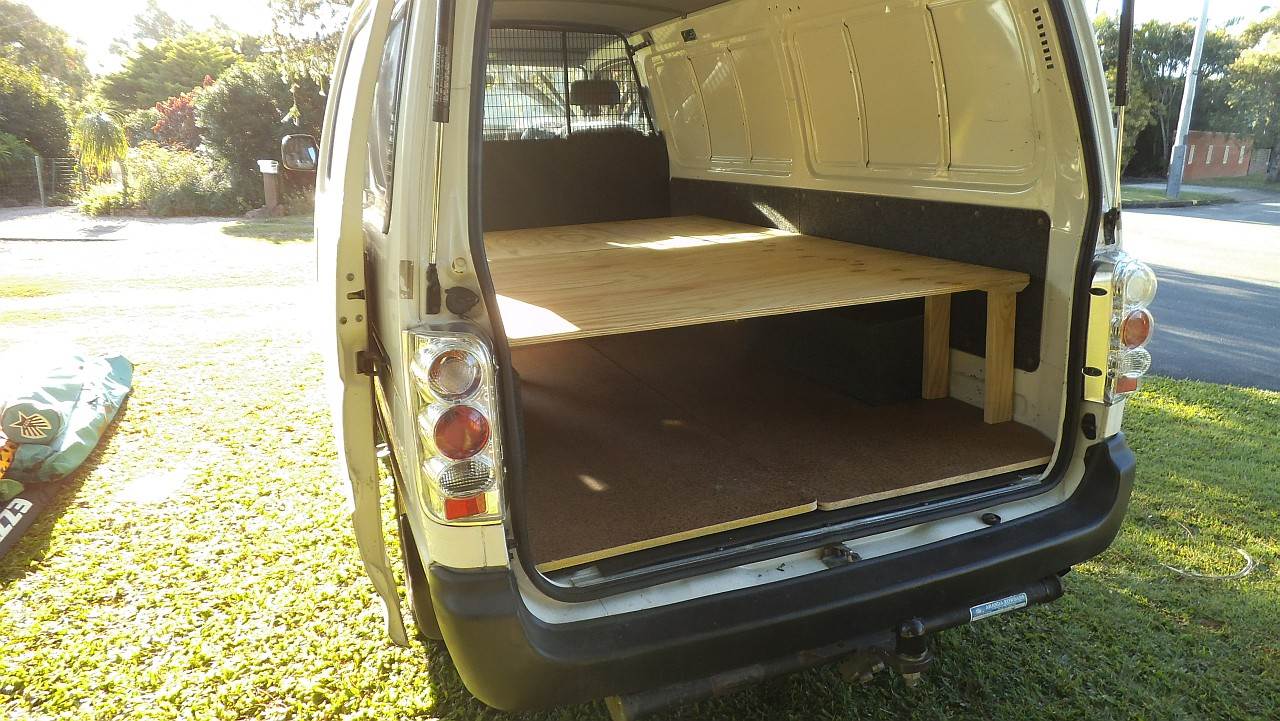

Then we added this:

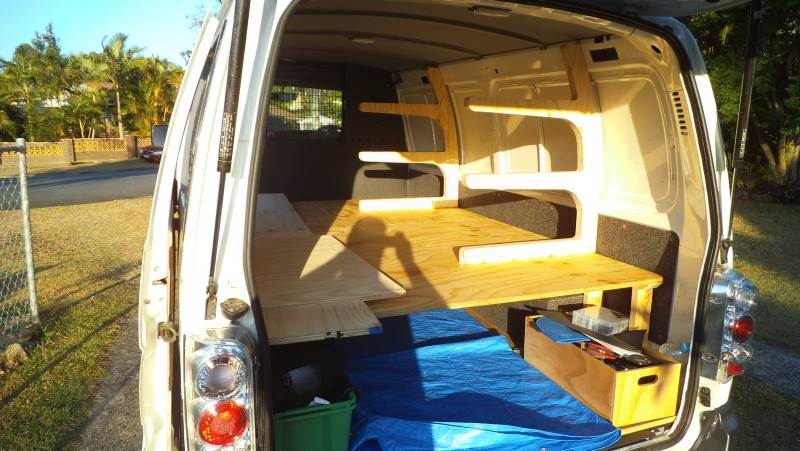

And then this:

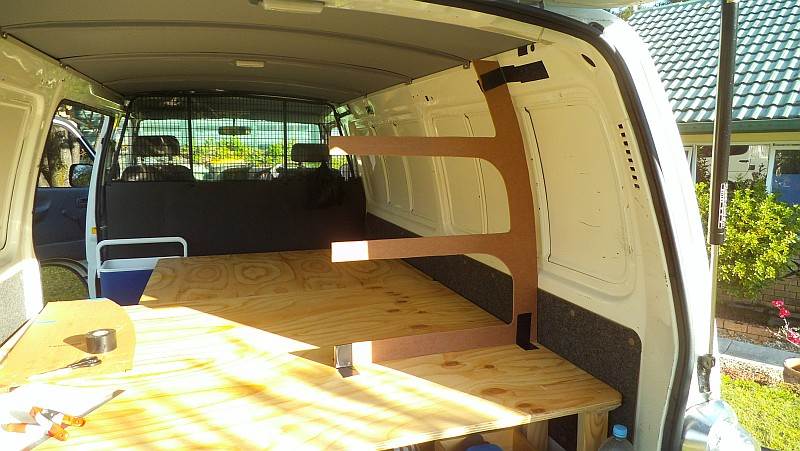

And now I'm working on this (masonite pattern for 34mm ply final product):

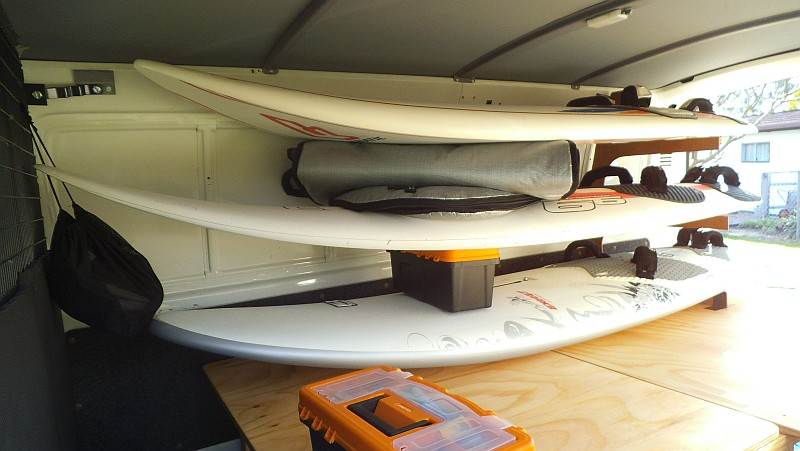

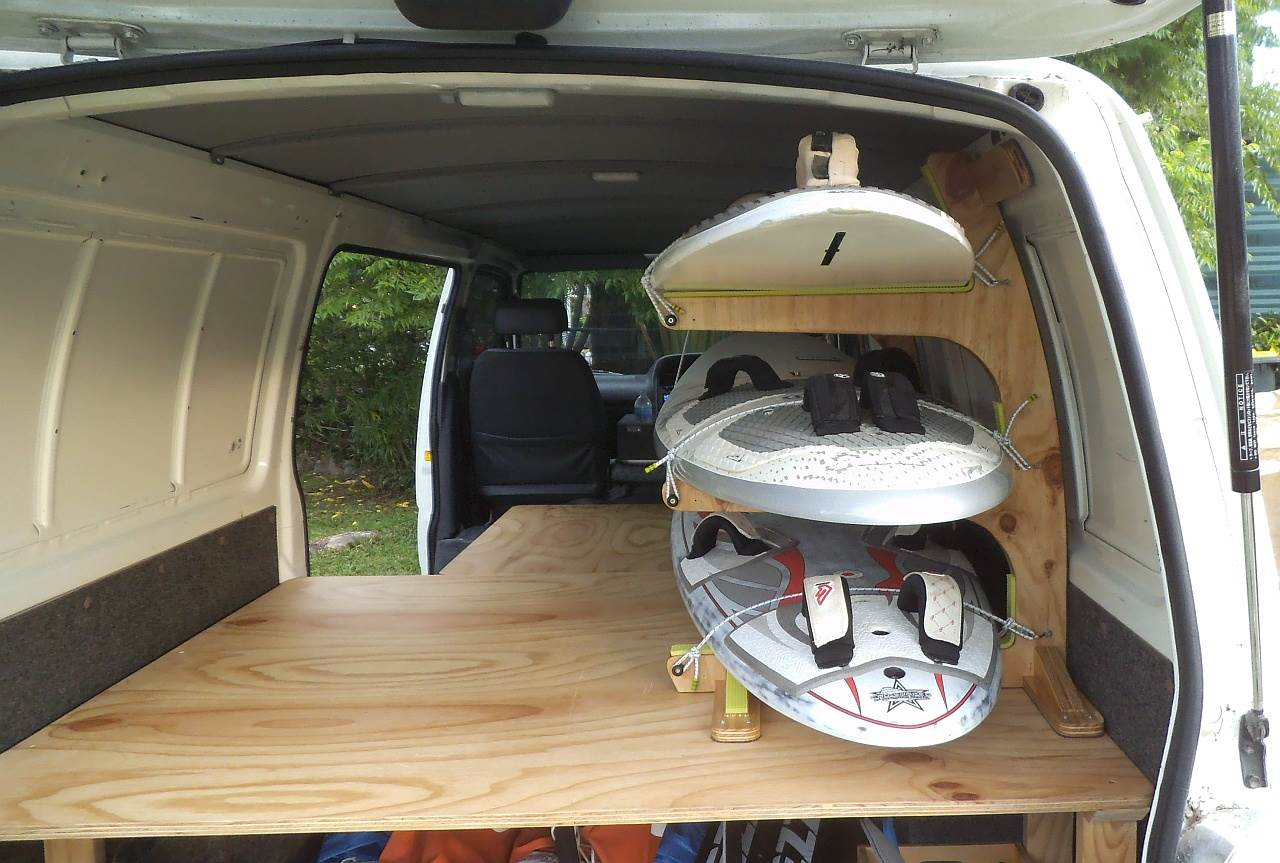

That's so sails, masts booms gear etc. go below - boards and sleeping space up top.
looks good.
flames and rice-boy tail lights too! you are all set for your mid life crisis

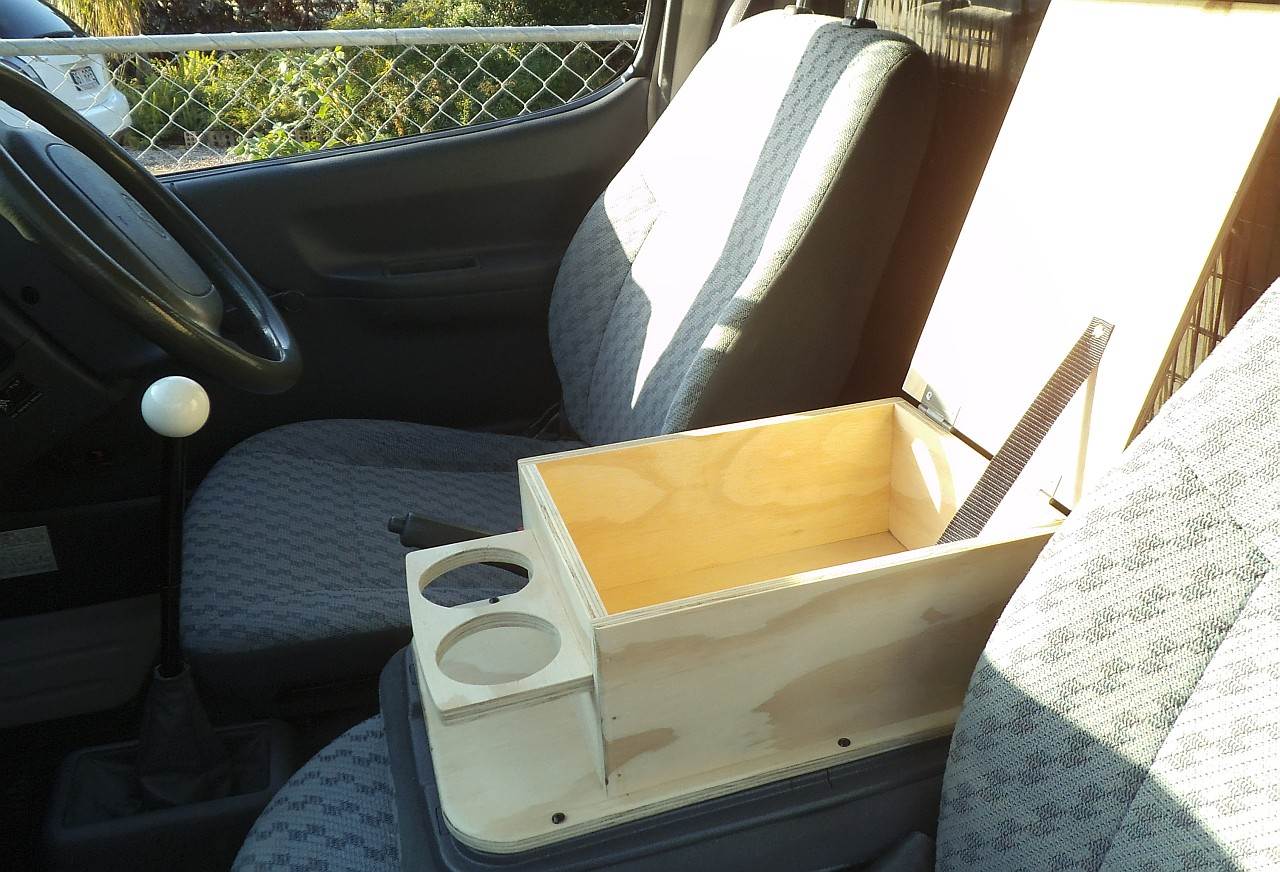

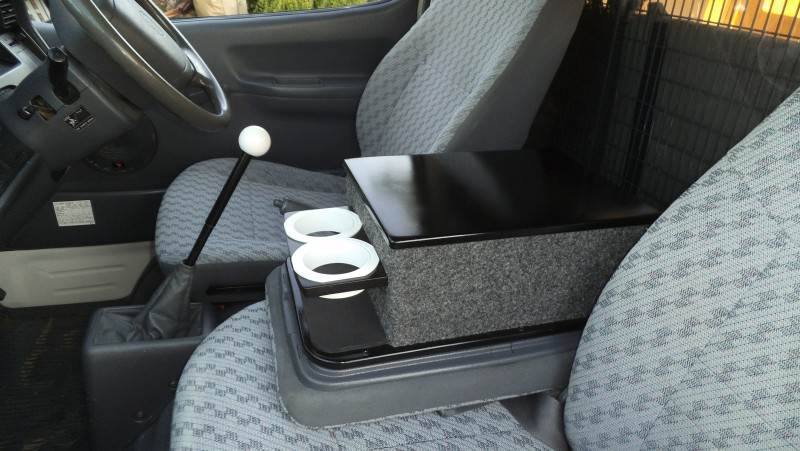

So the centre console box thing in these old Hiaces is rubbish. It incorporates drink holder into the lid. Flip the lid = coke zero all over the cabin. To fix this shocking design fault I lashed this together:
Note also the gear lever extension and custom gear knob (found at bunnings).
A bit of marine carpet over the console/drink holder would finish it off .... Coming along nicely
Select to expand quoteCassa said..
So, where are the 3 backpackers going to sit?
Perhaps lay one ontop of each of the boards?
Nice looking setup though its a shame to lose the flames.
Select to expand quoteikw777 said..
That's so sails, masts booms gear etc. go below - boards and sleeping space up top.
What about the extra floor then? (pics 3 and 4)
Select to expand quoteikw777 said..
That's so sails, masts booms gear etc. go below - boards and sleeping space up top.
actually I was referring to the one just under the bottom board.
Select to expand quoteMark _australia said..
Cup holders are too big if you get sponsored by Redbull
Easy fixed... Get the jumbo RedBull cans, or just glue in some foam or timber doughnuts to hold the small cans... Personally, I would by-pass RedBull, and chase down someone like Coopers!

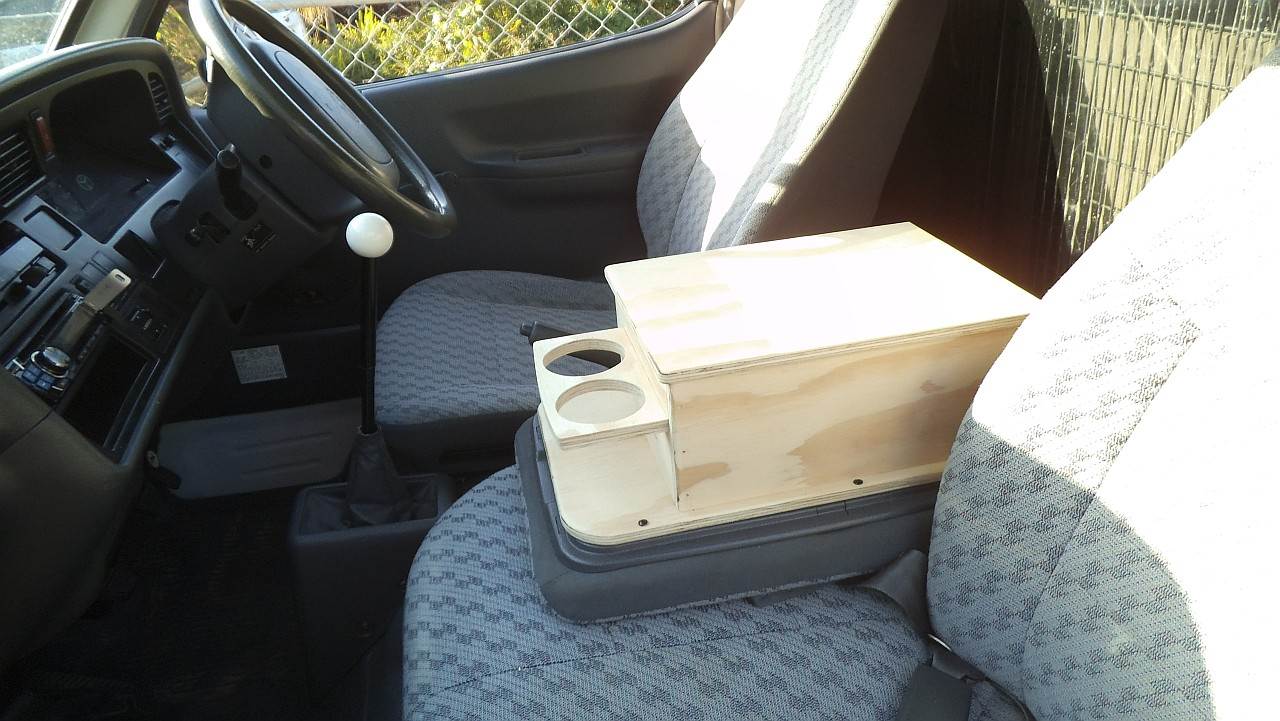

Some more work was done today. Finished off the centre box:

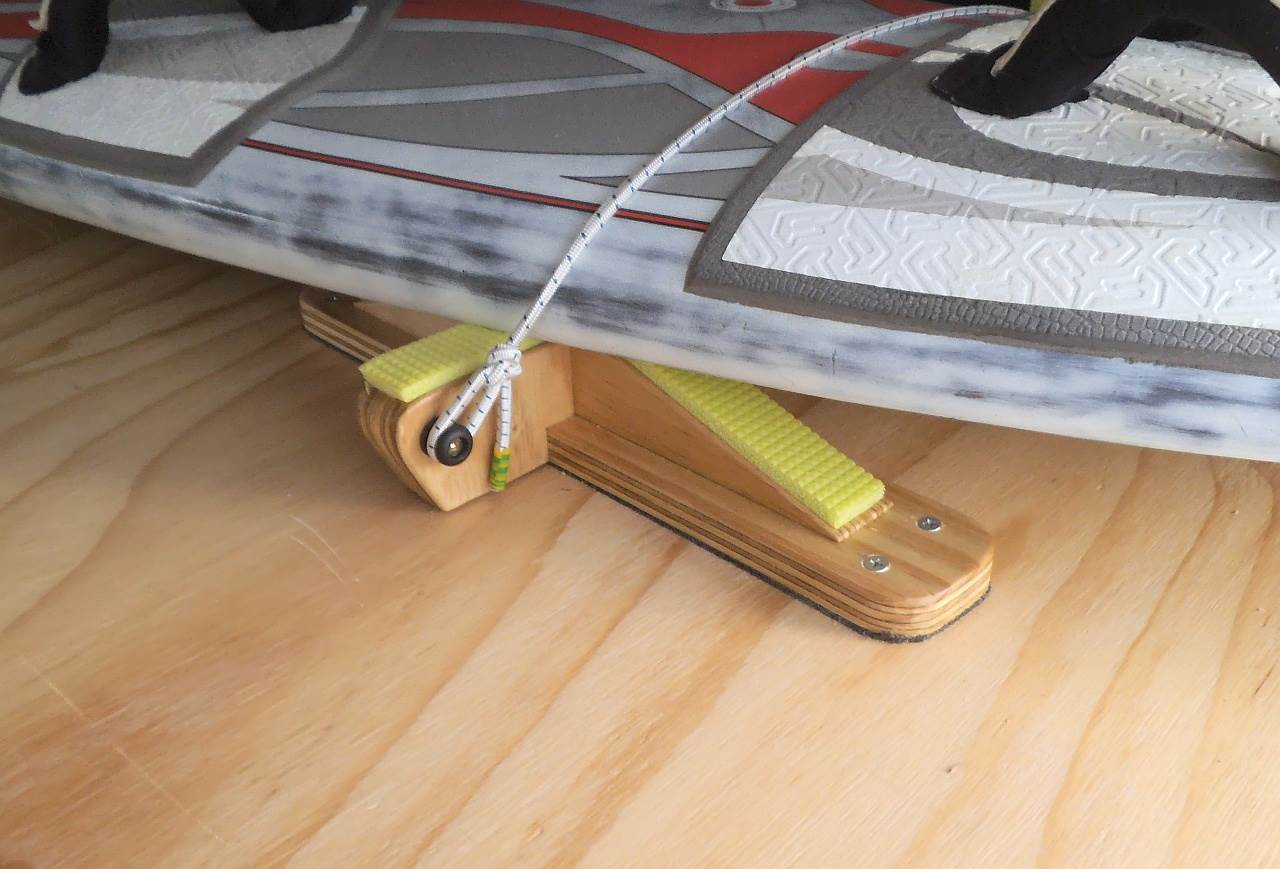

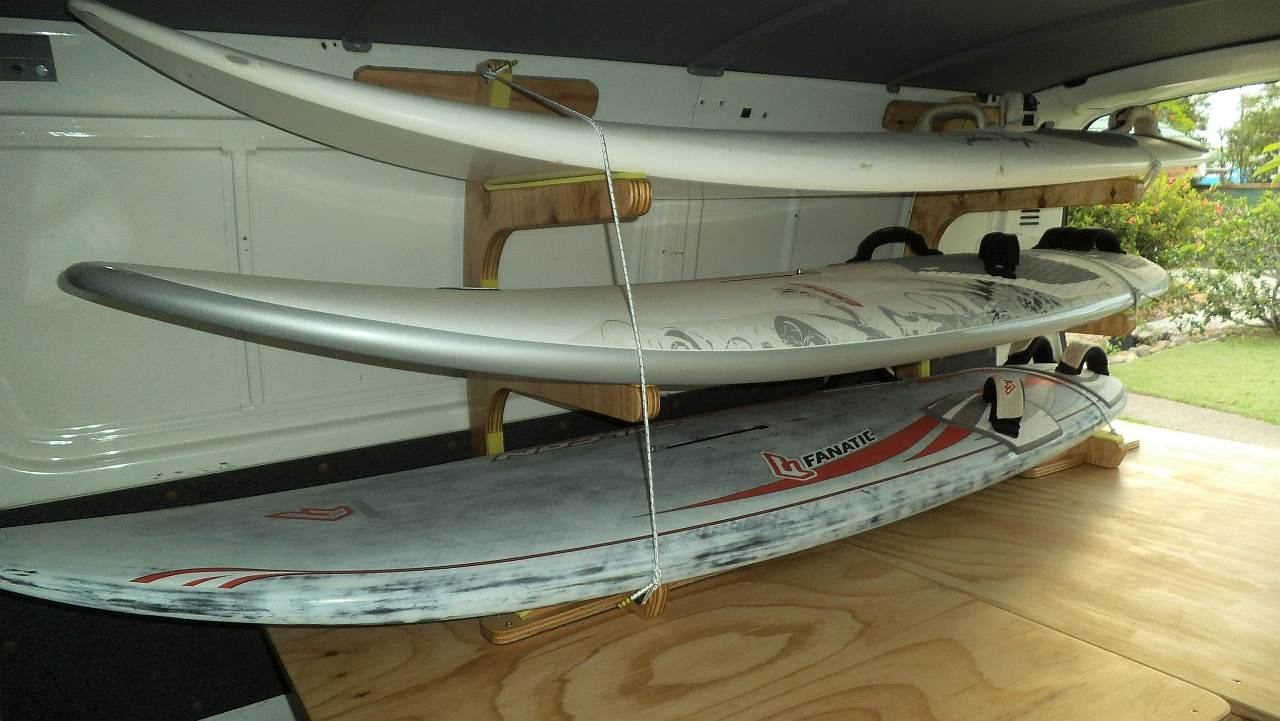

And did some more work on my rack system:
