A friend of me has developed a app for watersporters. Main goal is to have a "learning" app that will help watersporters to make part of the community, and to know where / when / how other watersporters plan their sessions. As we did test it yet only in Belgium / Netherland, Feedback is highly appreciated !
His yt channel : www.youtube.com/@vince.outdoor
The app (Android / Apple) : spotconnectapp.vercel.app/

Greetings, Jan.

Flex2 said..
Hi Jan, awesome idea. I'm no expert in Onshape but appears everyone can 'look' at your design but can't download the STL to print or modify. I'm sure your intention was to share freely. Possibly some setting you need to change?Separately, what are the white rods you are using for the strap holders? Fiberglass? I've been using carbon rods. Which is best?

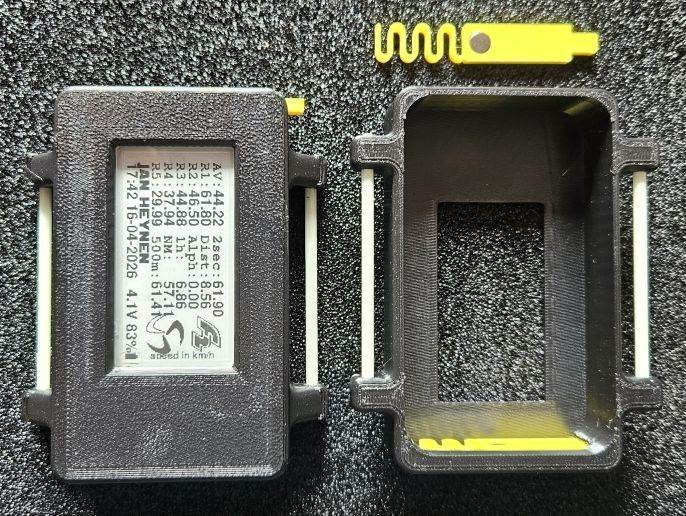

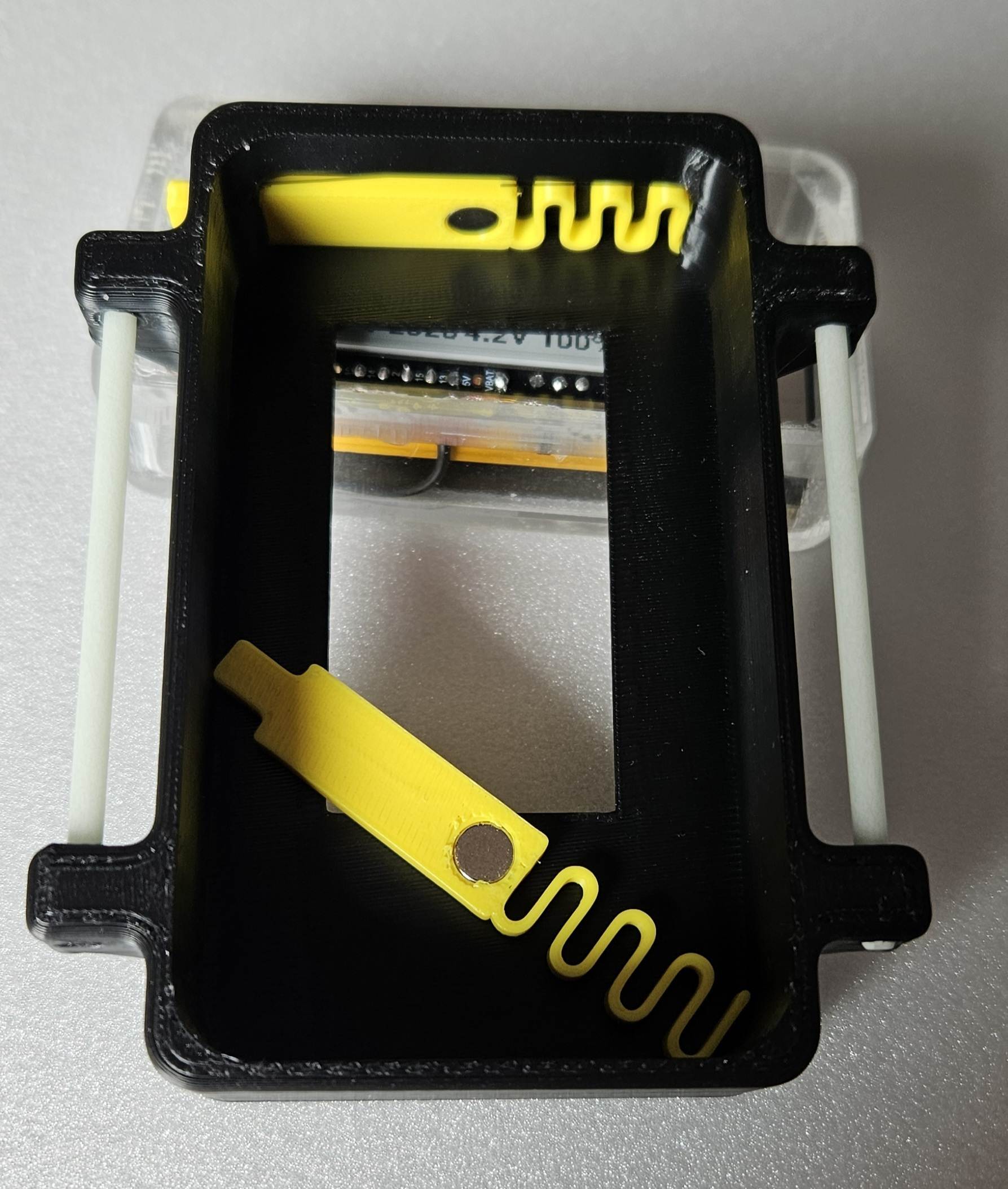

White rods are fiberglass, was laying around here (from an old kite). I think that both (fiber or carbon) are stronger then the 3D PETG housing, so both types can be used.
The link to the 3D files on onshape do need that you have a (free) onshape account. I made some stl files and set these on github :
github.com/RP6conrad/ESP-GPS-Logger/tree/master/3D_housing
The breakout board for the SD nand is also on github :
github.com/RP6conrad/ESP-GPS-Logger/tree/master/SD_nand_128MB_breakout_EasyEda
But if you plan to make changes, certainly try out the onshape account : the 3D housing is with lots of parameters to change it to your own ideas.

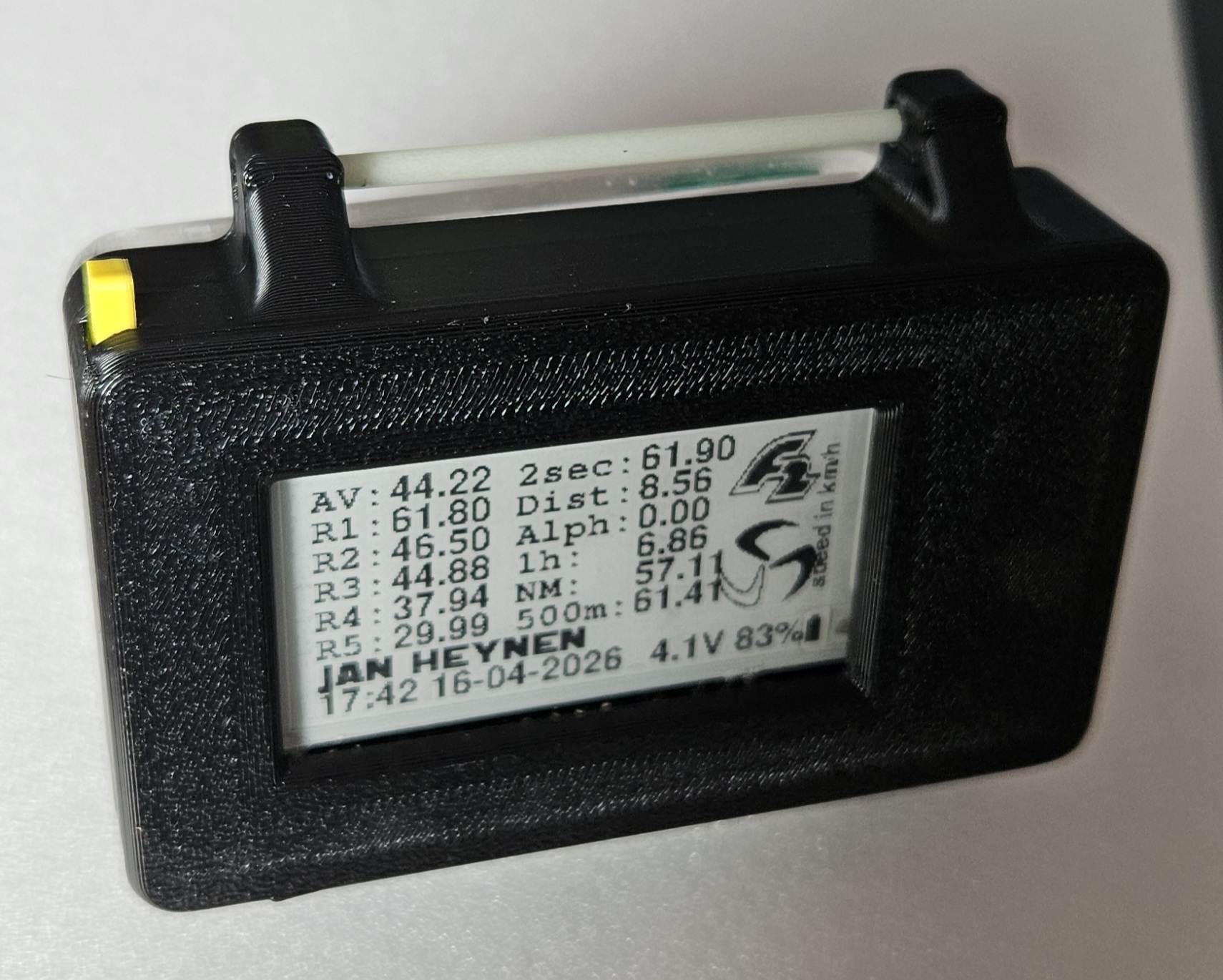

I was today on the water with 4 ESP-GPS new design, worked perfect !
Greetings, Jan.

Another vid about the ESP-GPS. This time about 3D design in Onshape (PMMA parts and PETG Casing), and printing the case on my Bambulab P2S printer.
3D design is public : cad.onshape.com/documents/a511908aaa4bc53df3b62f8d/w/f84be4db970c8f87e32cc9d8/e/14282a33f523fa3330552c2c
Greetings, Jan.

The inductive charger with Lipo output 4.2V comes with a small ferrite tape. This is no good if your lipo is positioned near the receiver coil ! A bigger ferrite shielding solves the issue !

Greetings, Jan.

The first water test of my diy GPS is a succes. My goal was to make a simple low budget GPS logger with a ESP32 as brain. Minimal solderskills are needed, as just the GPS has to be soldered to the right pins. Total budget is around 40?. Some technical details :
ESP32 board with e-paper display (Lilygo TTGO T5, 15$)
Beitian BN220 / BN280 gps (ublox M8n engine), 10$
Lipo 2000 mAh, with protection, 10$
Sealed case, 5$
A log rate of 10 Hz is possible, format UBX NAVPVT.
On my first water test, I had 2 units mounted on each boom side. The actual speed and the actual run is directly visible while surfing. The BN280 is the blue plot, BN220 the red plot. Number of sats was 16 - 20, logged@2 Hz. Fot who is interested, I am willing to share the SW (arduino IDE). Next test, I will log@10 Hz.
Greetings, Jan.
